On-Vehicle Repair

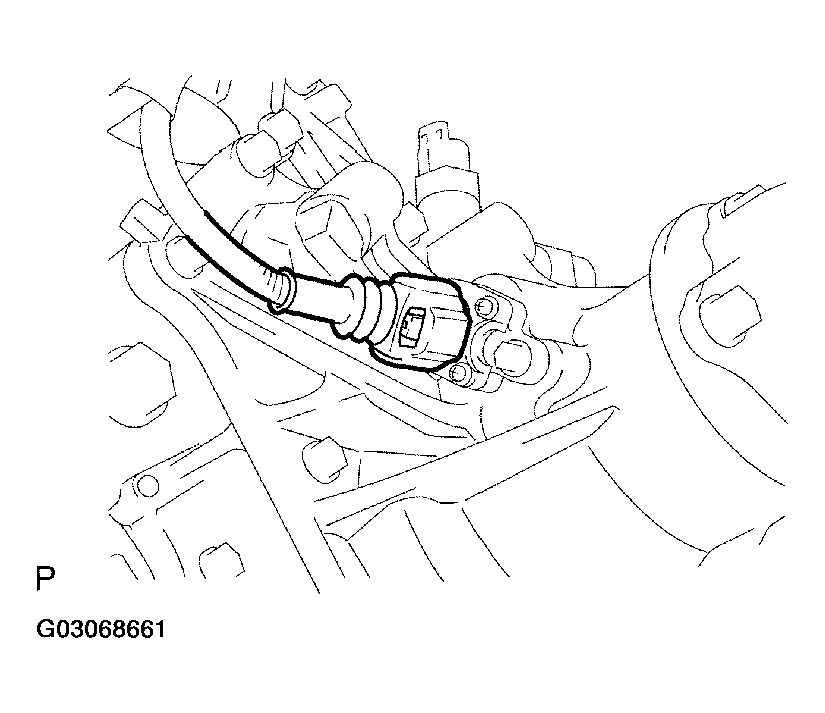

Remove the bolt and the No. 1 vehicle speed sensor.

1. Remove the O-ring from the speedometer driven gear assembly
2. Remove the clip and the speedometer driven gear from the speedometer driven gear sleeve.

1. Install the speedometer driven gear and the clip to the speedometer driven gear sleeve.
2. Coat a new O-ring with ATF.
3. Install the O-ring to the speedometer driven gear assembly.

Install the No. 1 vehicle speed sensor with the bolt.

Torque: 16 N.m (160 kgf.cm, 12 ft.lbf)

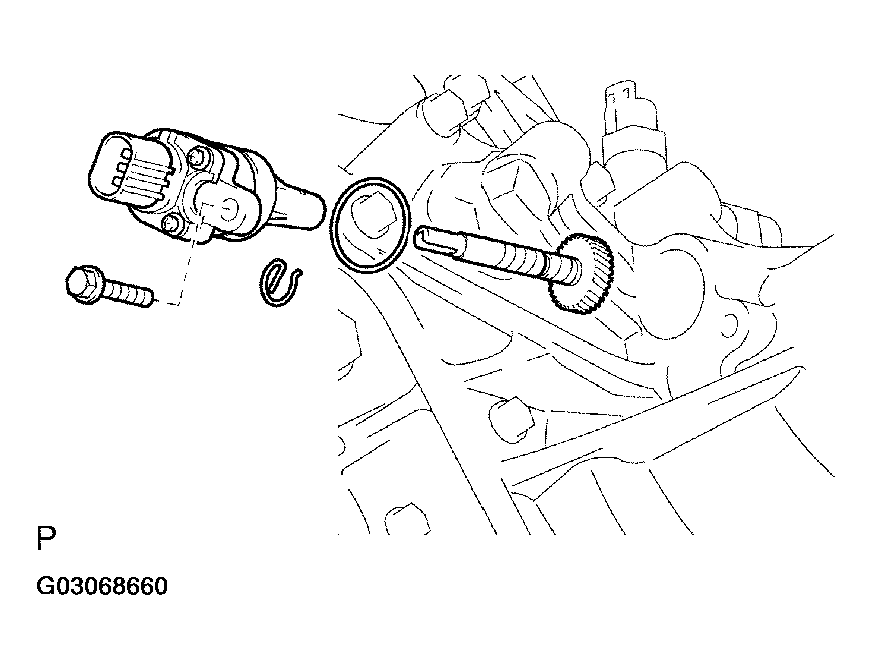

Fig 2: Removing Vehicle Speed Sensor

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 2 bolts, speed sensor NT and SP2.

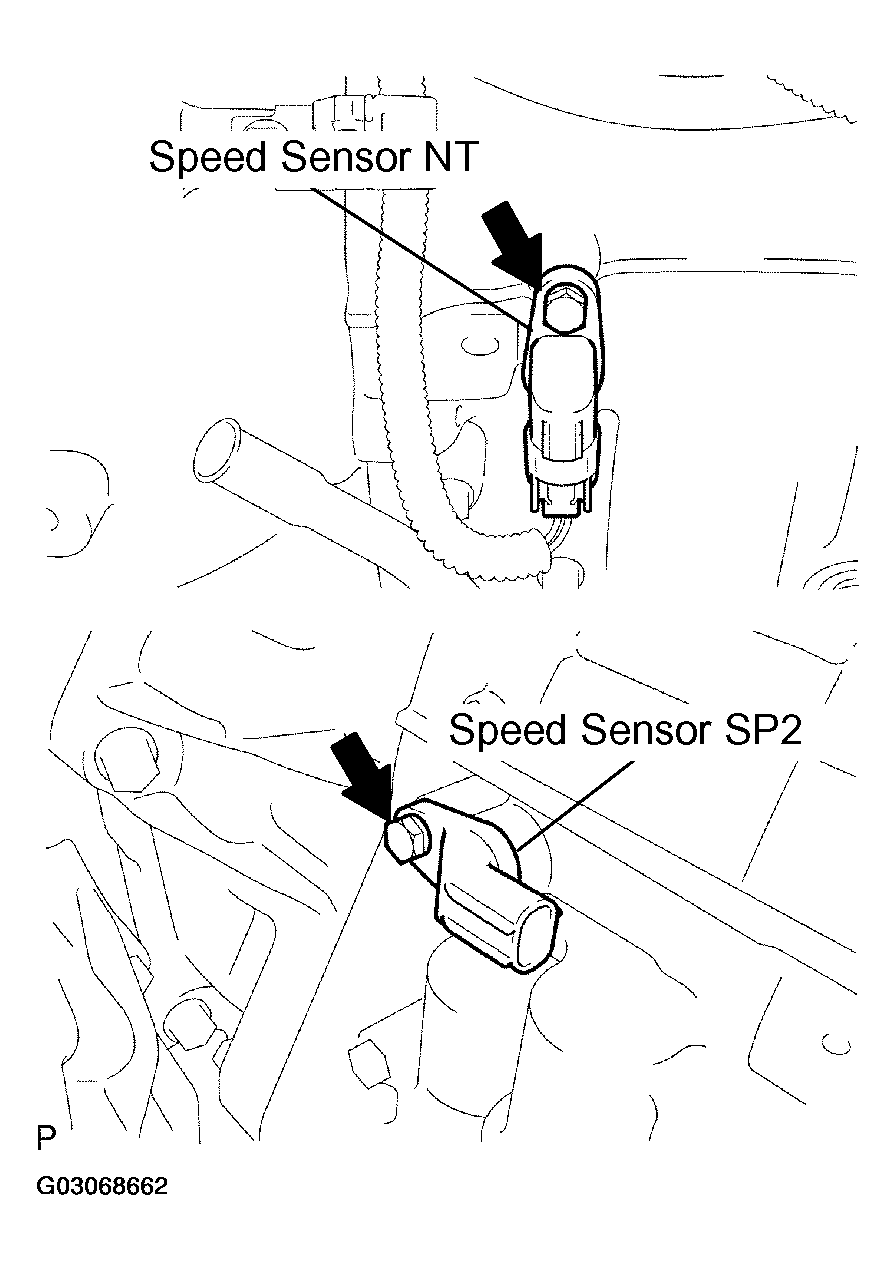

   Fig 4: Removing Bolts & Speed Sensor NT & SP2

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove 2 O-rings from the speed sensor NT and SP2.

1. Coat 2 new O-rings with ATF and install them to the speed sensor NT and SP2.
   Fig 5: Removing O-Rings

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

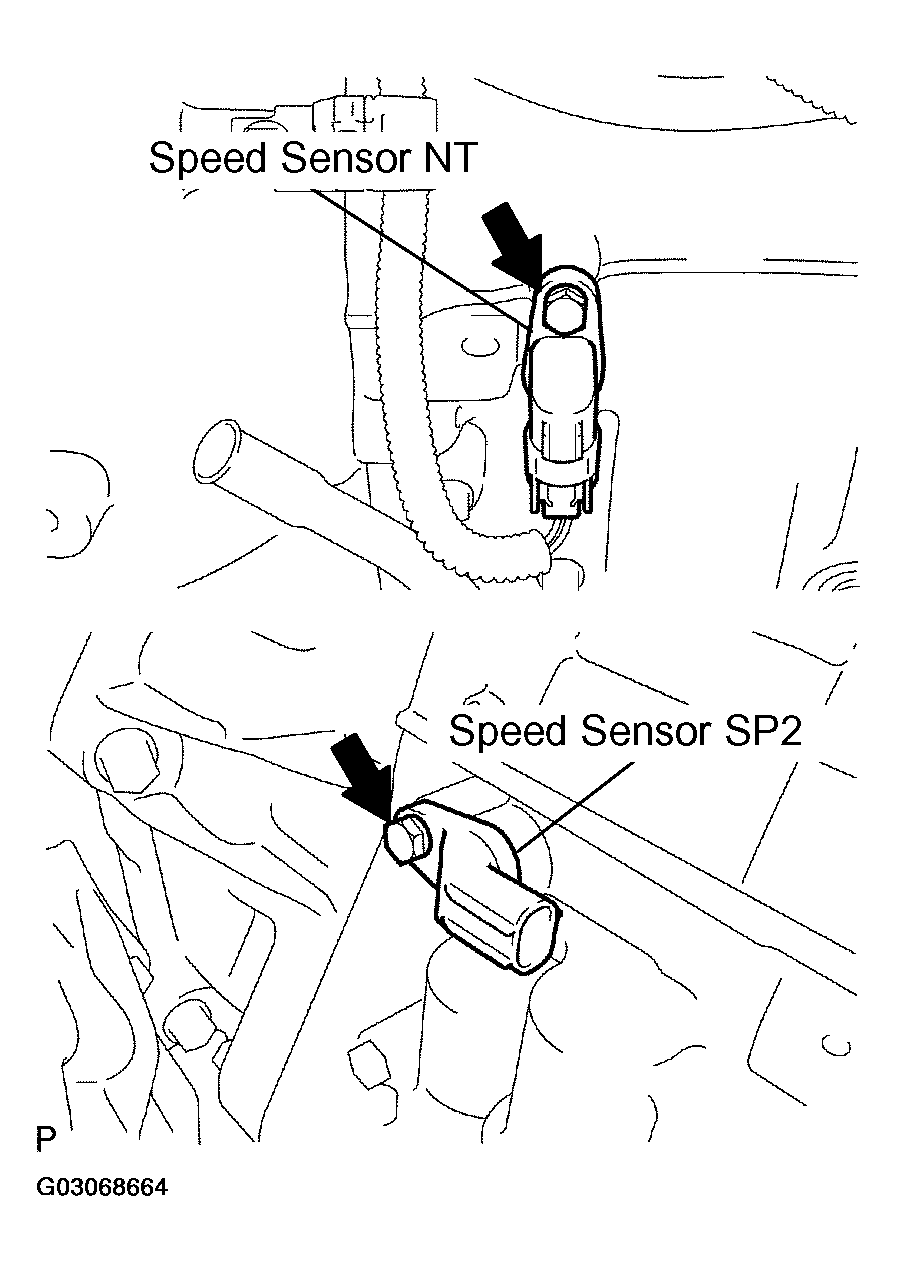

2. Install the speed sensor NT and SP2 with 2 bolts.

   Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
