Parts Layout And Schematic Drawing: Location

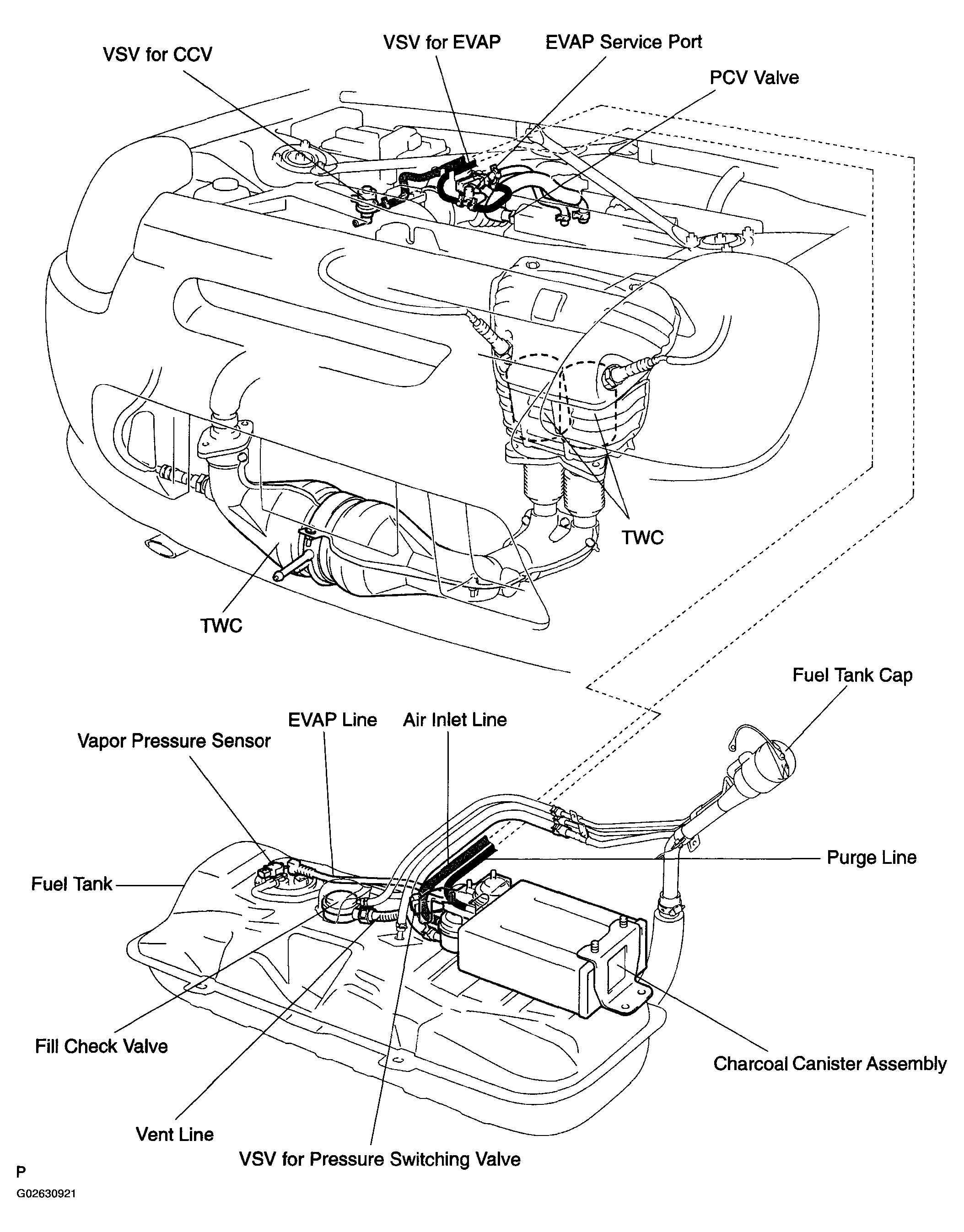

Fig 1: Identifying Emission Control System Parts Layout And Schematic Drawing
G02630921Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
