Power Mirror Control System
Power Mirror Control System

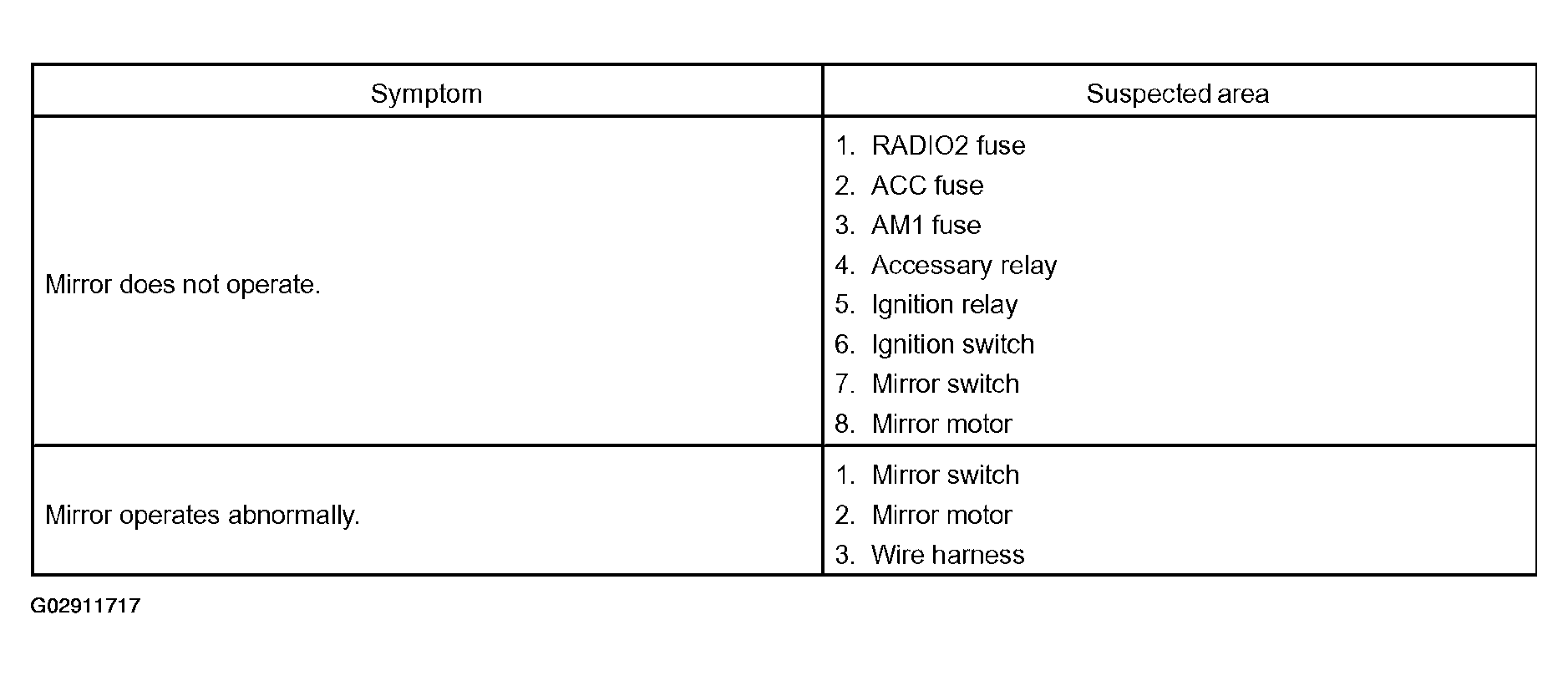

Fig 1: Displaying Power Mirror Control System Problem Suspect Areas
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
