Location
Power Door Lock Control System: Location

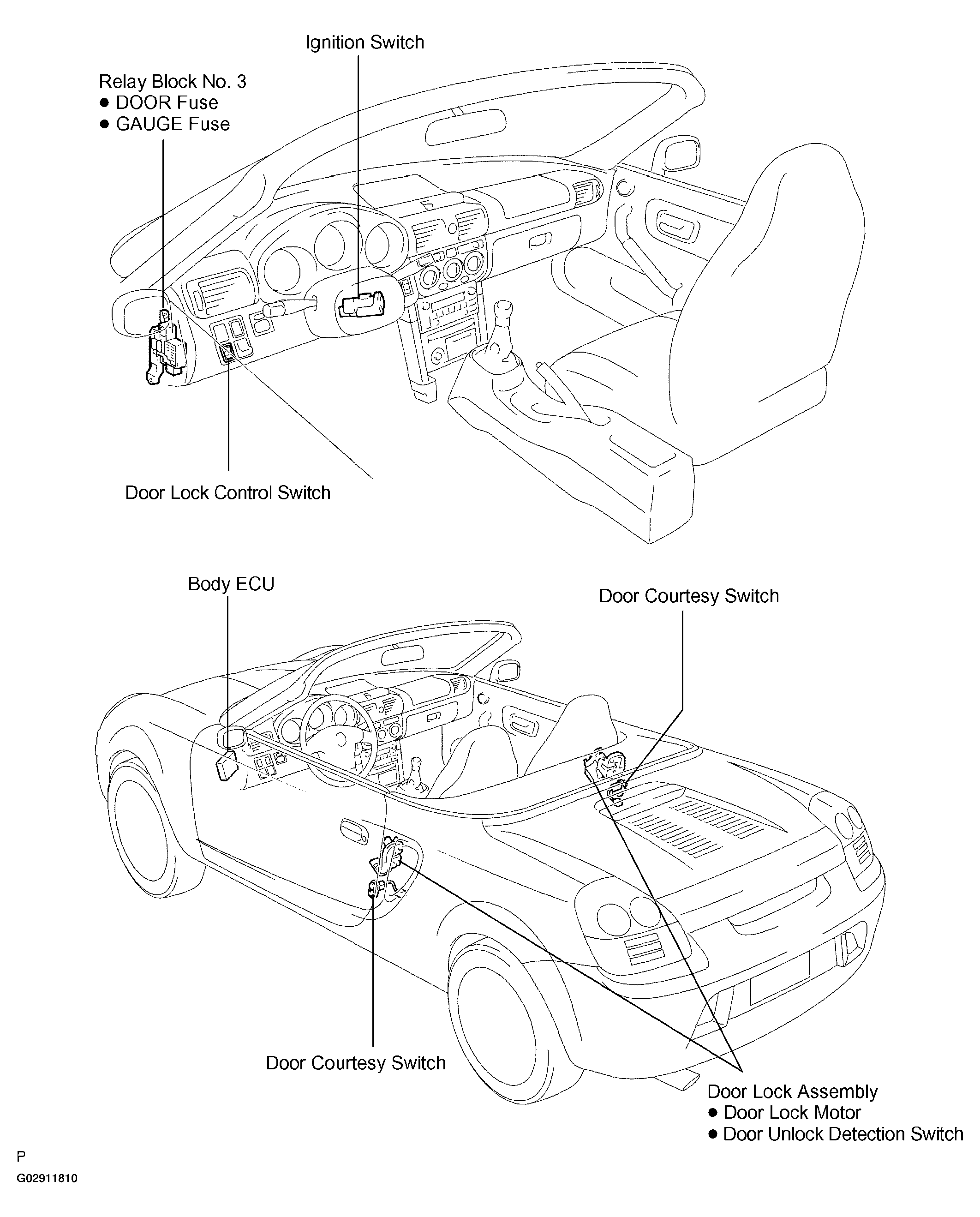

Fig 1: Identifying Power Door Lock Control System Component Location
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
