Abs Actuator: Components

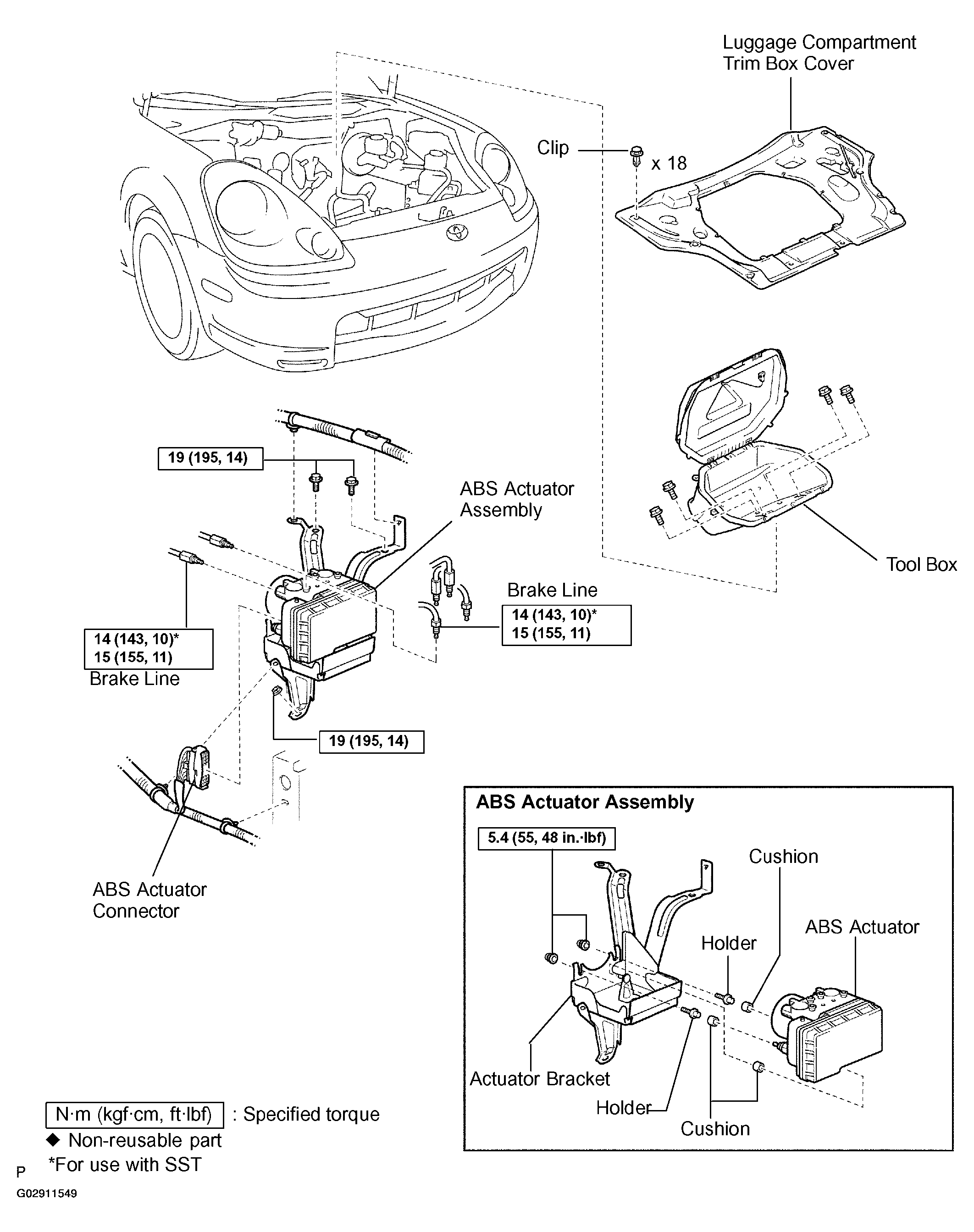

Fig 1: Identifying Components For ABS Actuator Removal

G02911549

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
