Abs Actuator: Installation

1. Install the 2 holders and 3 cushions to the ABS actuator.
2. Install the ABS actuator to the actuator bracket with the 2 nuts.

   Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)

3. Install the ABS actuator assembly with the 2 bolts and nut.

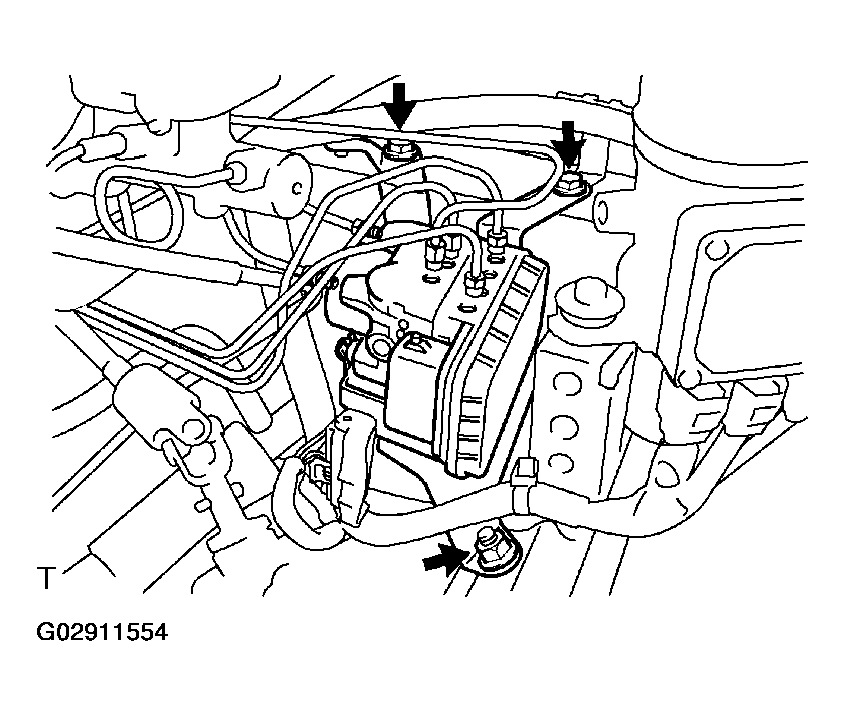

   Fig 1: Installing ABS Actuator Assembly with 2 Bolts & Nut

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 19 N.m (195 kgf.cm, 14 ft.lbf)

4. Connect the 2 harness clamps.

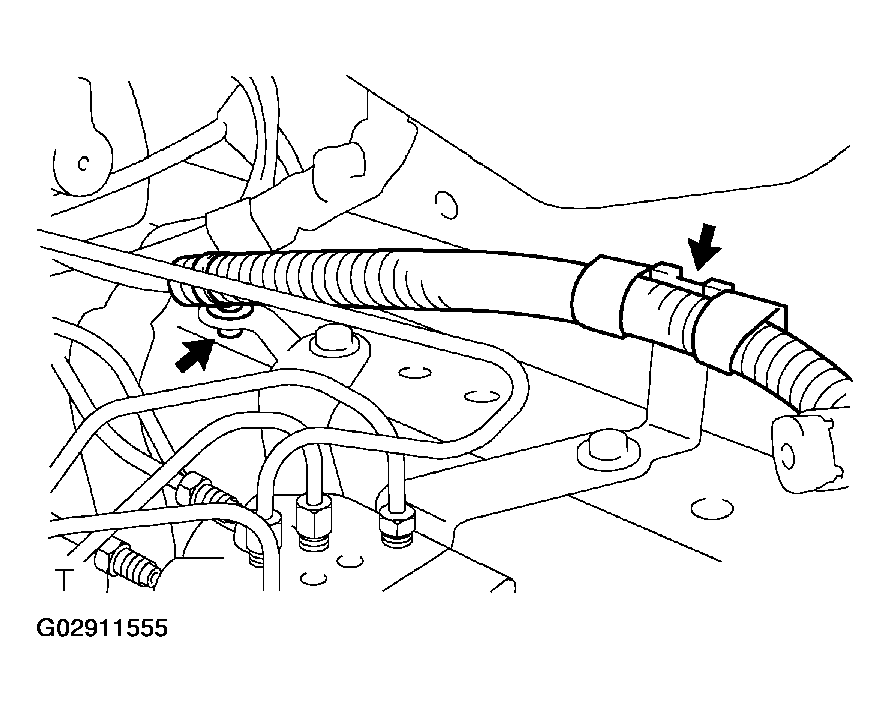

   Fig 2: Connecting Harness Clamps

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Connect the 2 harness clamps and actuator connector.

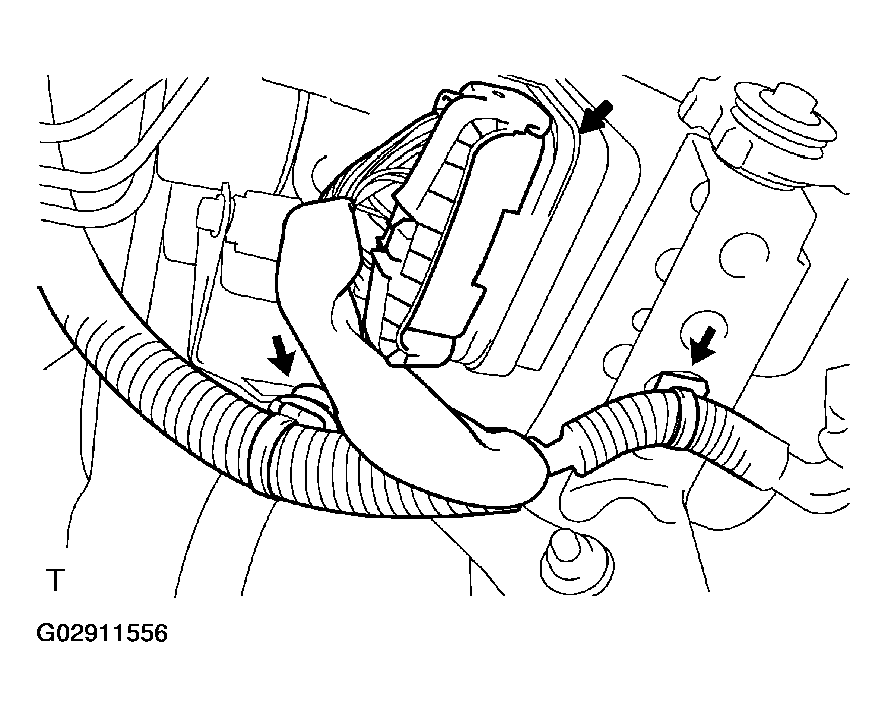

   Fig 3: Connecting Harness Clamps & Actuator Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using SST, connect the 6 brake lines.

SST 09023-00100

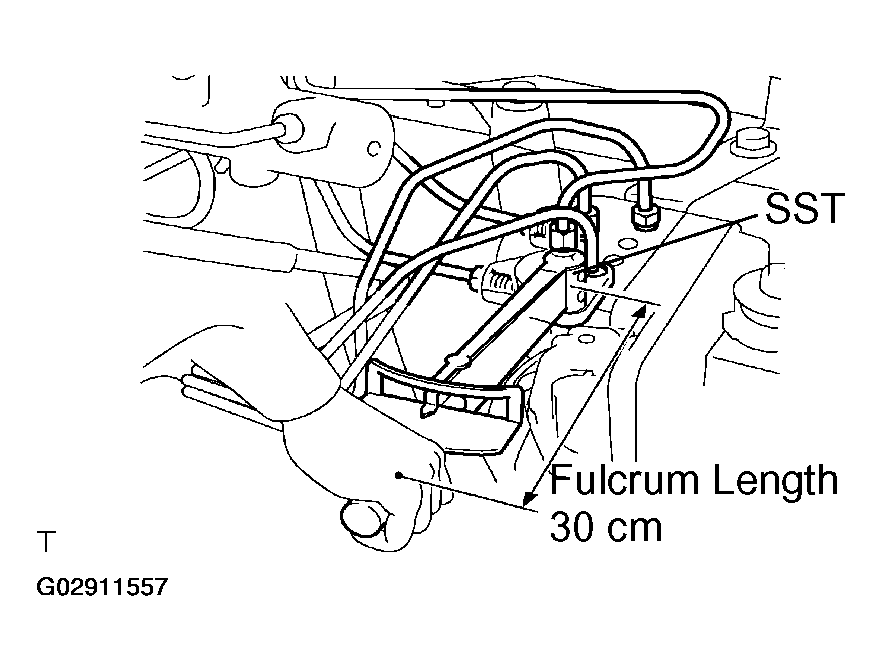

Fig 4: Connecting Brake Lines to ABS Actuator

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque:

1. 15 N.m (155 kgf.cm, 11 ft.lbf)
2. 14 N.m (143 kgf.cm, 10 ft.lbf) for use with SST
