Diagnostic Trouble Code Chart
NOTE:
- Using SST 09843-18040, connect terminals Tc and CG of the DLC3.
- If no abnormality is found in inspection parts, inspect the ECU.
- If a malfunction code is displayed during the DTC check, check the circuit listed for the code. For details of each code, refer to respective DTC No. in the DTC chart.

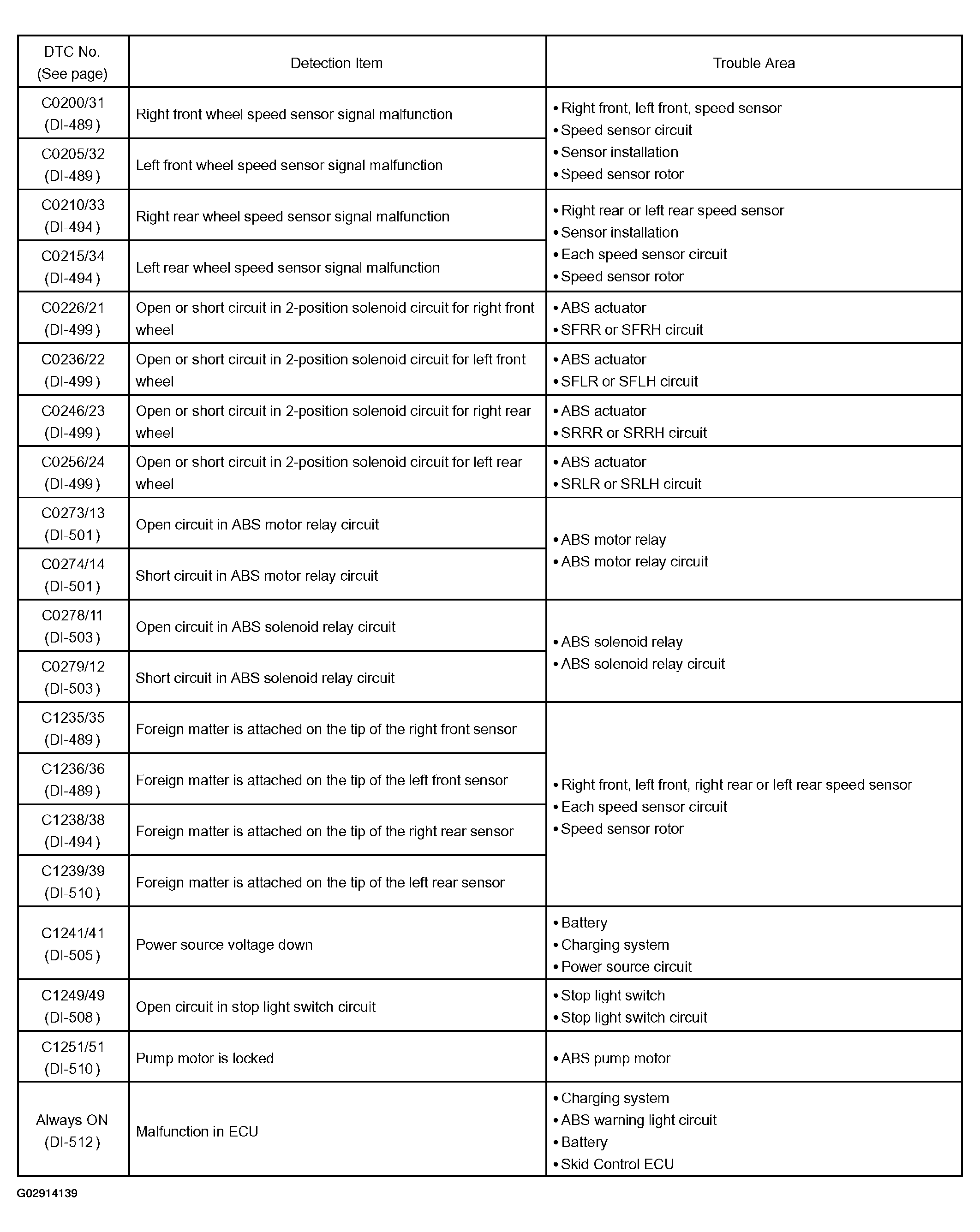

DIAGNOSTIC TROUBLE CODES (DTC) LIST
| DTC | Description |
|---|---|
| DTC C0200/31, C0205/32, C1235/35, C1236/36 | FRONT SPEED SENSOR CIRCUIT & FOREIGN MATTER IS ATTACHED ON TIP OF RIGHT/LEFT FRONT SENSOR |
| DTC C0210/33, C0215/34, C1238/38, C1239/39 | REAR SPEED SENSOR CIRCUIT & FOREIGN MATTER IS ATTACHED ON TIP OF RIGHT/LEFT REAR SENSOR |
| DTC C0226/21, C0236/22, C0246/23, C0256/24 | SFR/SFL/SRR/SRL SOLENOID CIRCUIT |
| DTC C0273/13, C0274/14 | OPEN CIRCUIT IN ABS MOTOR RELAY CIRCUIT & B+ SHORT CIRCUIT IN ABS MOTOR RELAY CIRCUIT |
| DTC C0278/11, C0279/12 | OPEN/SHORT CIRCUIT IN ABS SOLENOID RELAY CIRCUIT |
| DTC C1241/41 | LOW BATTERY POSITIVE VOLTAGE OR ABNORMALLY HIGH BATTERY POSITIVE VOLTAGE |
| DTC C1249/49 | OPEN CIRCUIT IN STOP LIGHT SWITCH CIRCUIT |
| DTC C1251/51 | PUMP MOTOR IS LOCKED/OPEN CIRCUIT IN PUMP MOTOR GROUND |
