Repair and Diagnosis: Electrical: Gauges: Clock: Troubleshooting

+/- 1.5 seconds / day

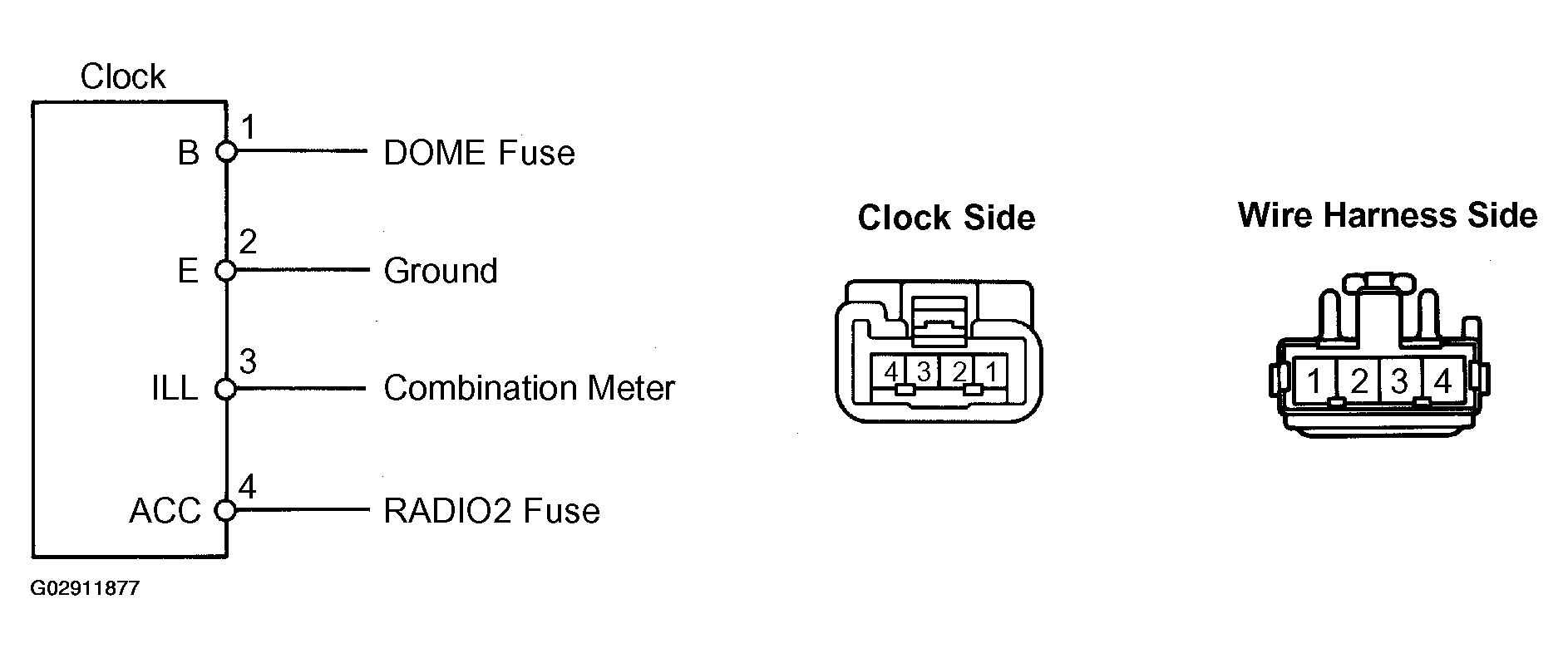

Fig 1: Identifying Clock Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Clock Will Not Operate
   1. Check that the battery positive voltage is 10 - 16 V. If voltage is not as specified, replace the battery.
      Fig 2: Identifying Clock Connector Terminals

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Check that the DOME and RADIO 2 fuses are not blown. If the fuse is blown, replace the fuse and check for short.
   3. Troubleshoot the clock as follows.
      NOTE: Inspect the connector on the wire harness side.

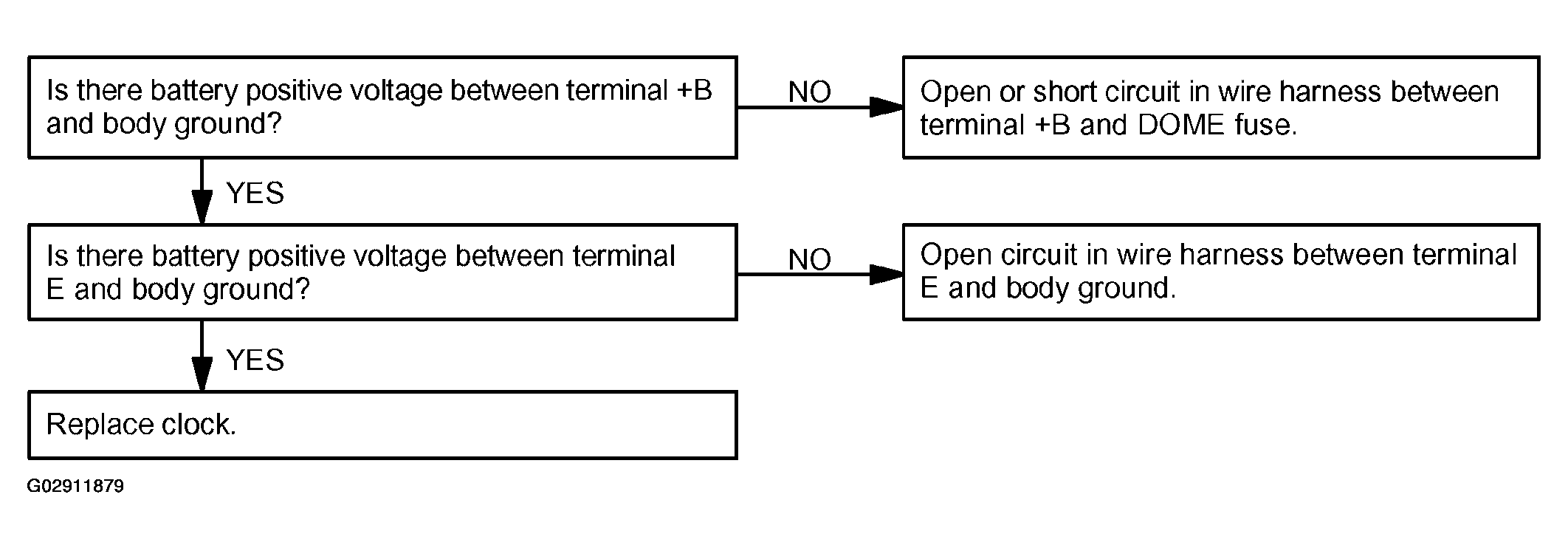

      Fig 3: Troubleshooting Chart (Clock Not Operating)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Clock Loses Or Gains Time
   1. Check that the battery positive voltage is 10 - 16 V. If voltage is not as specified, replace the battery.
      Fig 4: Identifying Clock Connector Terminals

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Inspect the error of the clock.

      Allowable error (per day): +/- 1.5 seconds

      If the error exceeds the allowable error, replace the clock.

   3. Check that the clock adjusting button is sticking in position and has failed to return.

      If the error exceeds the allowable error, replace the clock.

   4. Troubleshoot the clock as follows.
      NOTE: Inspect the connector on the wire harness side.
      Fig 5: Troubleshooting Chart (Clock Loses or Gains Time)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
