Combination Meter: Circuit

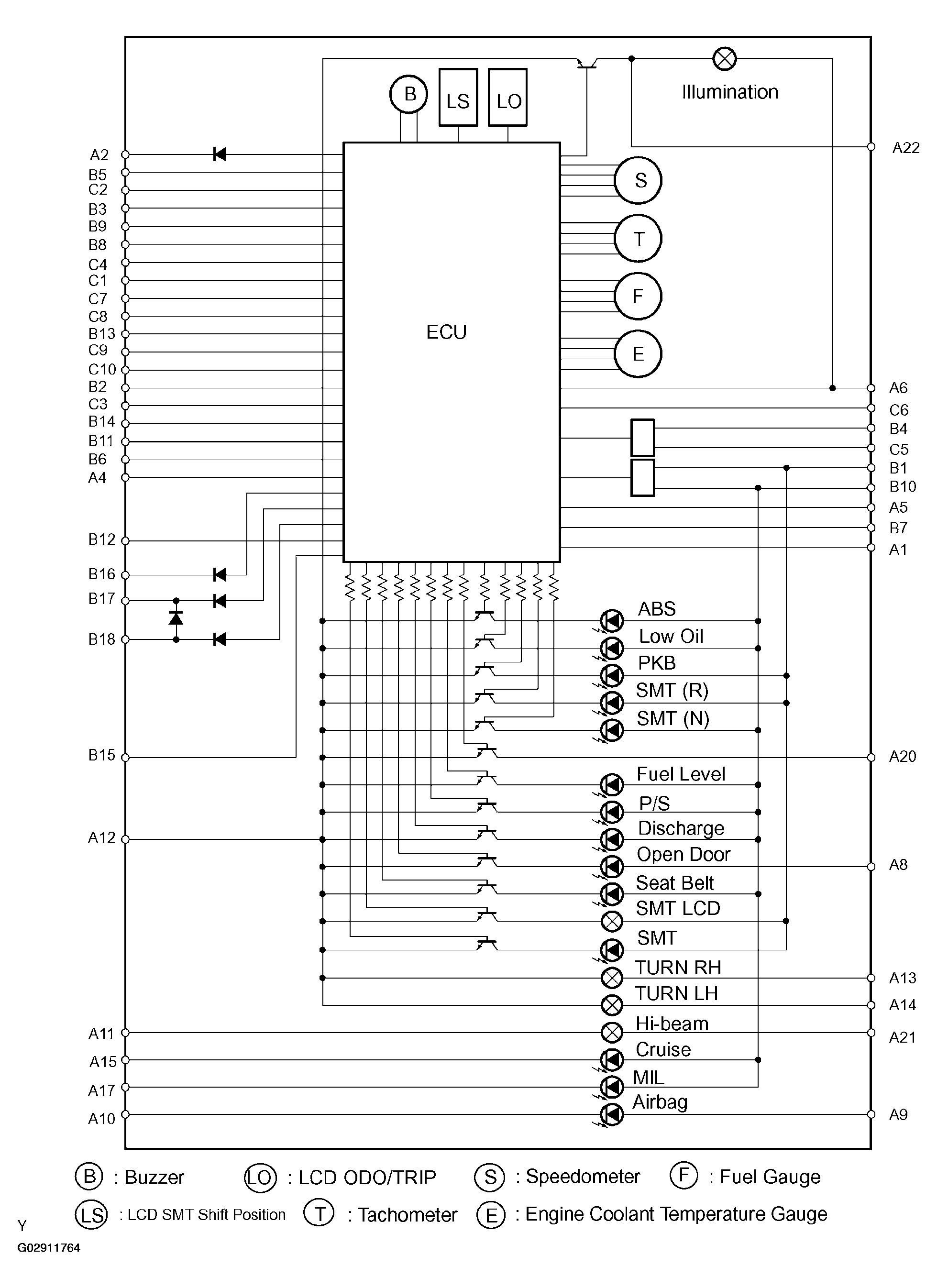

Fig 1: Combination Meter Circuit Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

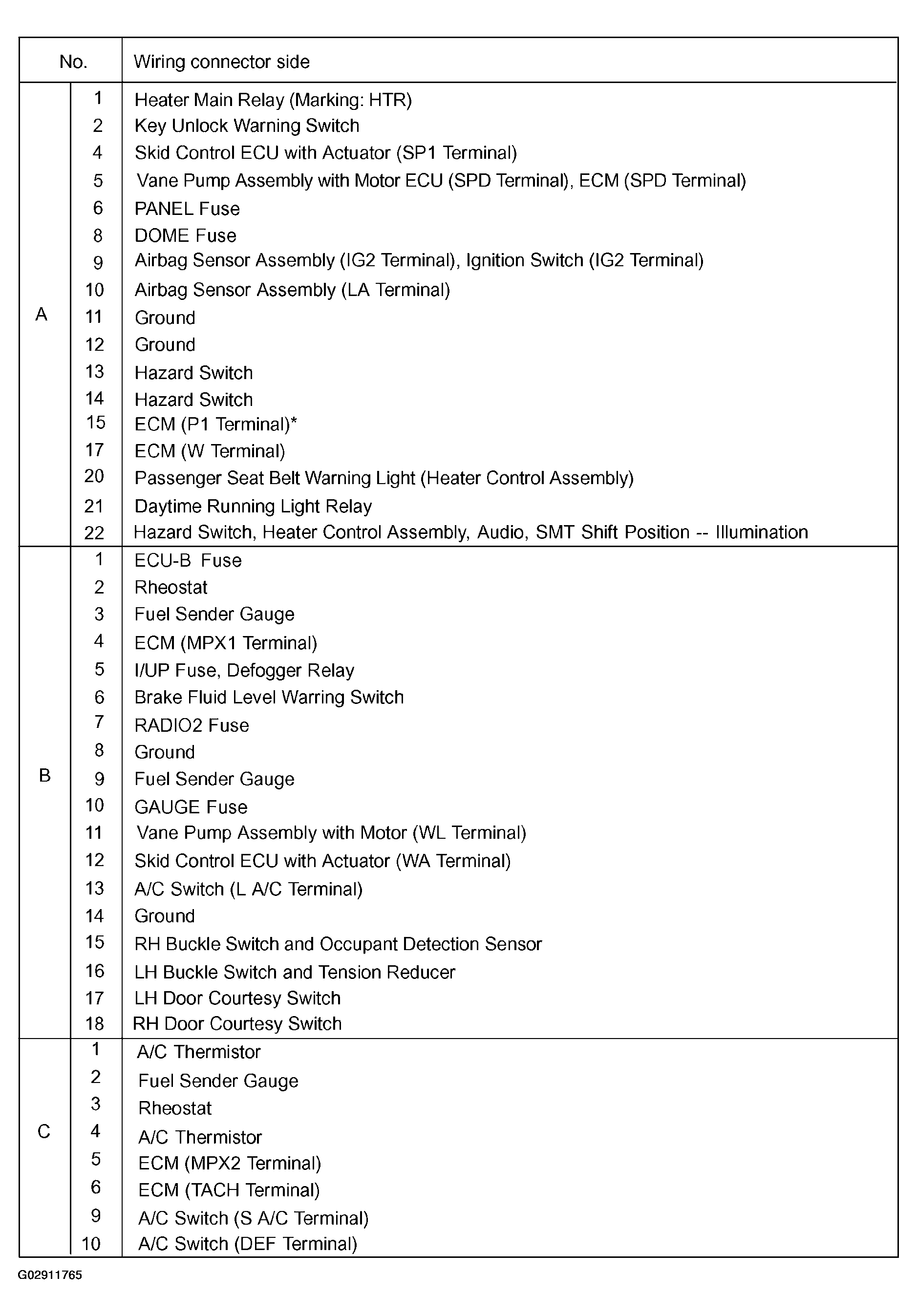

Fig 2: Identifying Combination Meter Circuits

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
