Combination Meter: Location

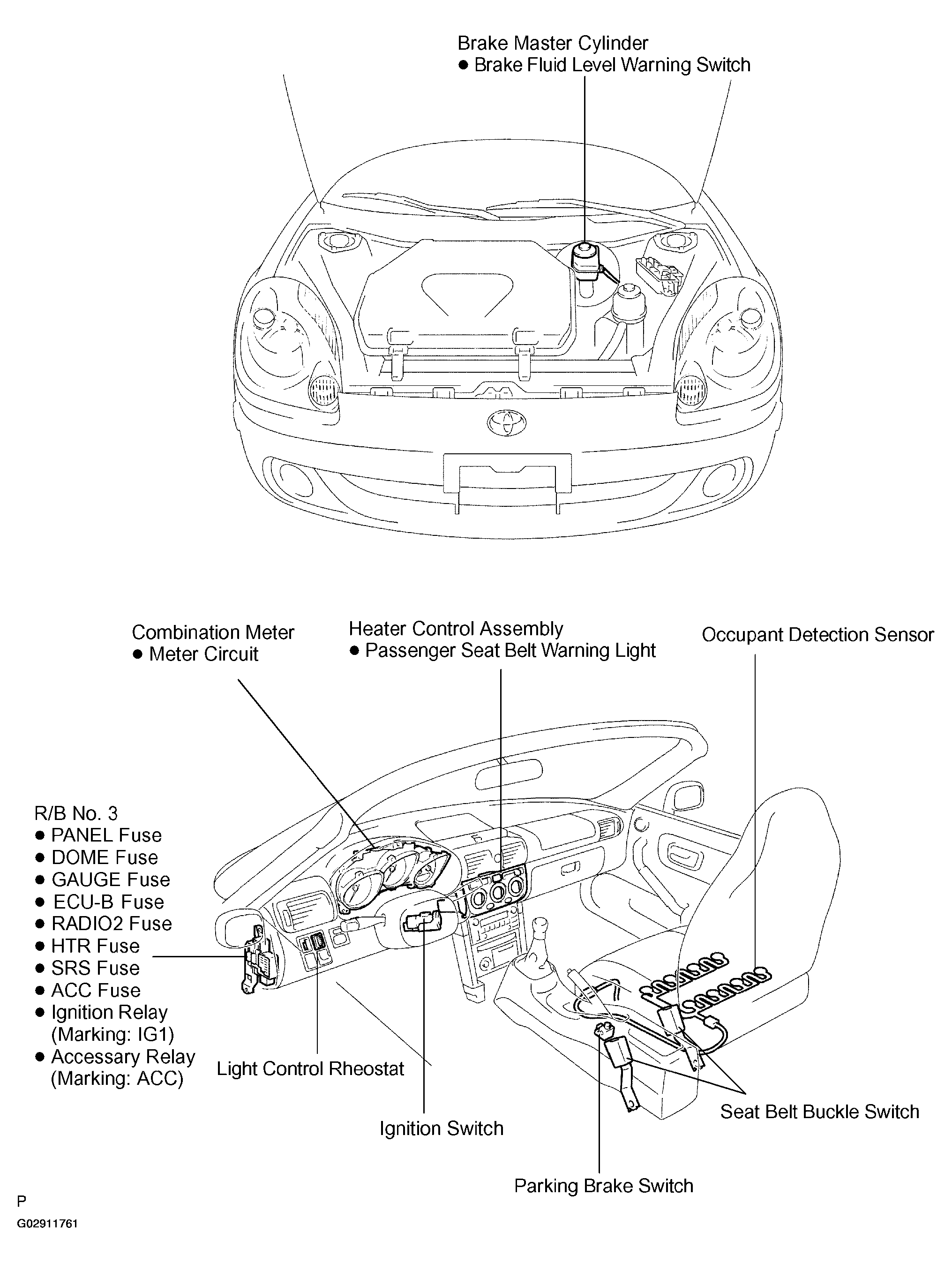

Fig 1: Locating Combination Meter-Related Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

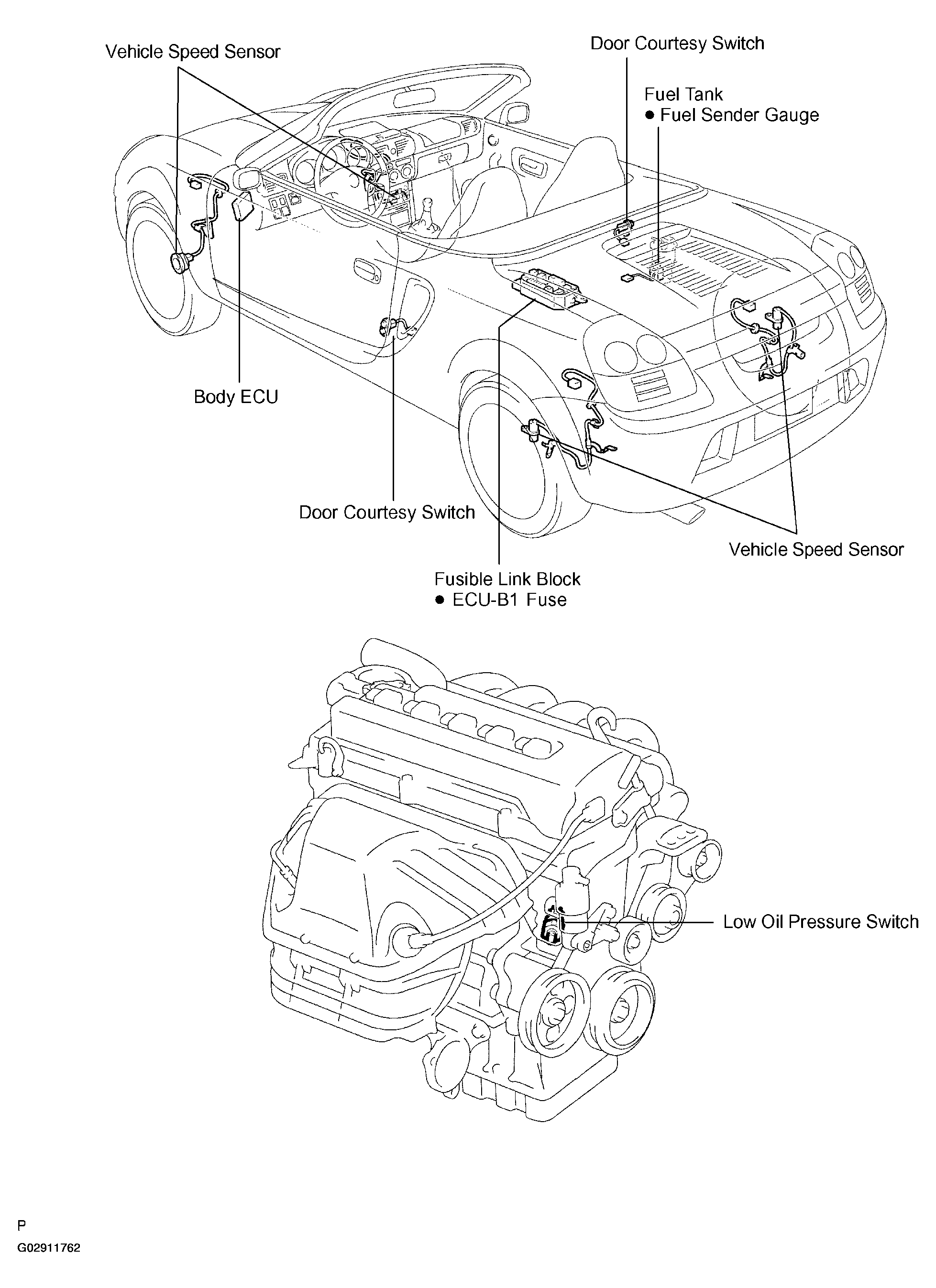

Fig 2: Locating Combination Meter-Related Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

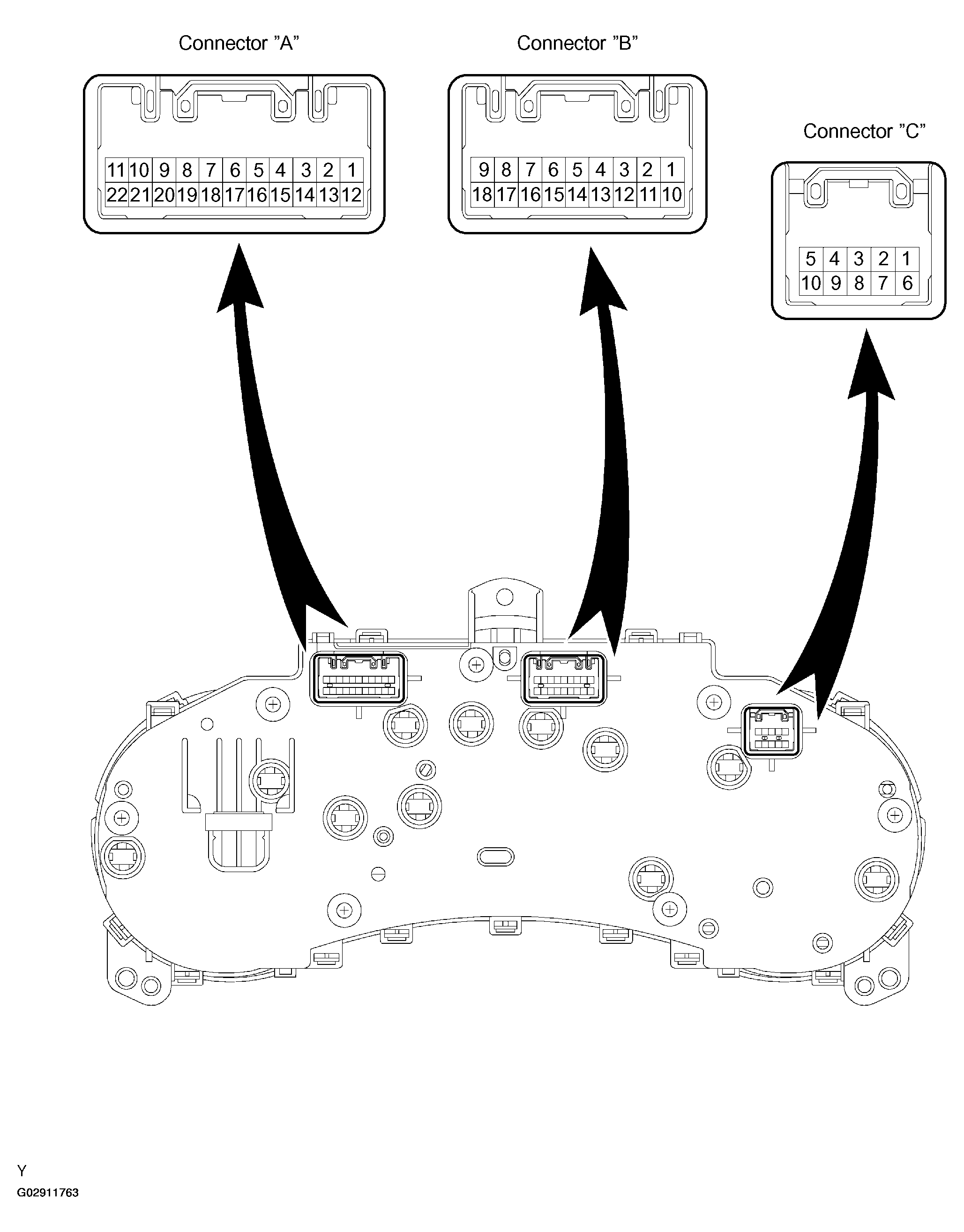

Fig 3: Identifying Coimbination Meter Connectors & Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
