Engine Controls - Diagnostics
›
A/C Compressor Circuit
›
Wiring Diagram

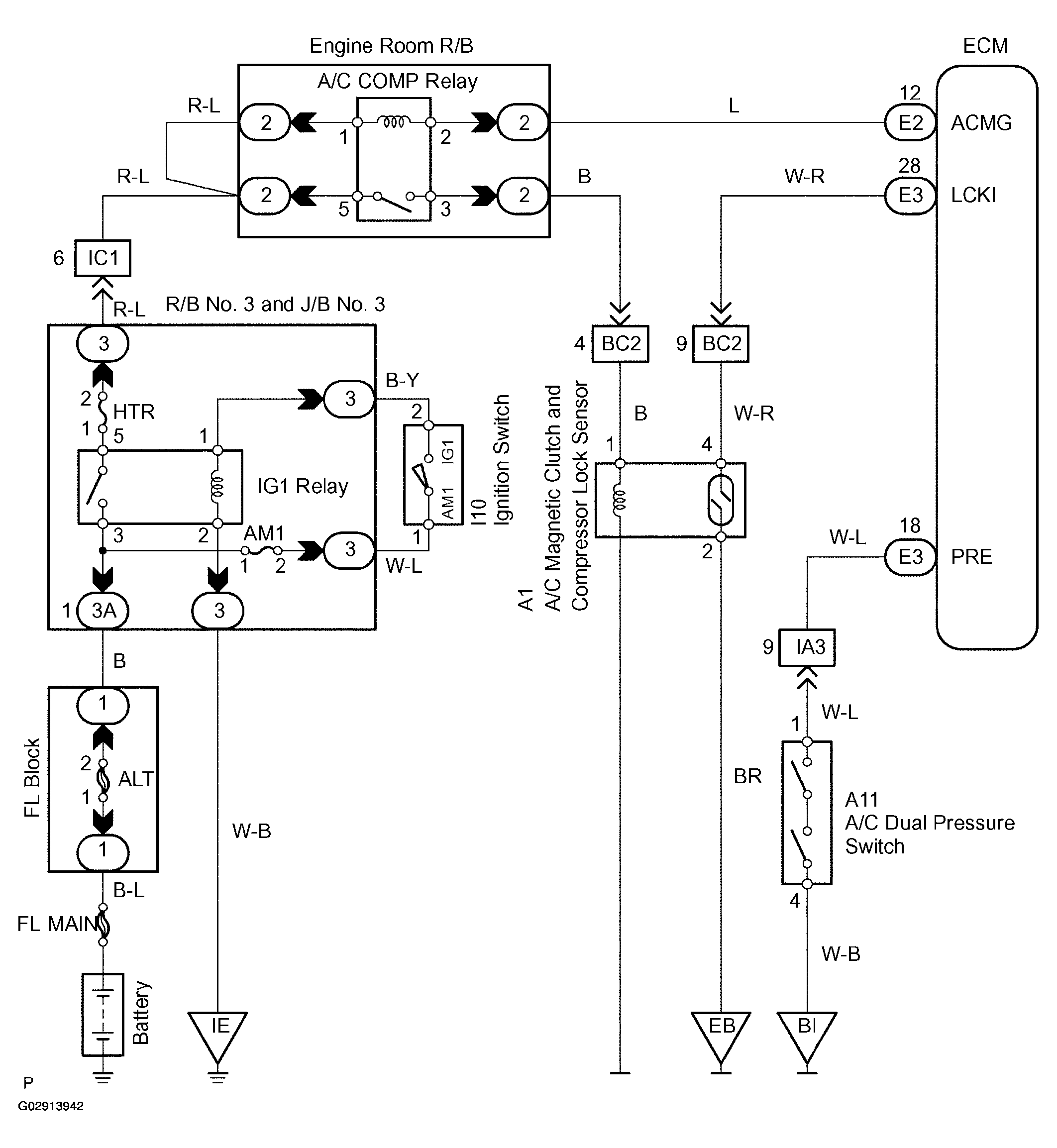

A/C Compressor Circuit: Wiring Diagram
Fig 1: Wiring Diagram - A/C Compressor Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
