Monitor Strategy

M/T:

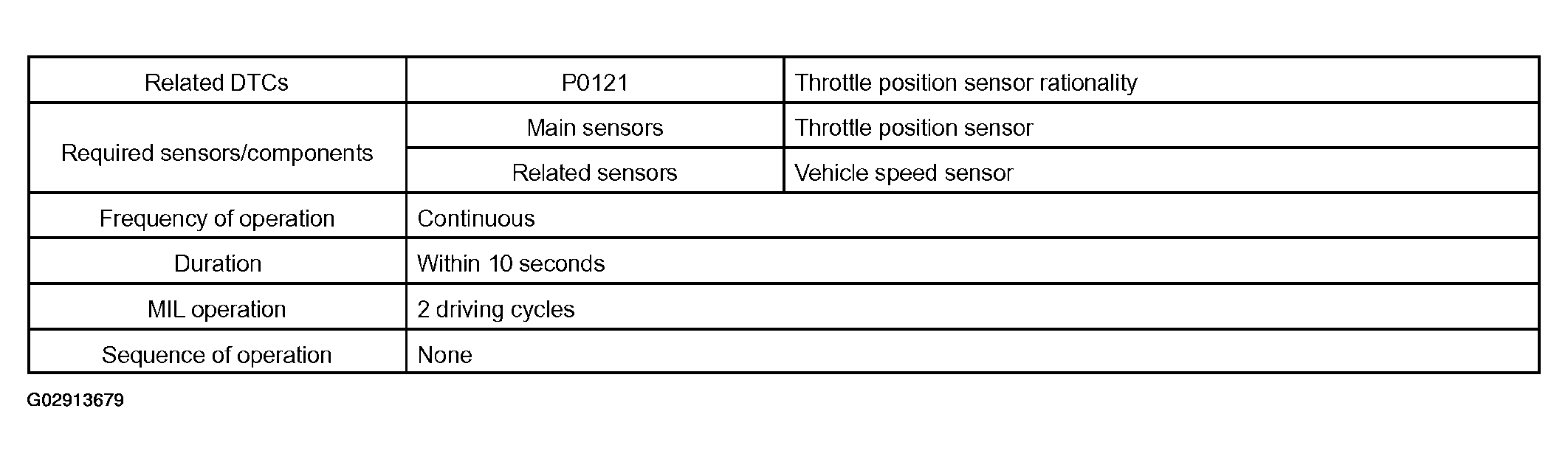

Fig 1: DTC P0121 Monitor Strategy Table (M/T)
G02913679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SMT:

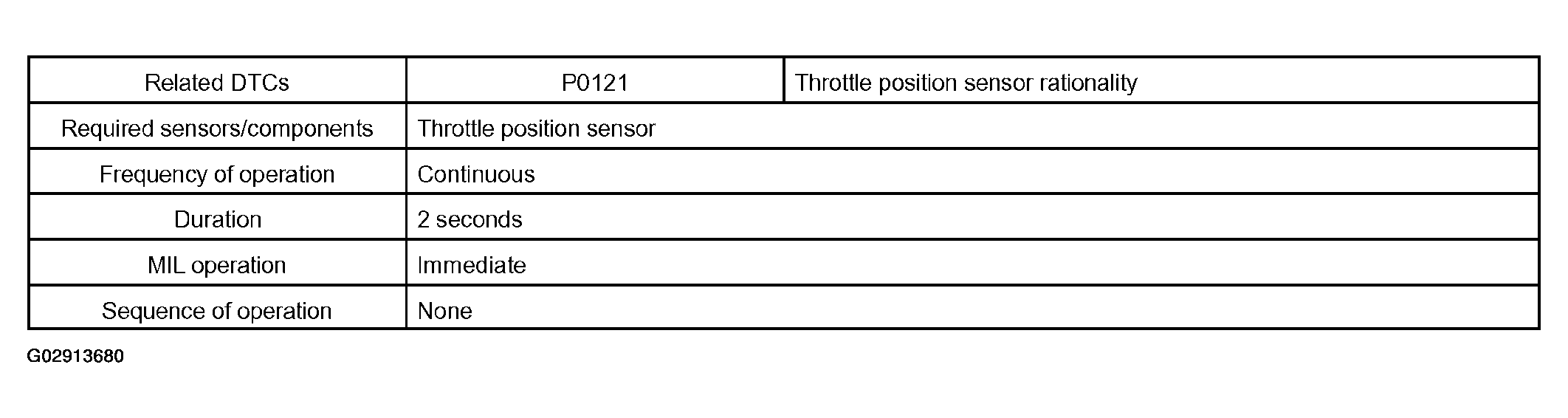

Fig 2: DTC P0121 Monitor Strategy Table (SMT)
G02913680Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
