Circuit Description

The ECM receives information about the ON/OFF status of the A/C from the combination meter. The ECM uses the information to control the engine (idle up, etc.).

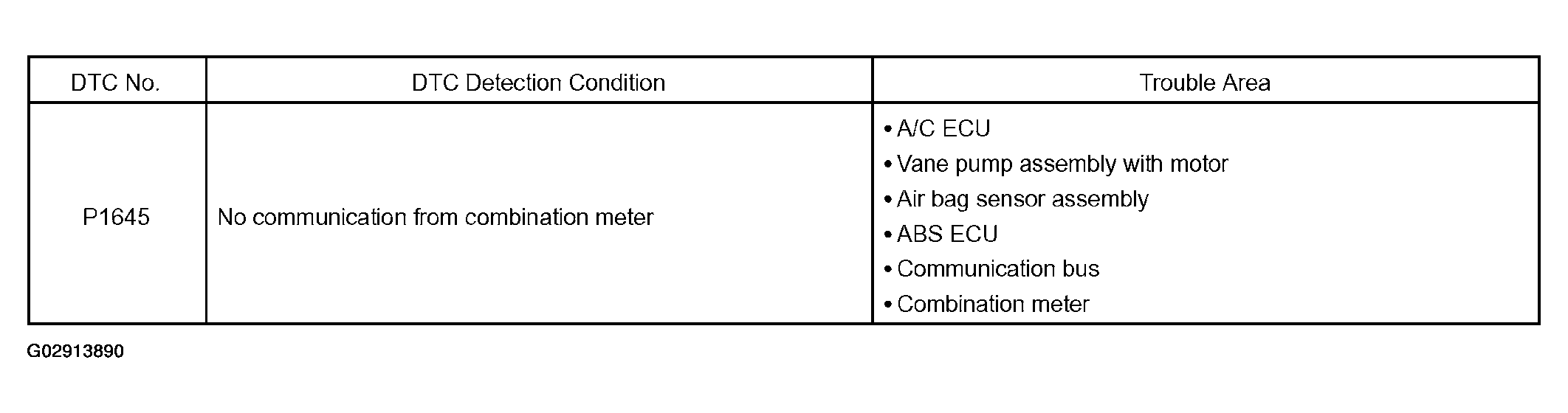

Fig 1: DTC Troubleshooting Table
G02913890Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
