Engine Controls - Diagnostics
›
Fuel Pump Control Circuit
›
Wiring Diagram
Fuel Pump Control Circuit: Wiring Diagram

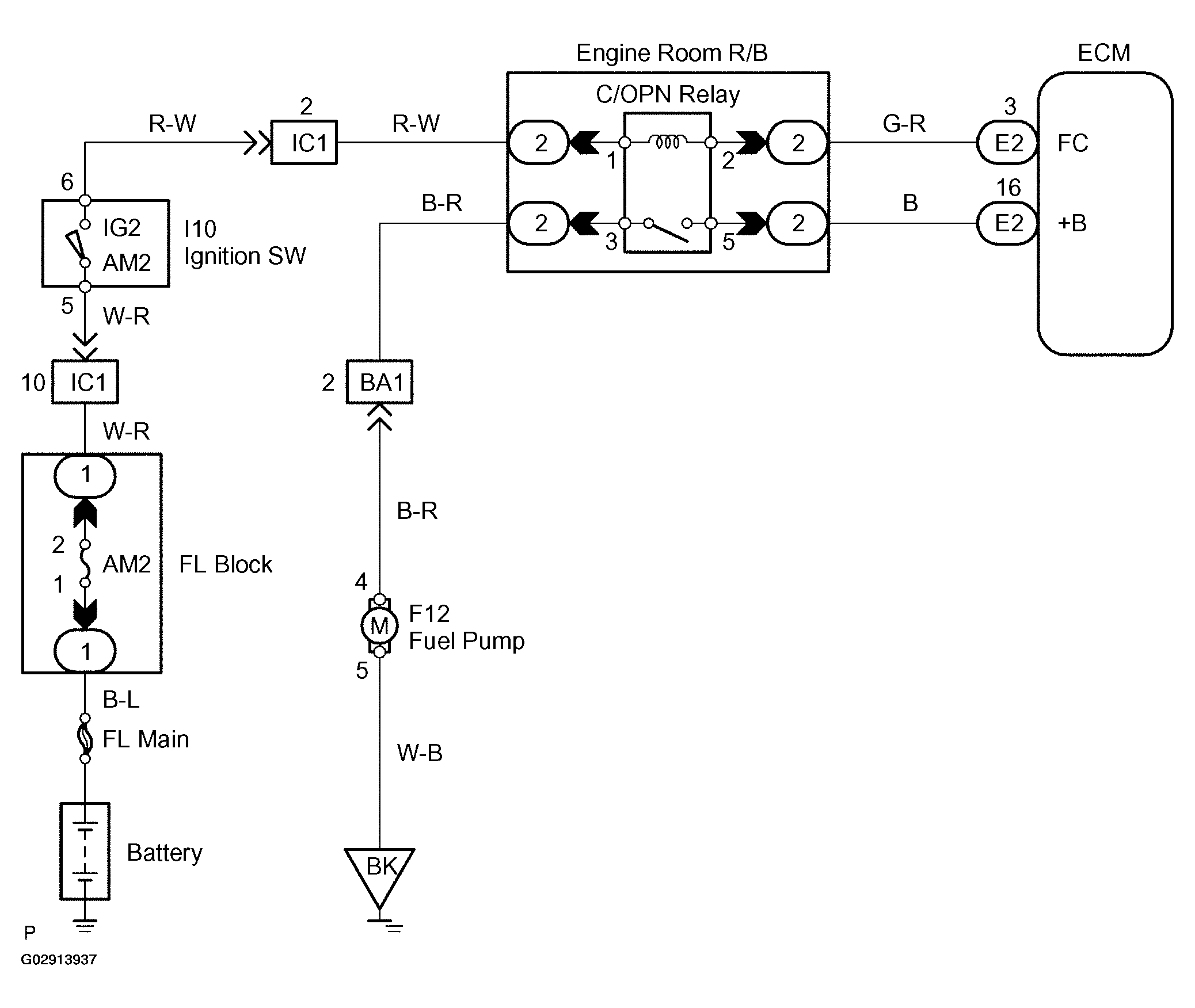

Fig 1: Wiring Diagram - Fuel Pump Control Circuit
