Tilt Steering Column: Inspection

Inspect Steering Lock Operation

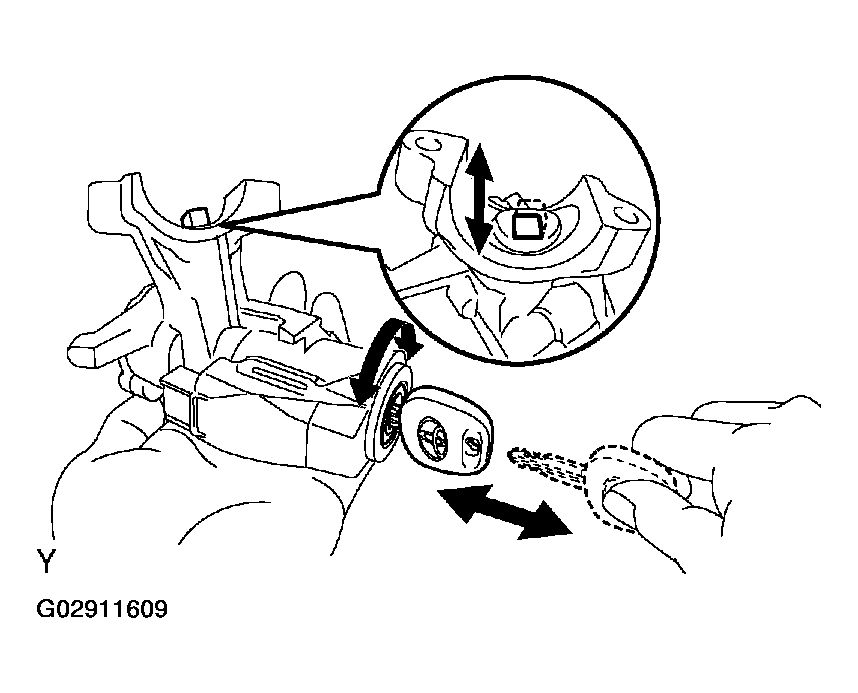

Fig 1: Inspecting Steering Lock Operation
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Check that the steering lock mechanism operates properly.
If Necessary, Replace Key Cylinder
1. Place the ignition key at the ACC position.

  Fig 2: Pushing Down Stop Pin To Release Key Cylinder
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Push down the stop pin with a screwdriver, and pull out the cylinder.
3. Install a new cylinder.
NOTE: Make sure the key is at the ACC position.
Inspect Ignition Switch (See INSPECTION )
If Necessary, Replace Ignition Switch
1. Remove the 2 screws and ignition switch from the column upper bracket.
2. Install a new ignition switch with the 2 screws.
Inspect Key Unlock Warning Switch (See INSPECTION )
If Necessary, Replace Key Unlock Warning Switch
1. Slide the key unlock warning switch out of the column upper bracket.
2. Slide a new key unlock warning switch in the column upper bracket.
Inspect Bearing

Fig 3: Inspecting Bearing Rotation Condition
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Check the bearing rotation condition and check for abnormal noise.

If the bearing is worn or damaged, replace the column tube.
