Tilt Steering Column: Removal

  1. Remove Steering Wheel Pad
    NOTE: If the airbag connector is disconnected with the ignition switch at ON, DTCs will be recorded.
    1. Place the front wheels facing straight ahead.
    2. Using a torx socket wrench (T30), loosen the 2 torx screws until the groove along the screw circumference catches on the screw case.

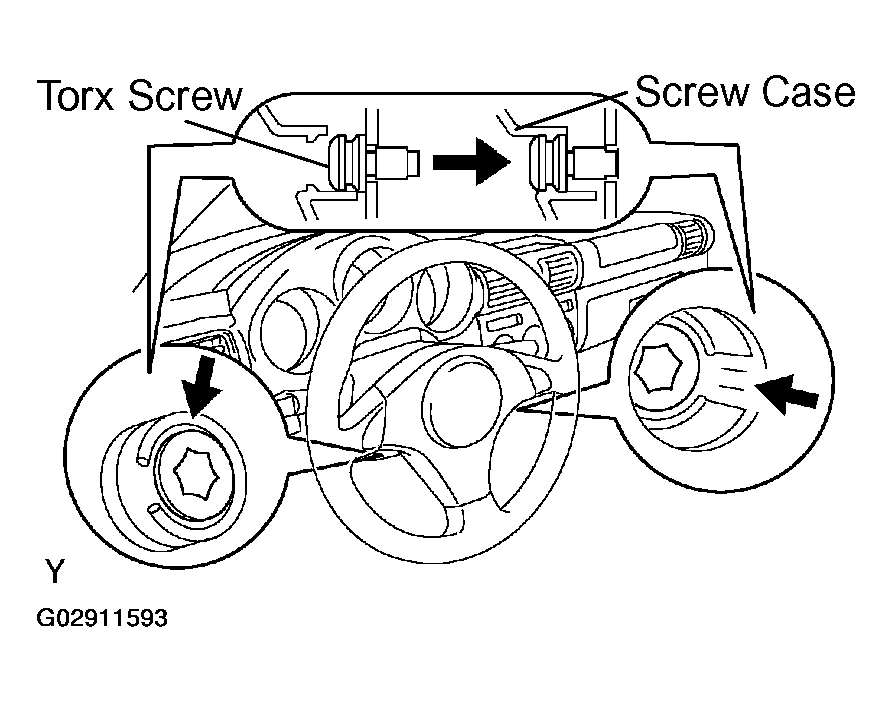

      Fig 1: Locating Torx Screw In Screw Case
      G02911593Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Pull out the wheel pad from the steering wheel and disconnect the airbag connector.
    CAUTION:
    • When storing the wheel pad, keep the upper surface of the pad facing upward.

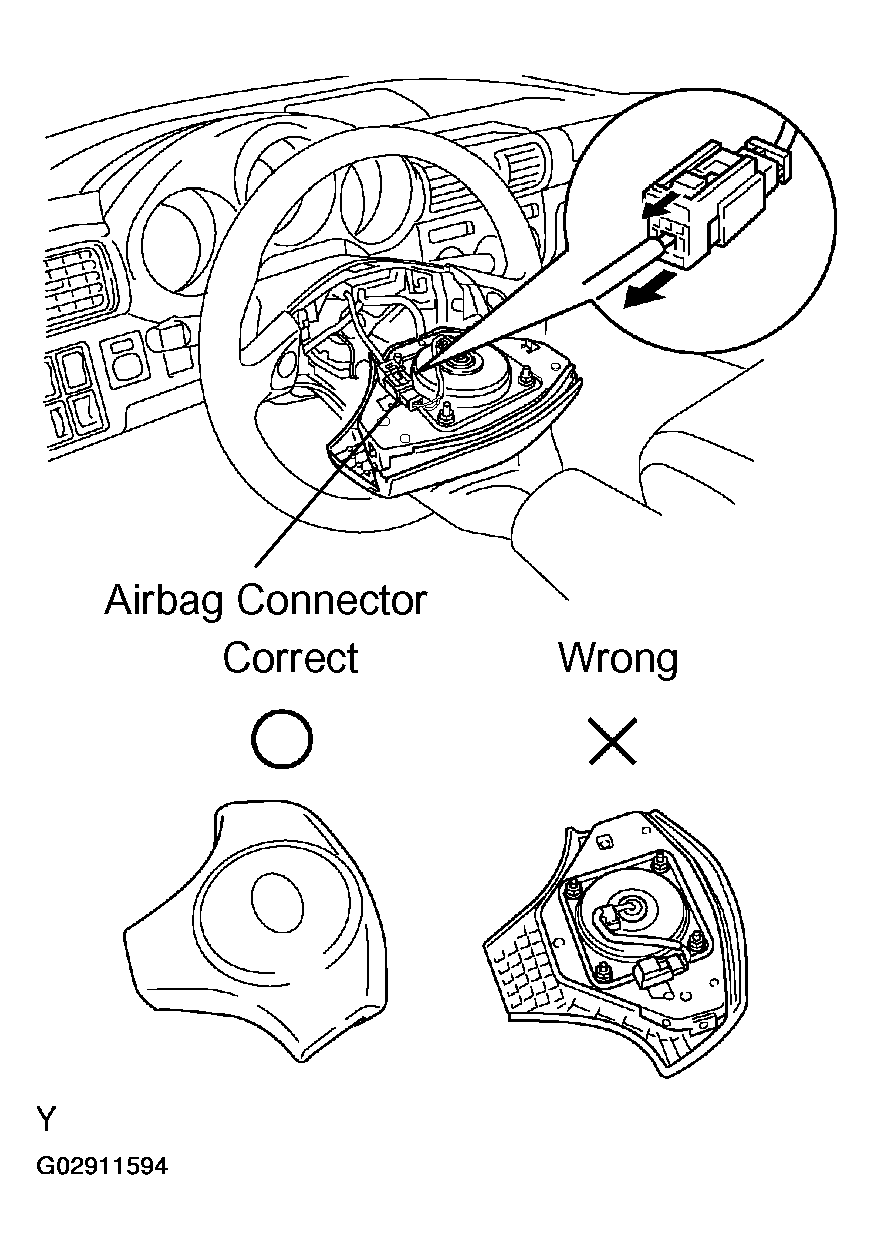

      Fig 2: Displaying Proper Air Bag Placement
      G02911594Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    • Never disassemble the wheel pad.
    NOTE: When removing the wheel pad, take care not to pull the air-bag wire harness.
  2. Remove Steering Wheel
    1. Disconnect the connector.
    2. Remove the steering wheel set nut.
    3. Place matchmarks on the steering wheel and main shaft assembly.
    4. Using SST, remove the steering wheel.

      SST 09950-50013 (09951-05010, 09952-05010, 09953-05020, 09954-05021)

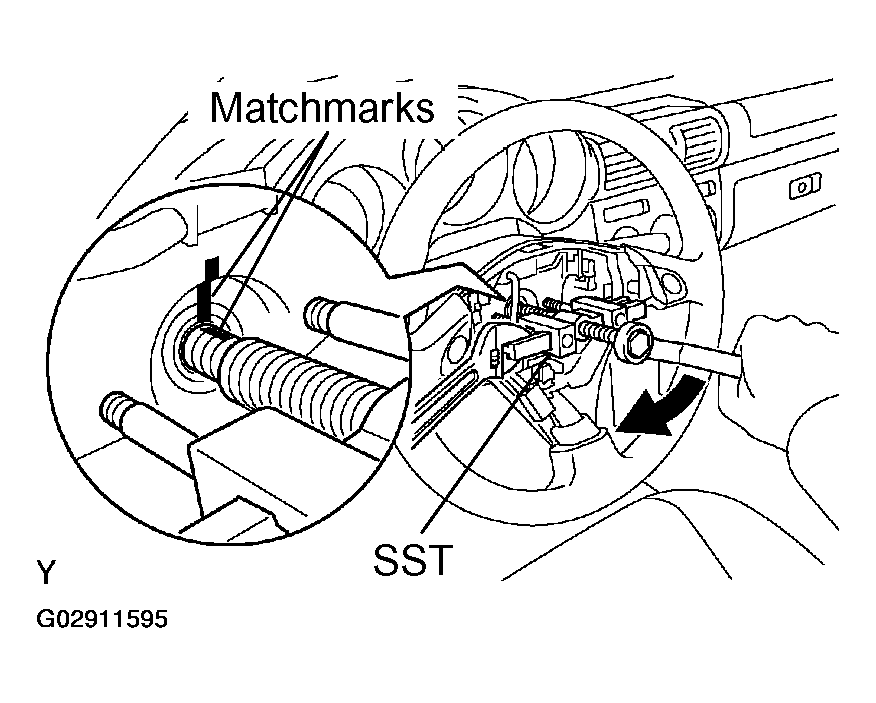

      Fig 3: Removing Steering Wheel
      G02911595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Remove Instrument Finish Panel
    1. Remove the bolt, screw and lower No. 1 instrument finish panel.
    2. Disconnect the DLC3.
  4. Remove Column Lower Cover

    Remove the 3 screws and column lower cover.

  5. Disconnect Column Upper Cover

    Disconnect the column upper cover from the column tube.

  6. Remove Spiral Cable, Light Control Switch And Headlight Dimmer Switch And Wiper And Washer Switch
    1. Disconnect the 3 connectors from the spiral cable, light control switch and headlight dimmer switch and wiper and washer switch.
    2. Disconnect the airbag connector from the spiral cable.
    3. Release the 3 claws and remove the spiral cable.

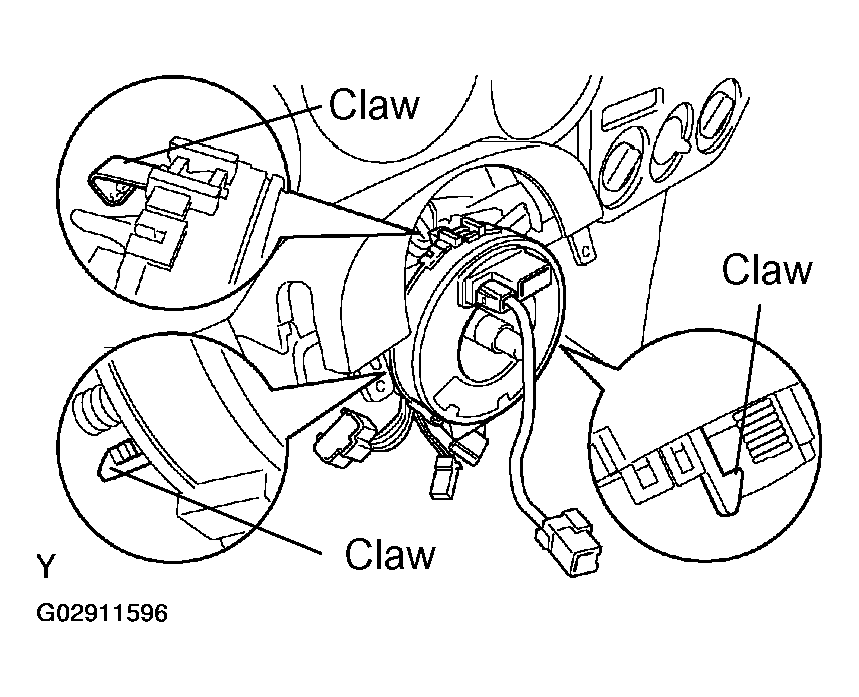

      Fig 4: Identifying Spiral Cable Details
      G02911596Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: Do not disassemble the spiral cable or apply oil to it.

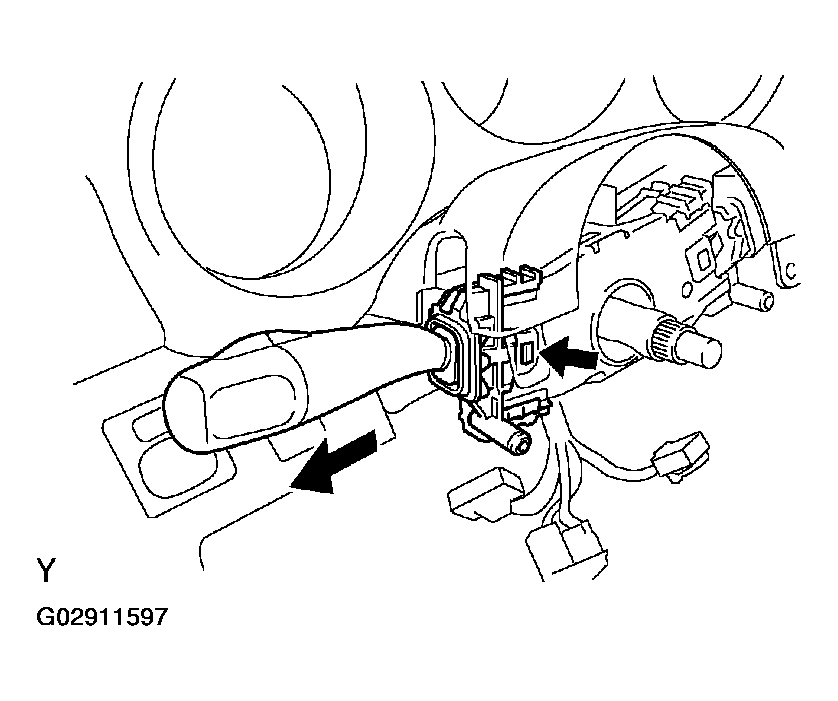

    4. Push the claw and pull out the light control switch and headlight dimmer switch.
    5. Employ the same manner described above to the wiper and washer switch.
  7. Disconnect No. 2 Intermediate Shaft Assembly
    1. Loosen the clamp and disconnect the No. 2 column hole cover.
      Fig 5: Removing Light Control Switch & Head Light Dimmer Switch
      G02911597Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Place matchmarks on the No. 2 intermediate shaft assembly and control valve shaft.

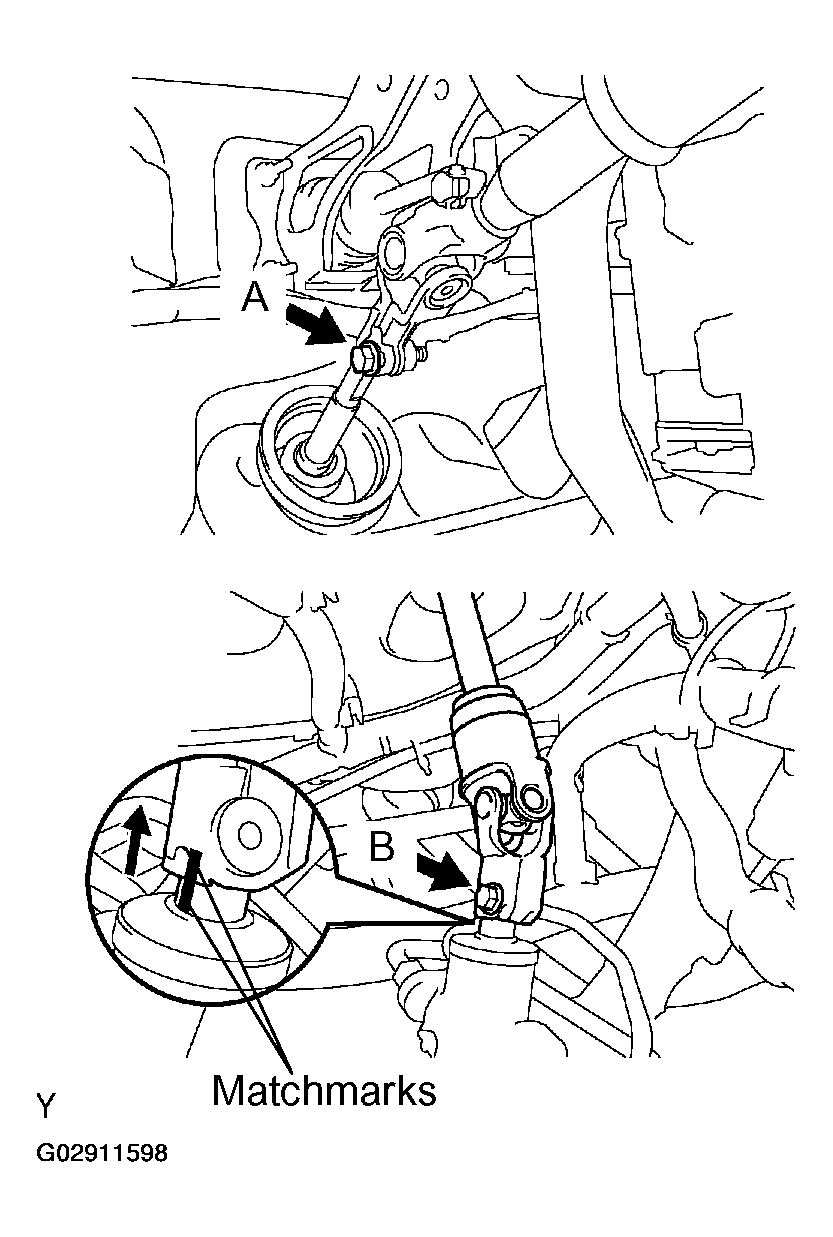

      Fig 6: Placing Matchmarks On No. 2 Intermediate Shaft Assembly
      G02911598Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Loosen the bolt A and remove the bolt B, then disconnect the No. 2 intermediate shaft assembly.
  8. Remove Steering Column Assembly
    1. Disconnect the 3 connectors and 2 wire harness clamps.
    2. Remove the 2 bolts, nuts and steering column assembly.
  9. Remove Column Upper Cover
  10. Remove No. 2 Intermediate Shaft Assembly
    1. Place matchmarks on the sliding yoke and main shaft assembly.
    2. Remove the bolt and No. 2 intermediate shaft assembly.
      Fig 7: Placing Matchmarks On Sliding Yoke & Main Shaft Assembly
      G02911599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. Remove Sliding Yoke & No. 2 Column Hole Cover
    Fig 8: Identifying Sliding Yoke & No. 2 Column Hole Cover
    G02911600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Remove the bolt, sliding yoke, intermediate shaft dust cover and No. 2 column hole cover.
