Gear Shift Actuator: Components

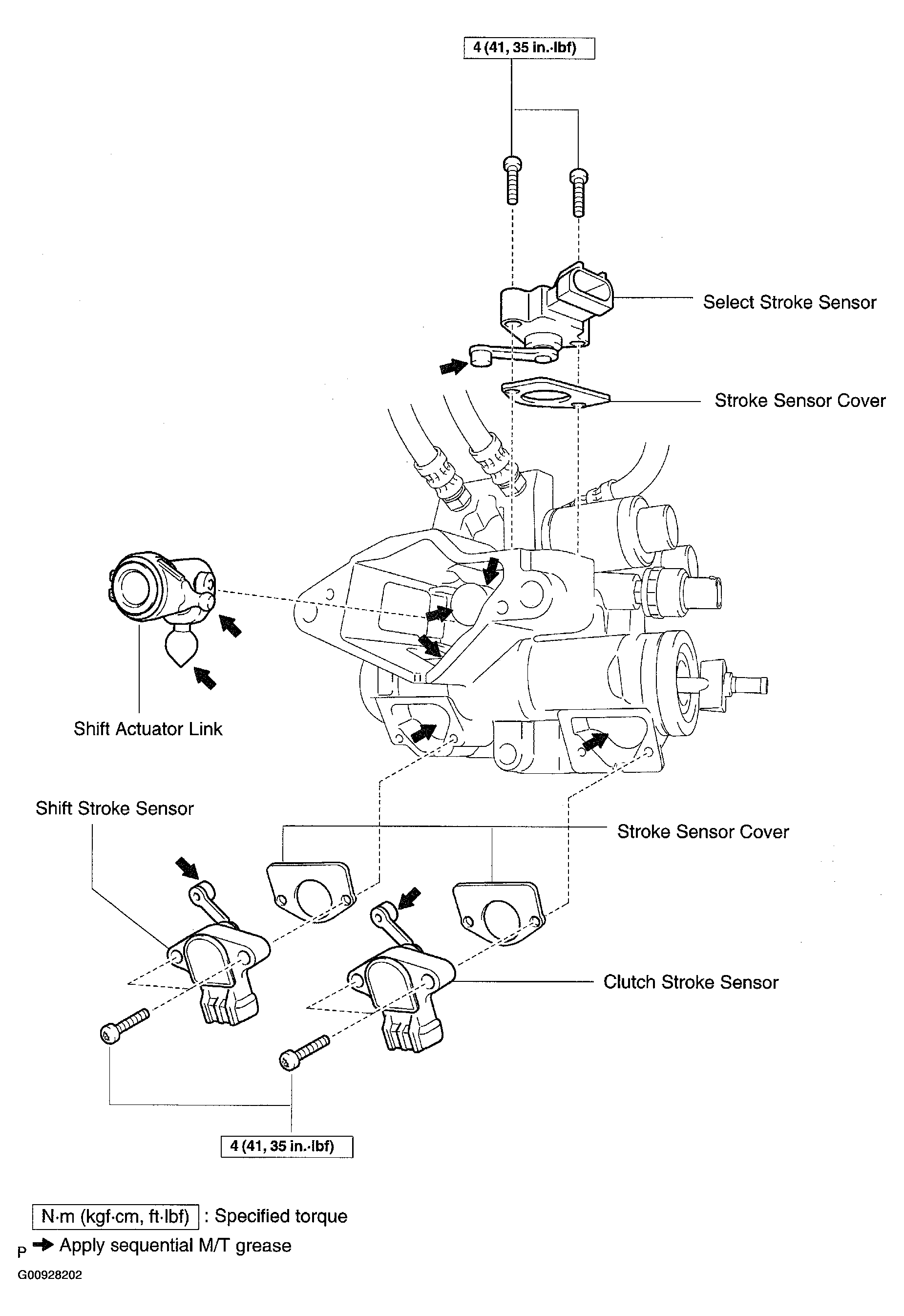

Fig 1: Identifying Gear Shift Actuator Components (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

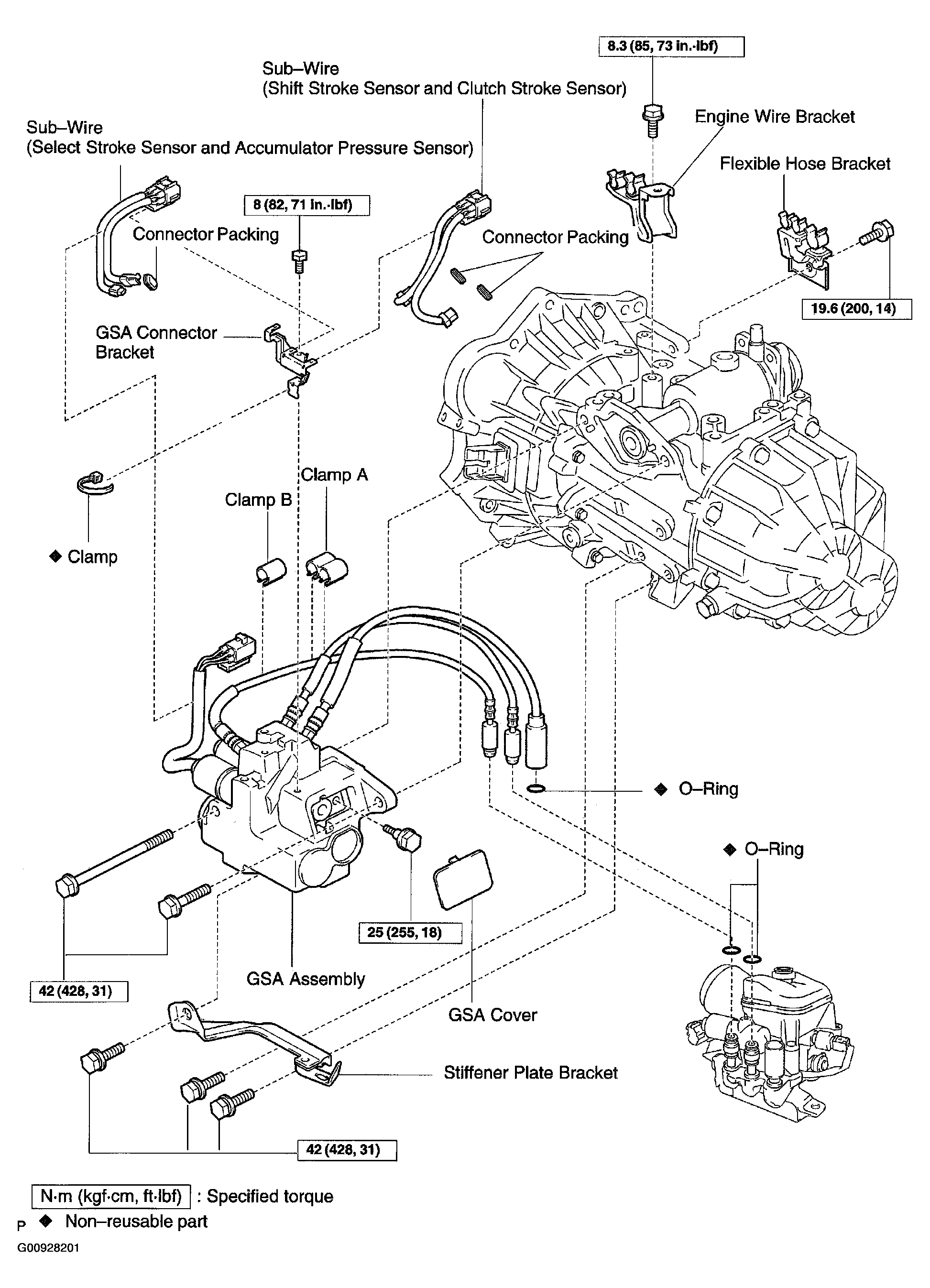

Fig 2: Identifying Gear Shift Actuator Components (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

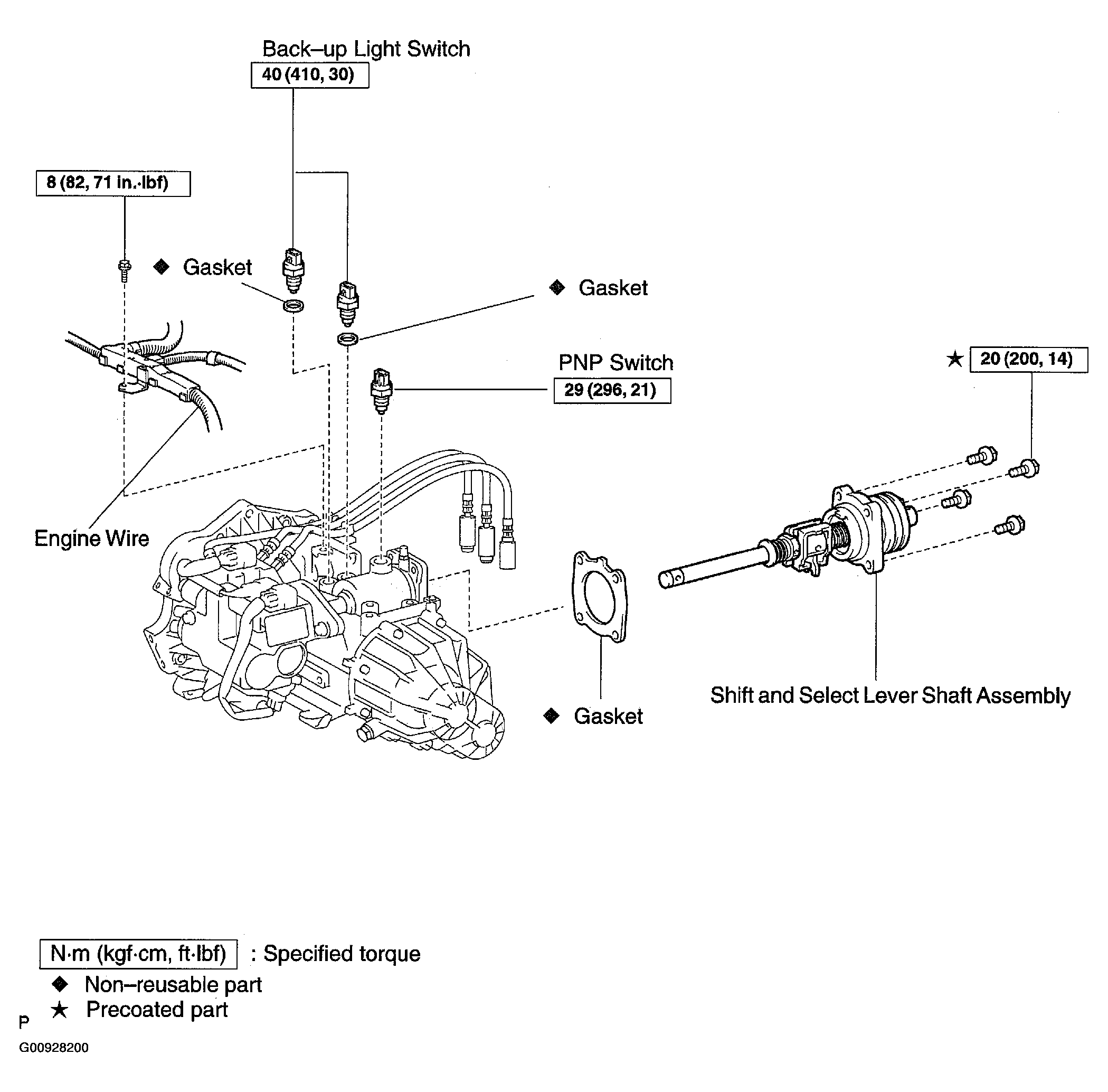

Fig 3: Identifying Gear Shift Actuator Components (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

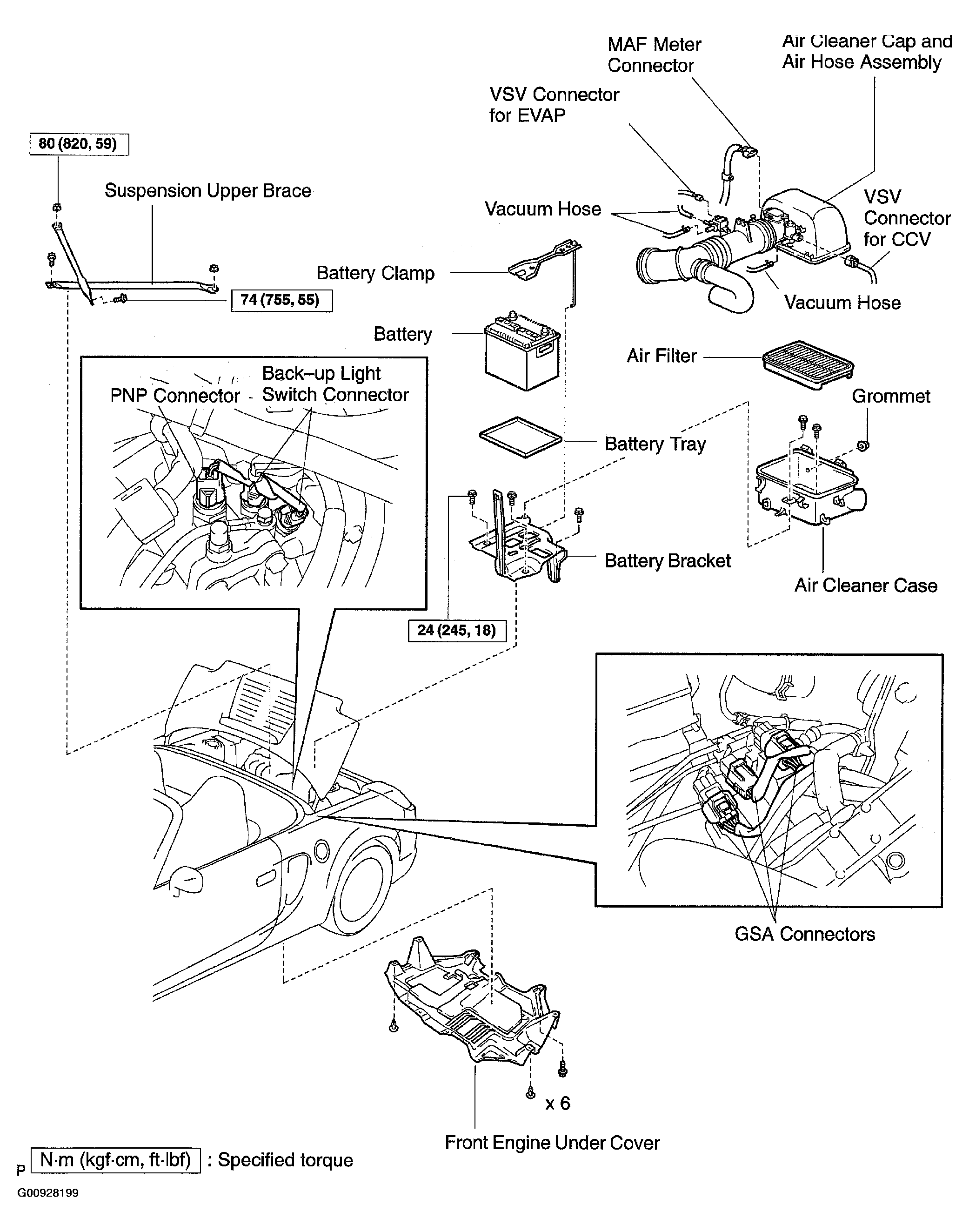

Fig 4: Identifying Gear Shift Actuator Components (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
