Hydraulic Power Unit: Components

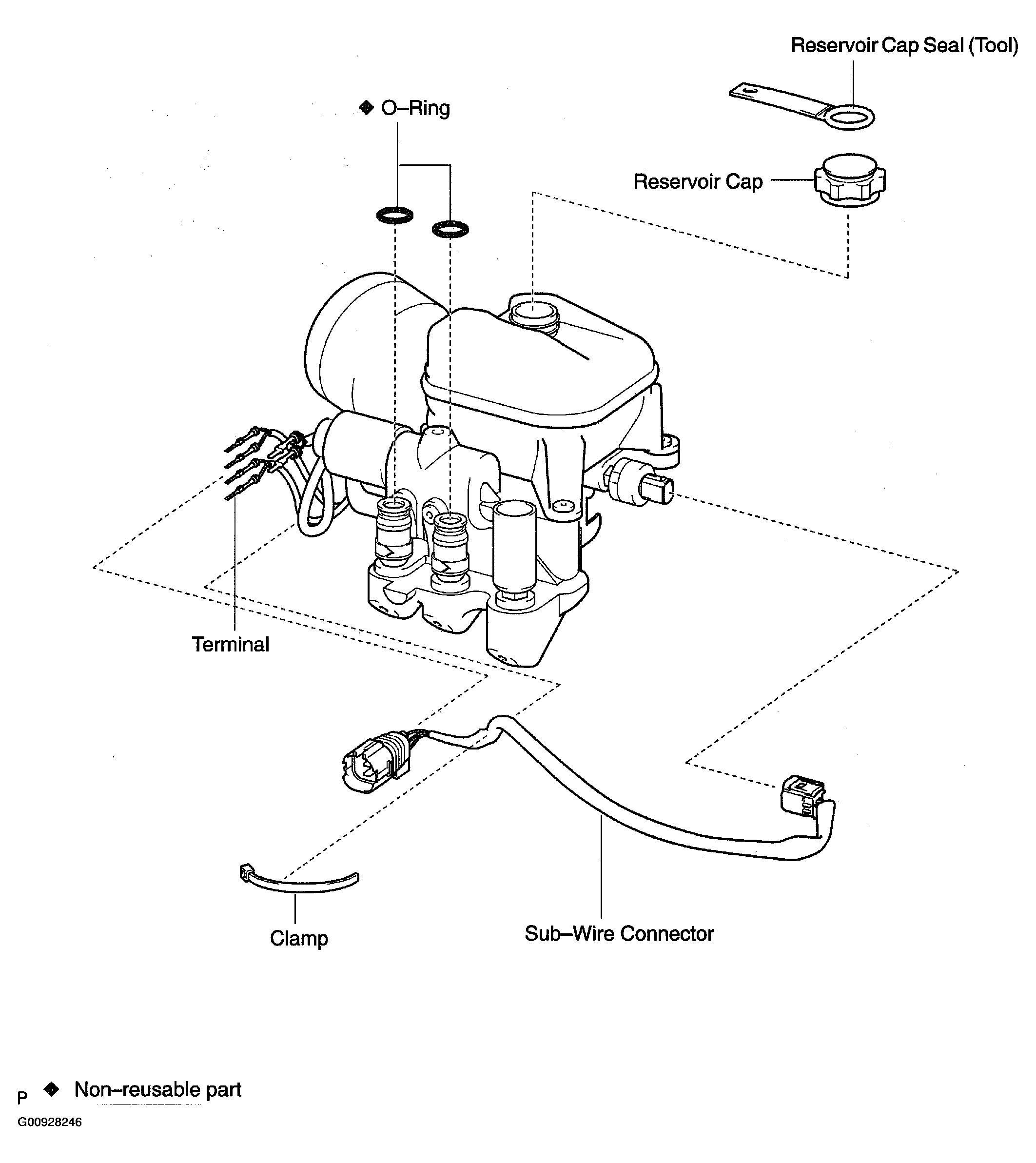

Fig 1: Identifying Hydraulic Power Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

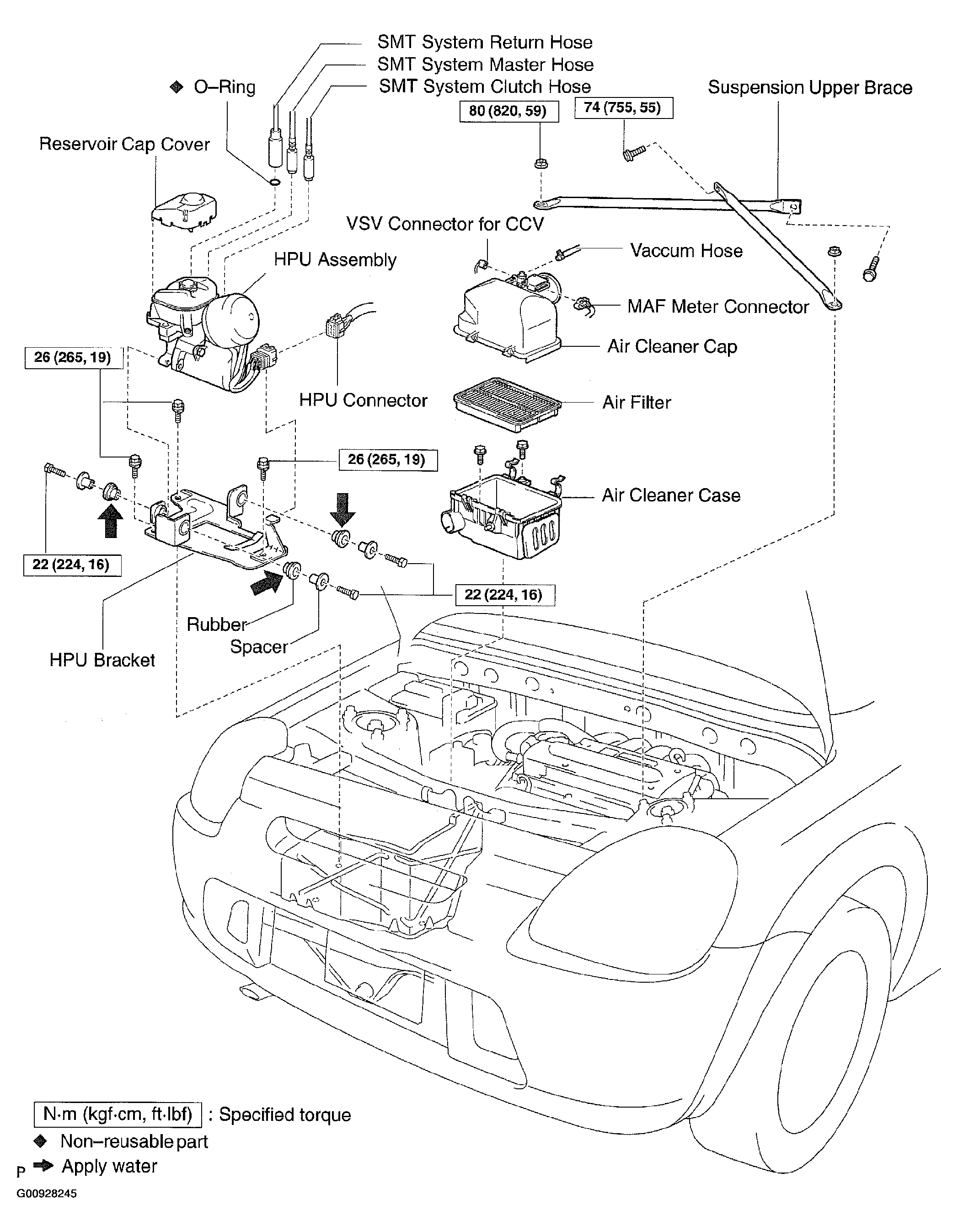

Fig 2: Identifying Hydraulic Power Components (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
