Shift Lever: Removal

REMOVE DRIVER AND PASSENGER SEATS (See )
REMOVE CONSOLE BOX (See )
REMOVE SHIFT LEVER
1. Remove the shift knob.
2. Remove the 3 clamps.
3. Disconnect the shift lever position sensor connector.
4. Disconnect the shift lock with shift illumination lamp connector.
5. Remove the 4 bolts and shift lever.

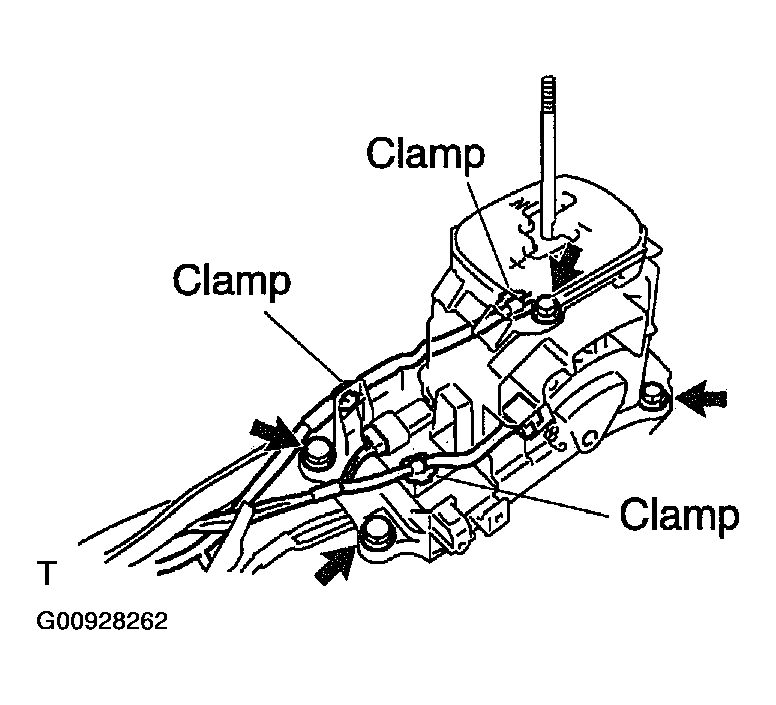

Fig 1: Removing Shift Lever And Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
