Differential Case: Components

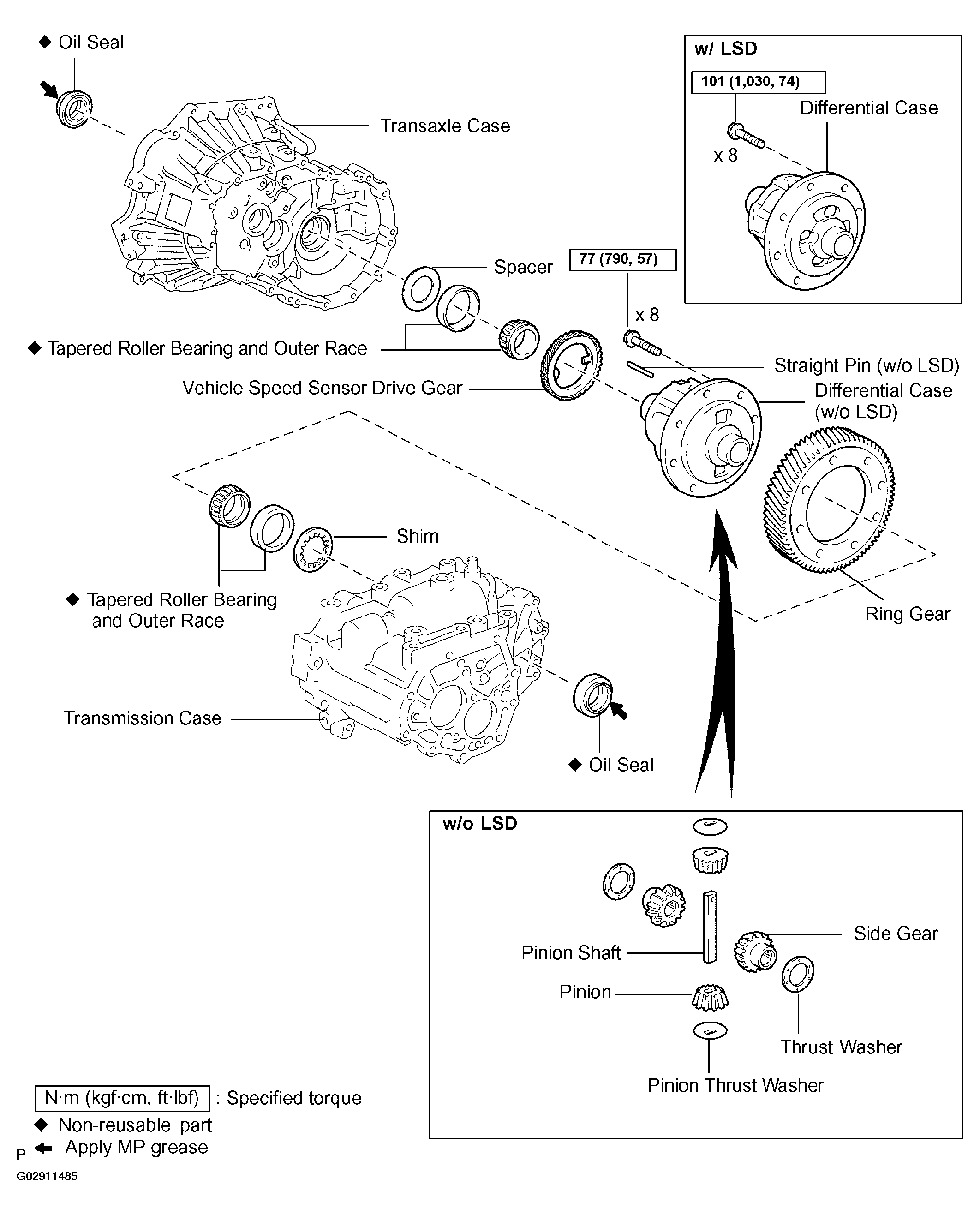

Fig 1: Locating Differential Case Components

G02911485

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
