Manual Transaxle Unit: Components

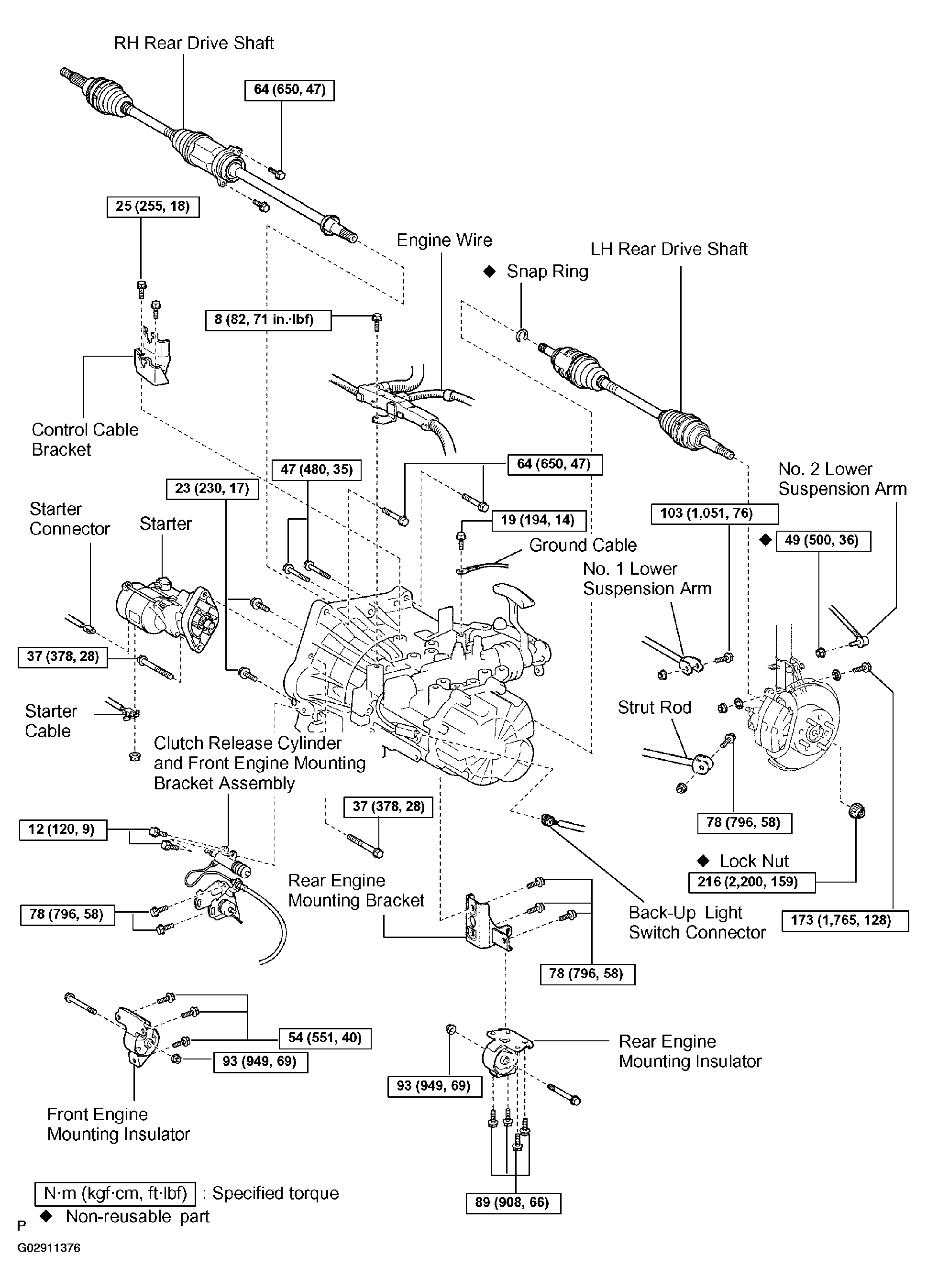

Fig 1: Locating Manual Transaxle Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Locating Manual Transaxle Components (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
