Shift Lever And Control Cable: Components

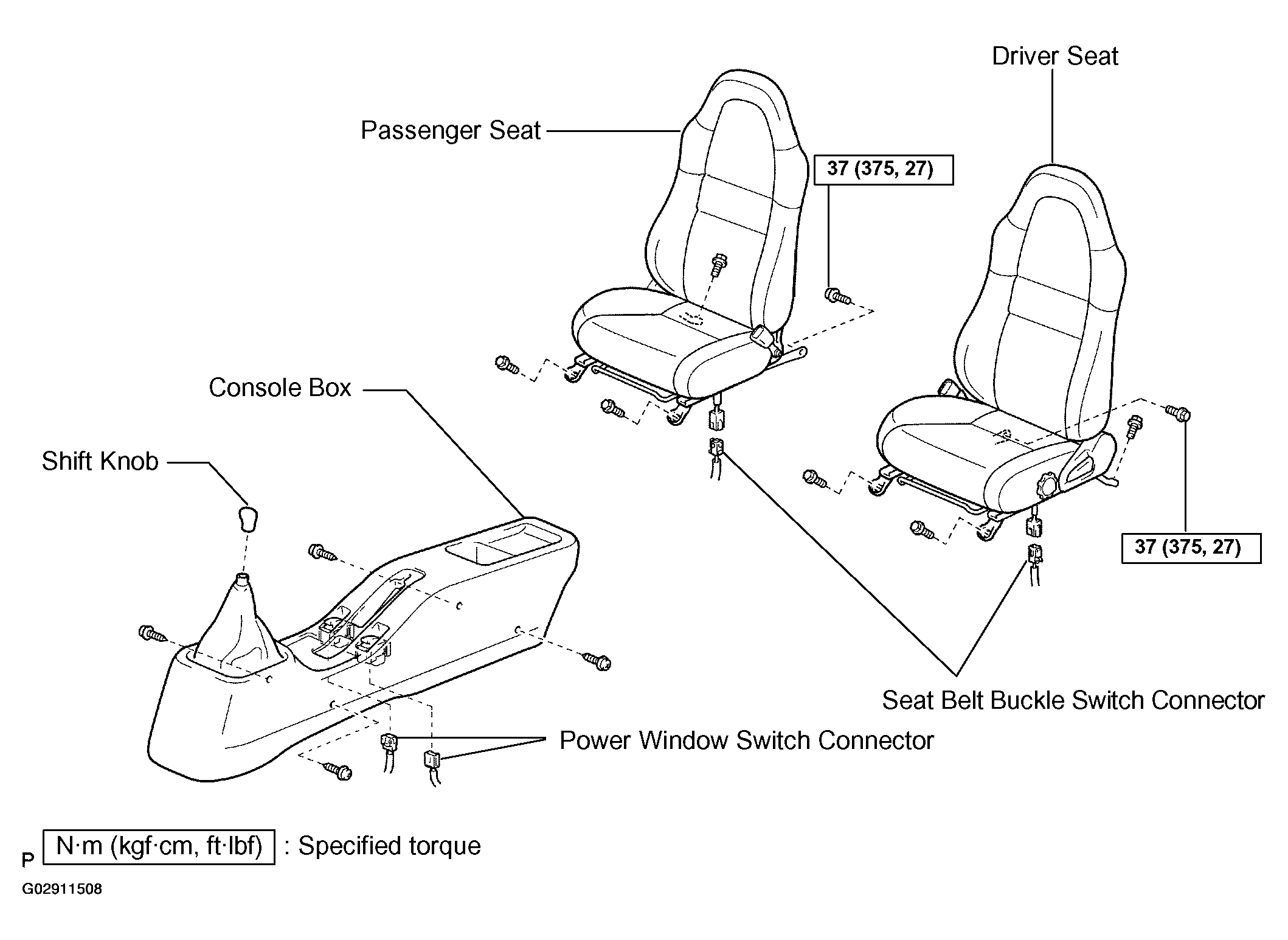

Fig 1: Locating Shift Lever & Control Cable Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

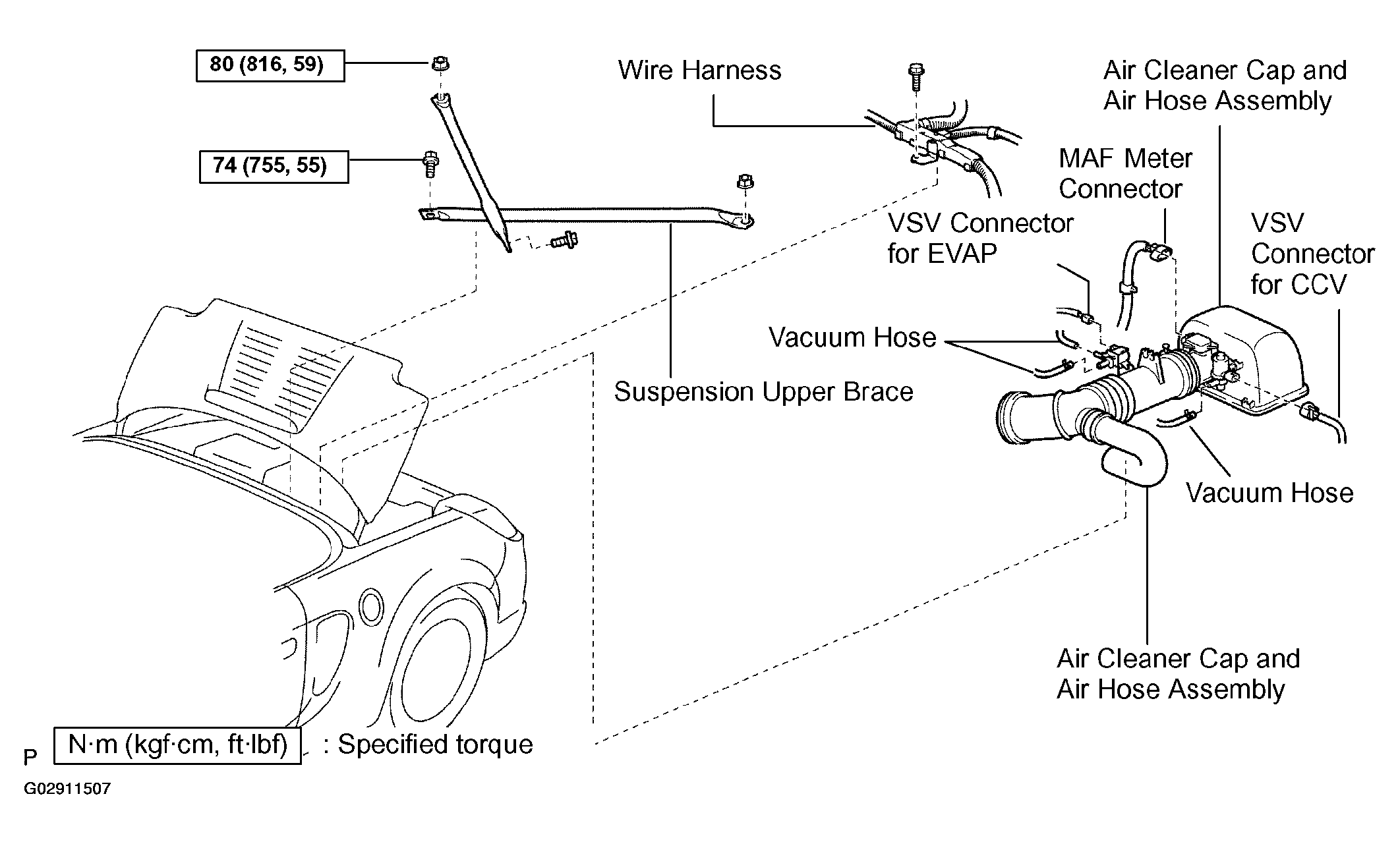

Fig 2: Locating Shift Lever & Control Cable Components (2 Of 3)

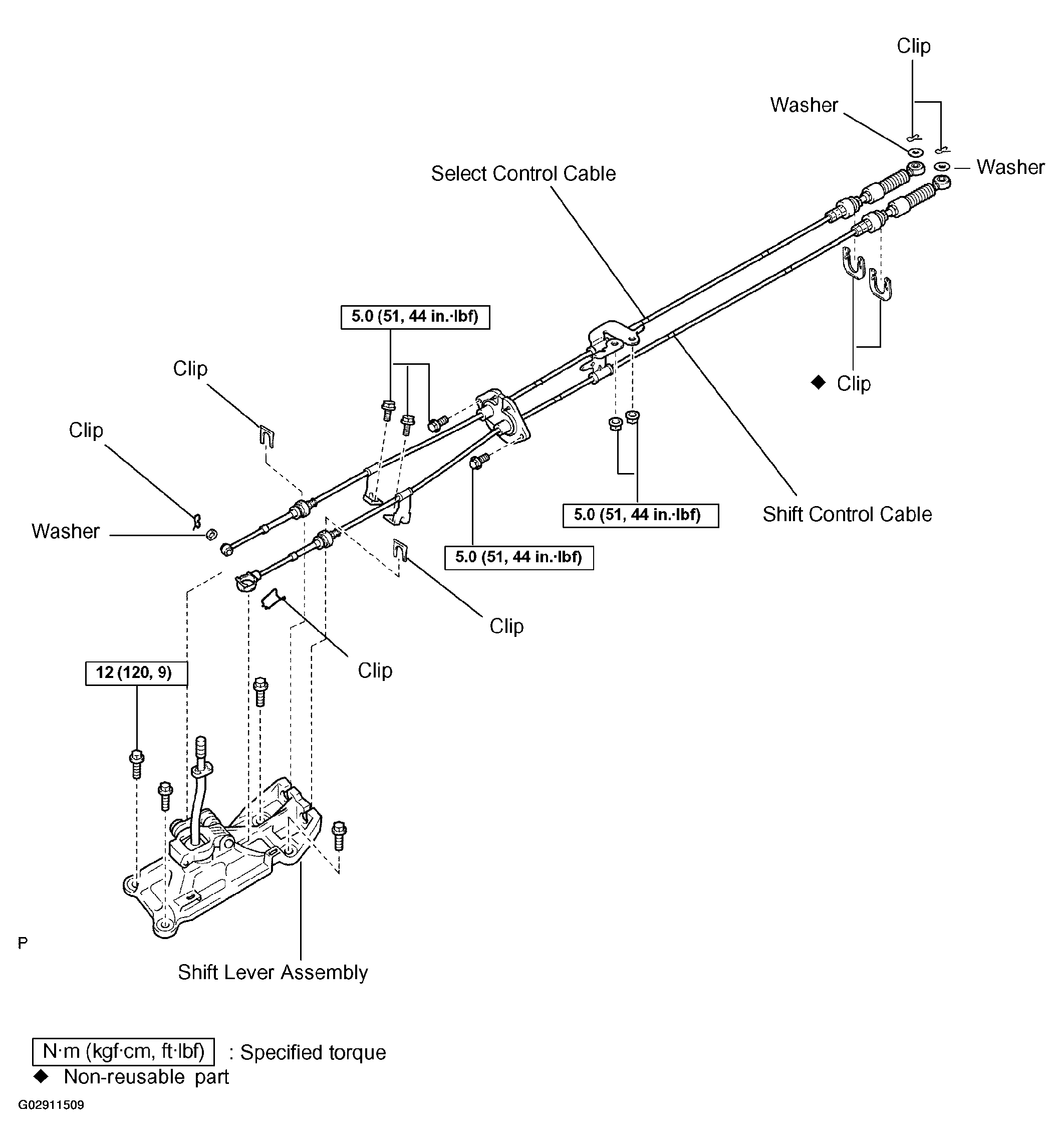

Fig 3: Locating Shift Lever & Control Cable Components (3 Of 3)
