Back Door: Components

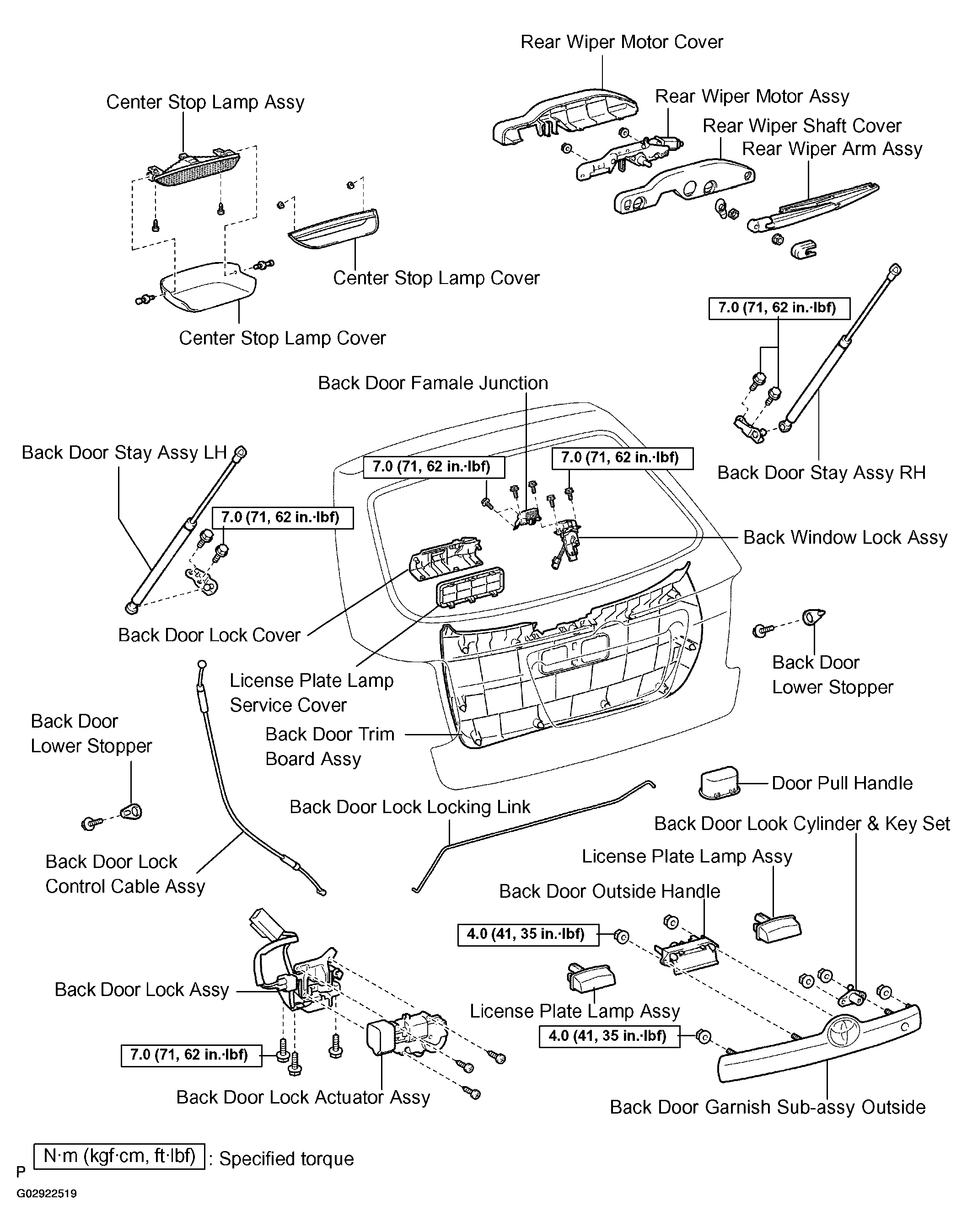

Fig 1: Identifying Components Of Back Door

G02922519

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
