Diagnostic Trouble Code Chart

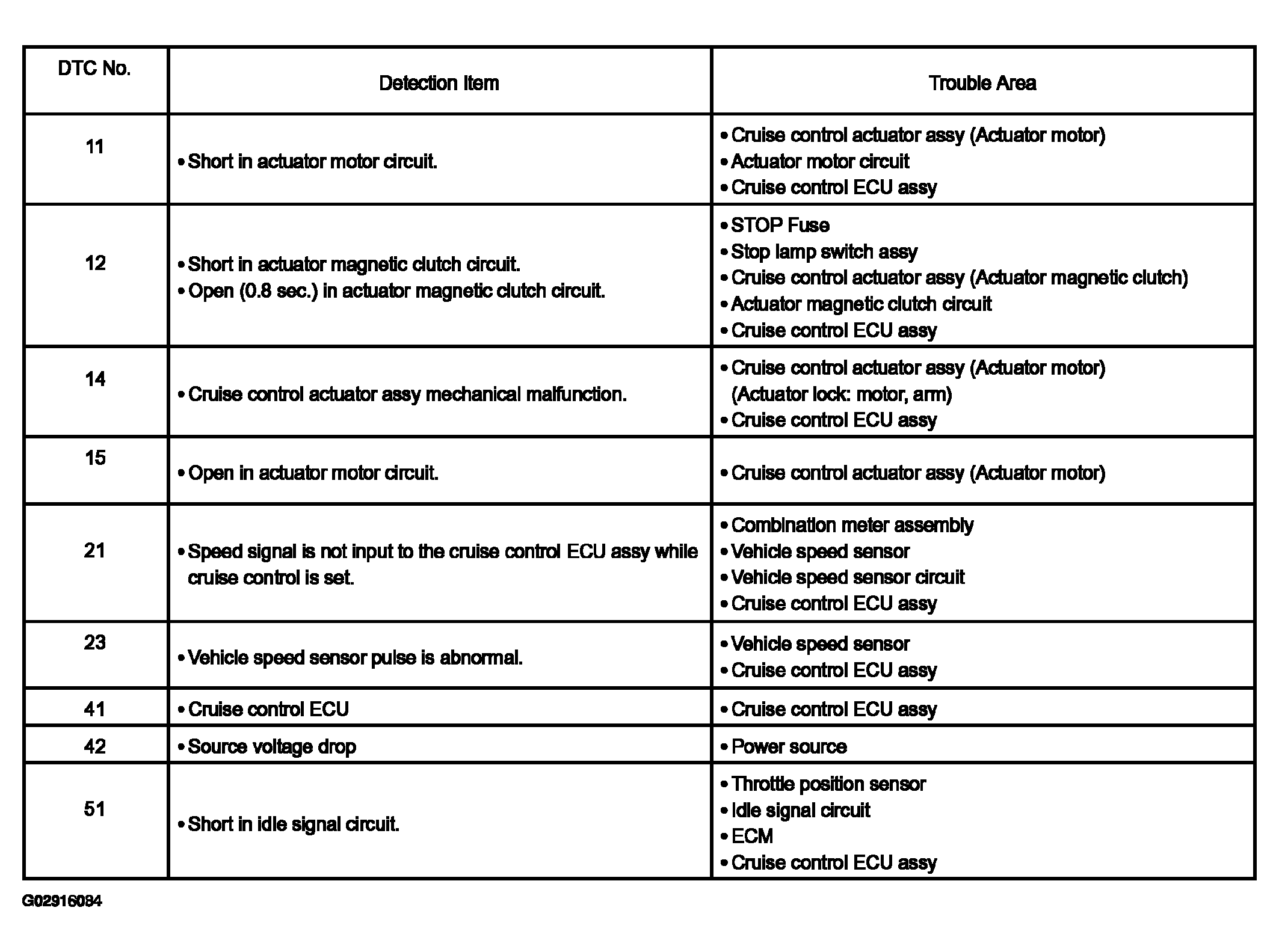

If a malfunction code is displayed during the DTC check, check the circuit listed for that code in Fig 1 and proceed to the appropriate procedure.
