Navigation System - Diagnostics: Location

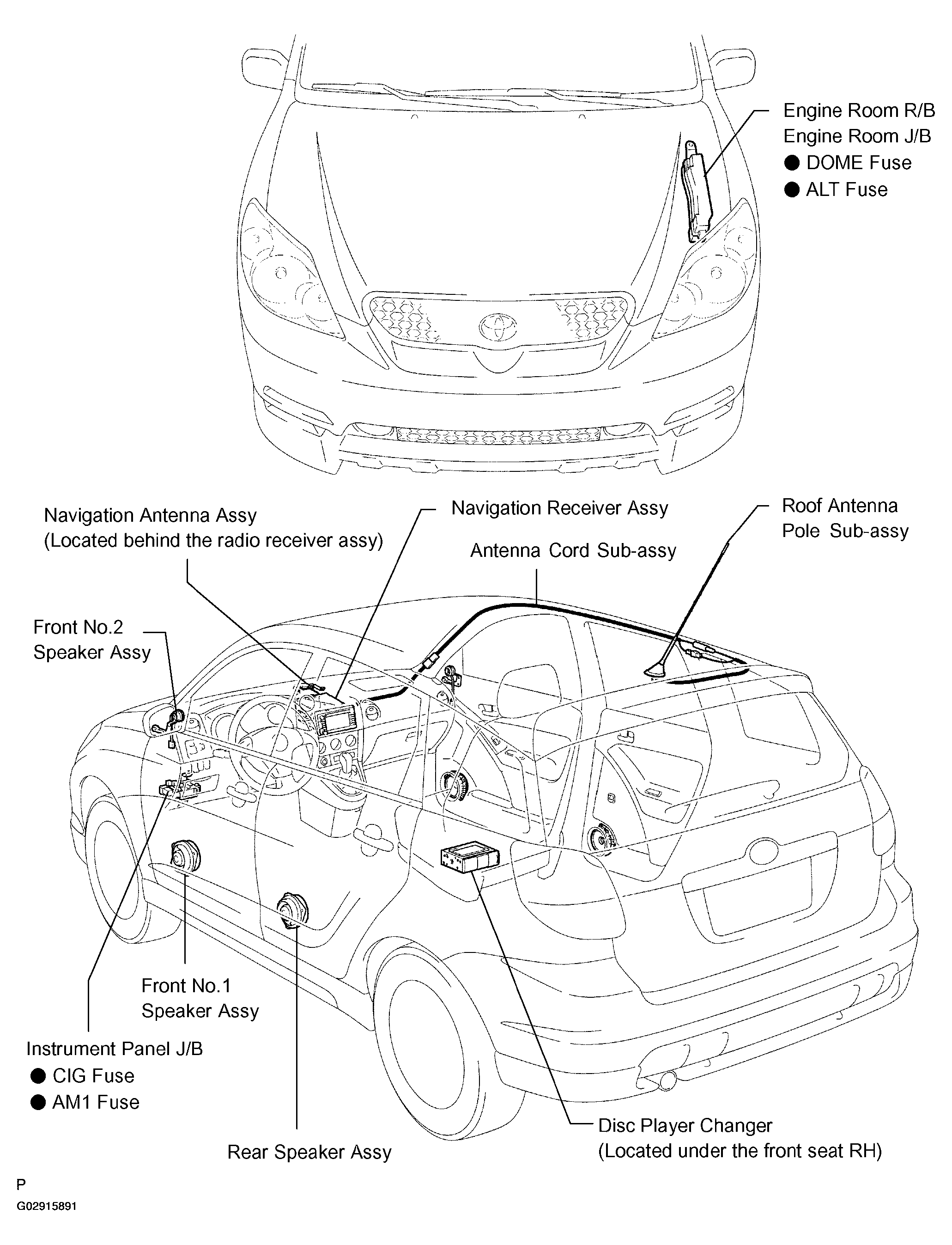

Fig 1: Locating Navigation System Components
G02915891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
