Problem Symptoms Table
Problem Symptoms Table

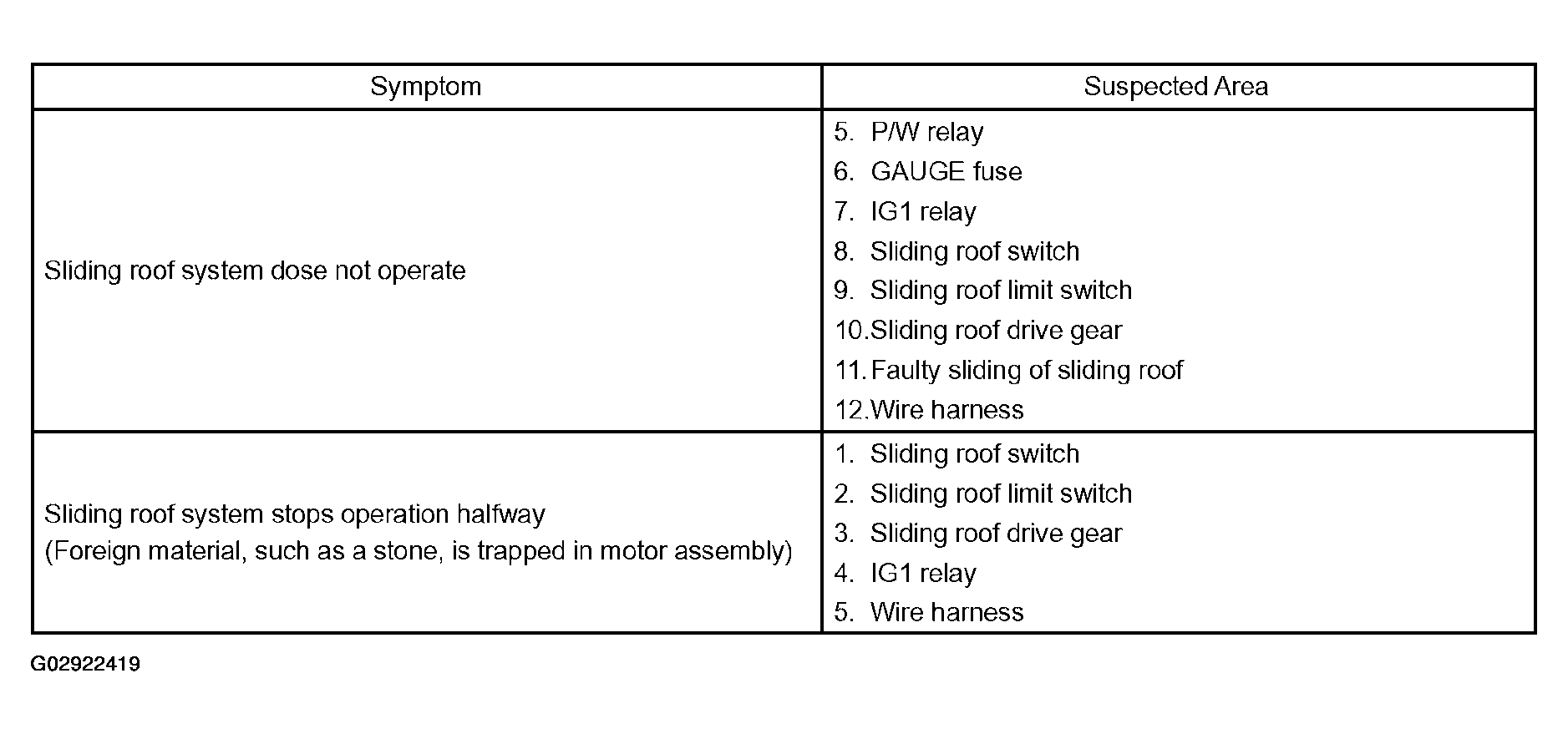

Fig 1: Sliding Roof System Problem Symptoms Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
