Quarter Window Assembly LH: Components

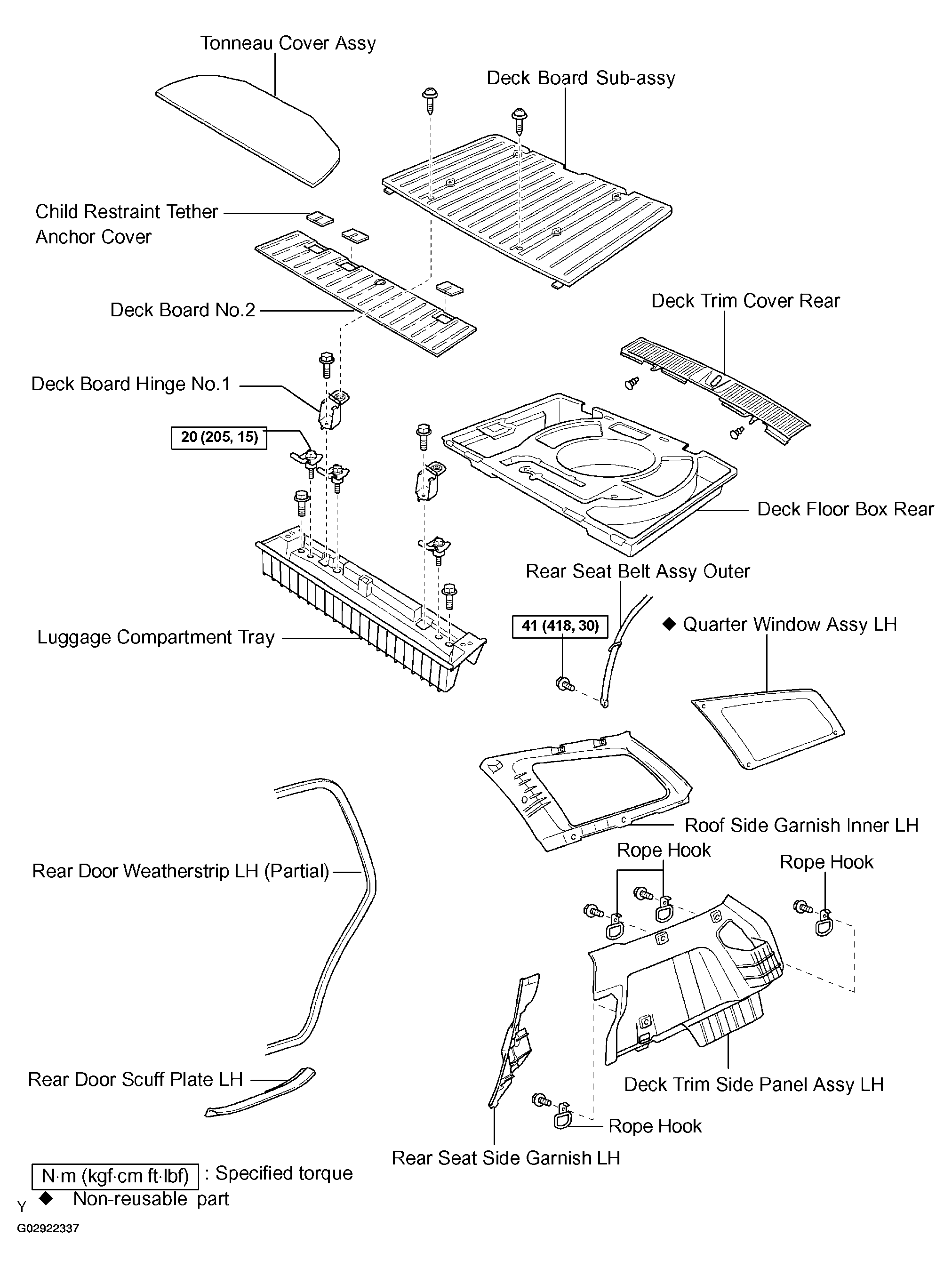

Fig 1: Identifying Quarter Window Assy LH Components
G02922337Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
