Rear Disc Brake: Components

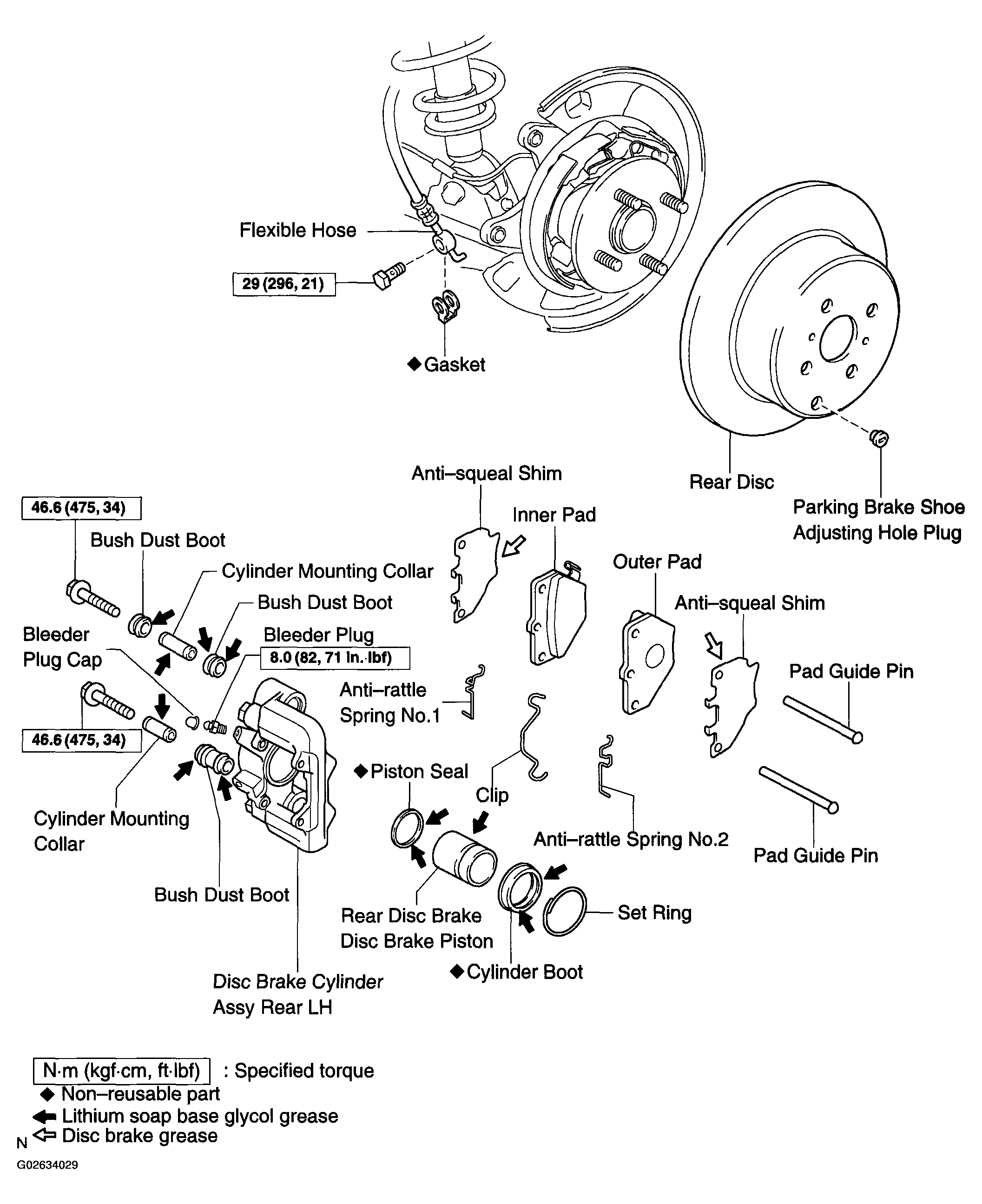

Fig 1: Identifying Rear Disc Brake Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
