2UZ-FE (V8)

TID $04: HO2S HEATER

TLT	CID	Unit Conversion	Description of Test Value	Description of Test Limit
1	$01	Multiply by 0.000076 (A)	Maximum HO2S heater current (bank 1 sensor 1)	Malfunction criterion
1	$02	Multiply by 0.000076 (A)	Maximum HO2S heater current (bank 1 sensor 2)	Malfunction criterion
1	$10	Multiply by 0.000076 (A)	Maximum HO2S heater current (bank 2 sensor 1)	Malfunction criterion
1	$20	Multiply by 0.000076 (A)	Maximum HO2S heater current (bank 2 sensor 2)	Malfunction criterion

FRONT O2S VOLTAGE MONITOR

TEST ID	Description of TEST Data	Conversion Factor	Unit
$07	The minimum voltage	N/A	V
$08	The maximum voltage	N/A	V

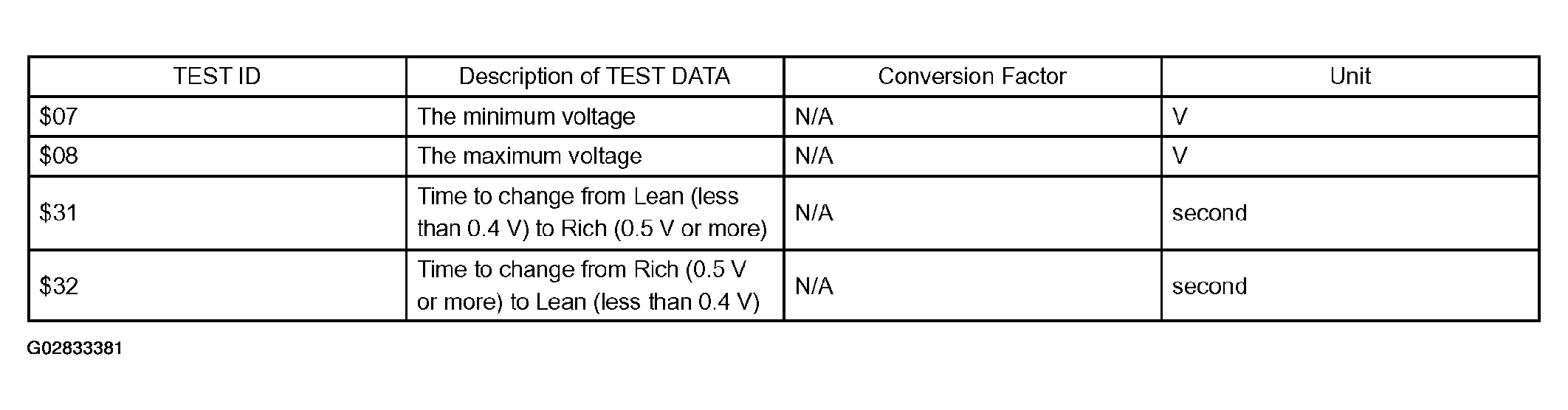

Fig 1: Identifying O2S Test Result Table (Front O2S Voltage Monitor)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

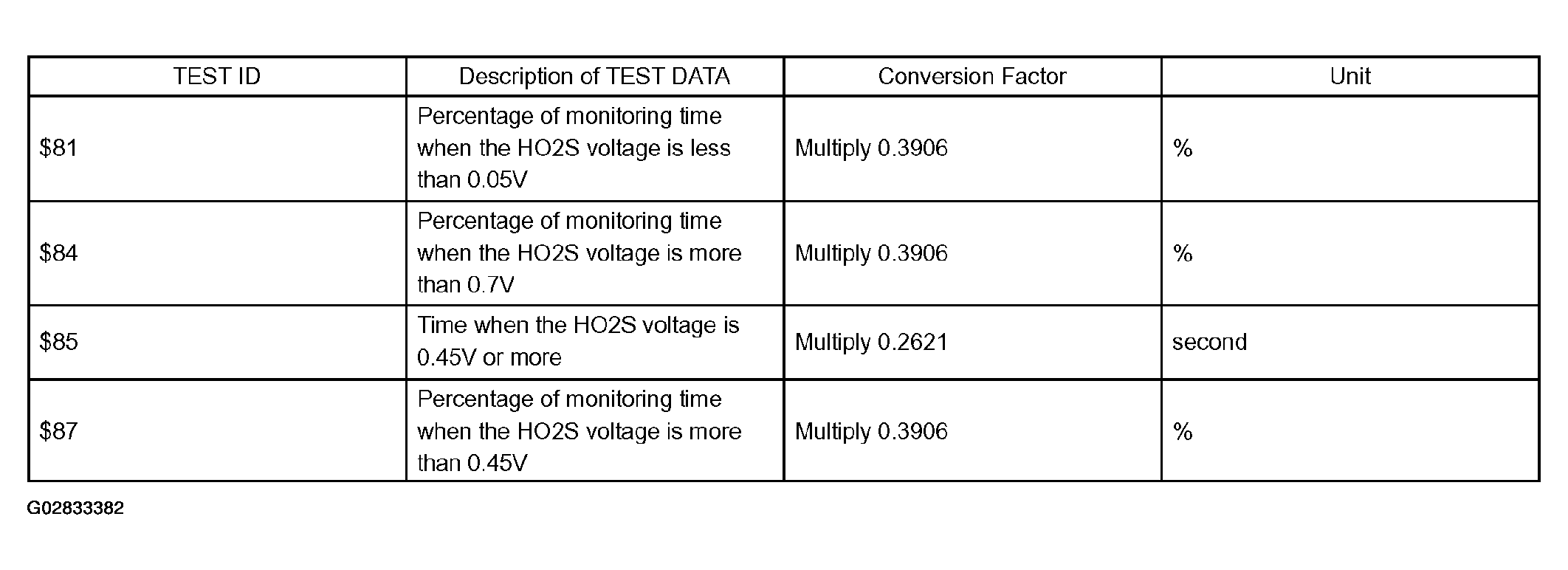

Fig 2: Identifying O2S Test Result Table (Front O2S Frequency Monitor During Engine Idling)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Identifying O2S Test Result Table (Front O2S Frequency Monitor During Vehicle Running)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Identifying O2S Test Result Chart

Fig 5: Identifying Rear O2S Element Monitor Chart

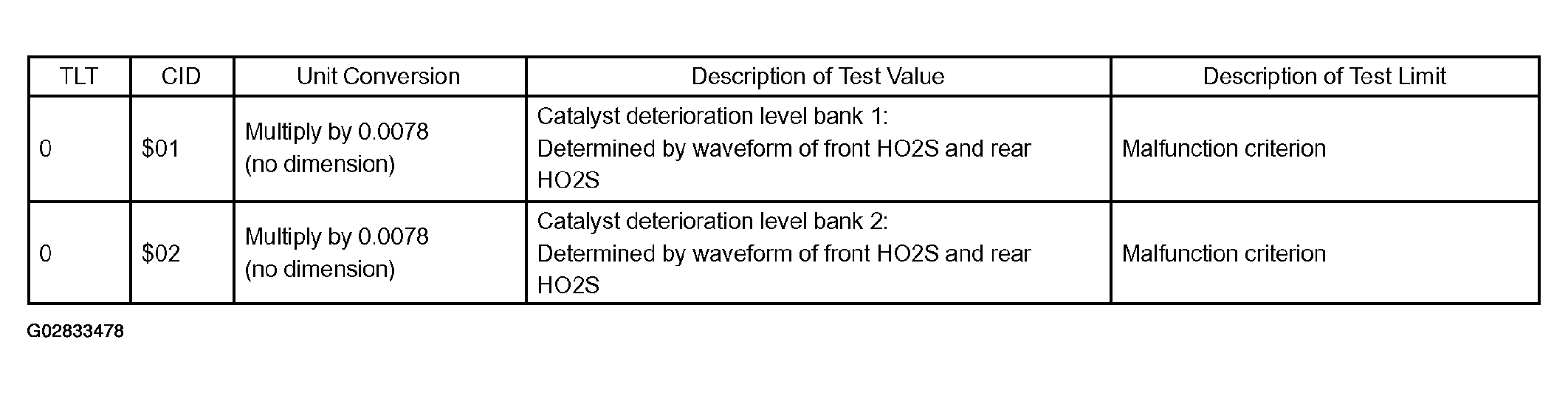

Fig 6: Identifying TID $01: Catalyst- Using Front HO2S & Rear HO2S chart
