Section 1022 (Front Bumper): Front: Components

WARNING: This page is about a different car, the 2004 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

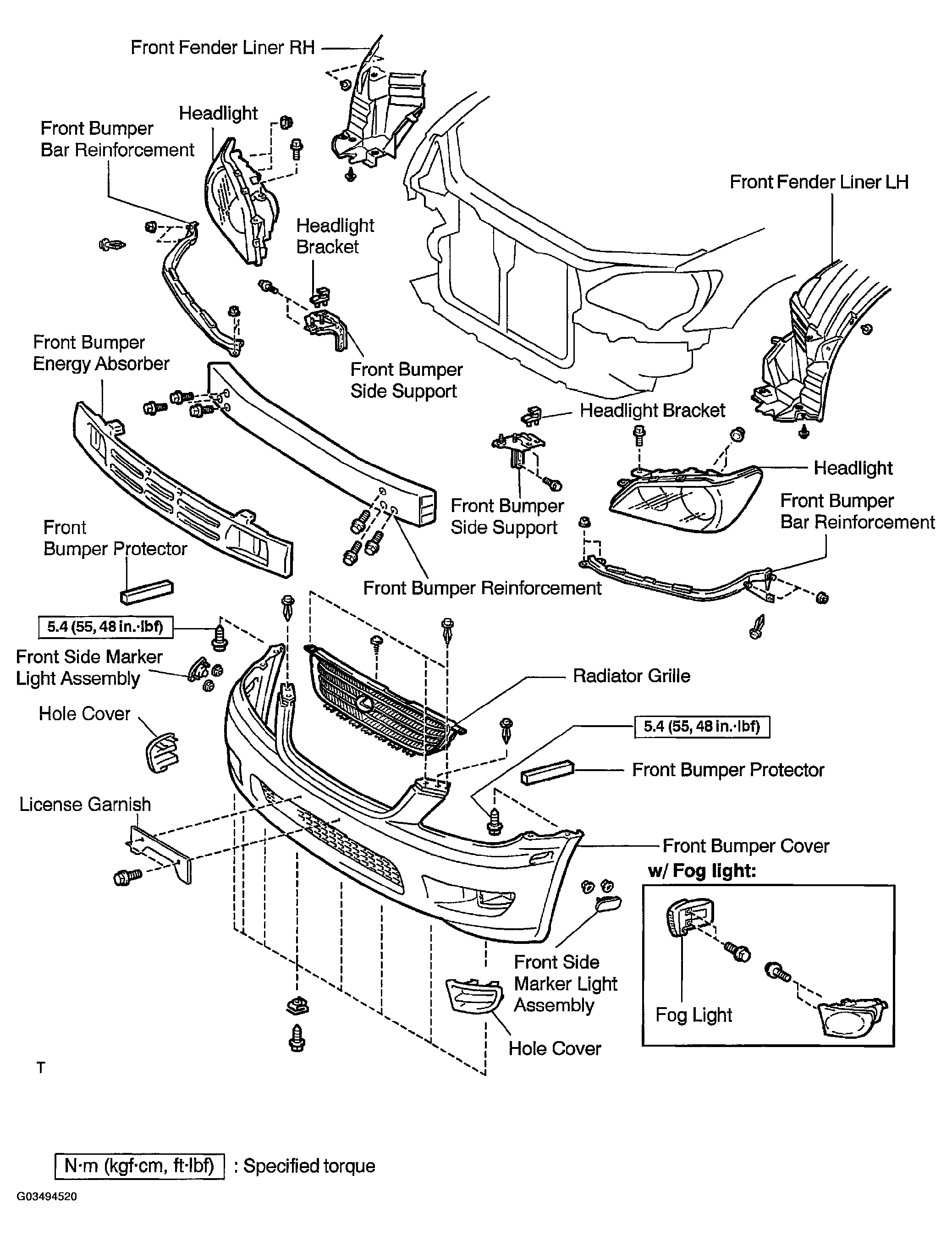

Fig 1: Identifying Front Bumper Components (Sedan Type)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

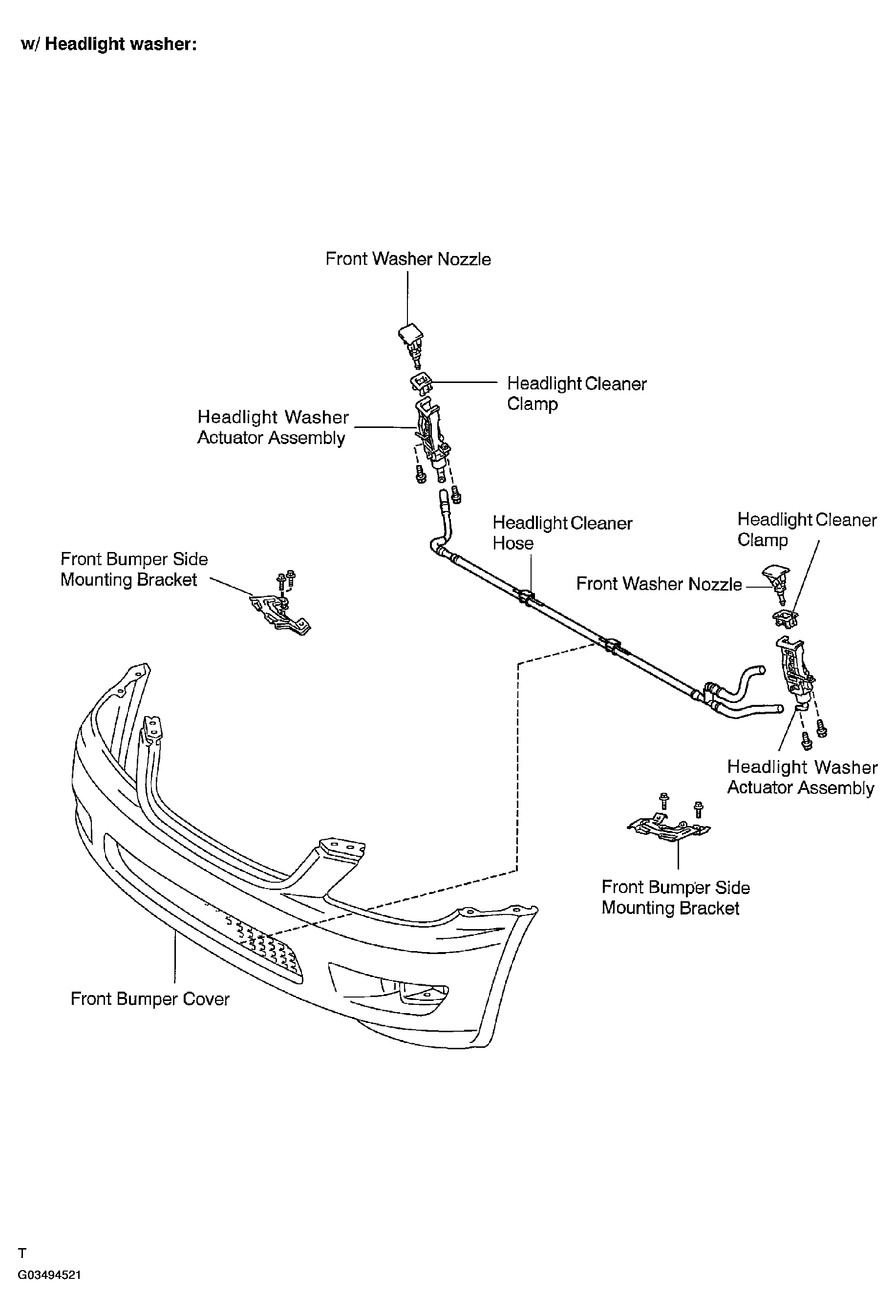

Fig 2: Identifying Front Bumper Components (W/Head Light Washer)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

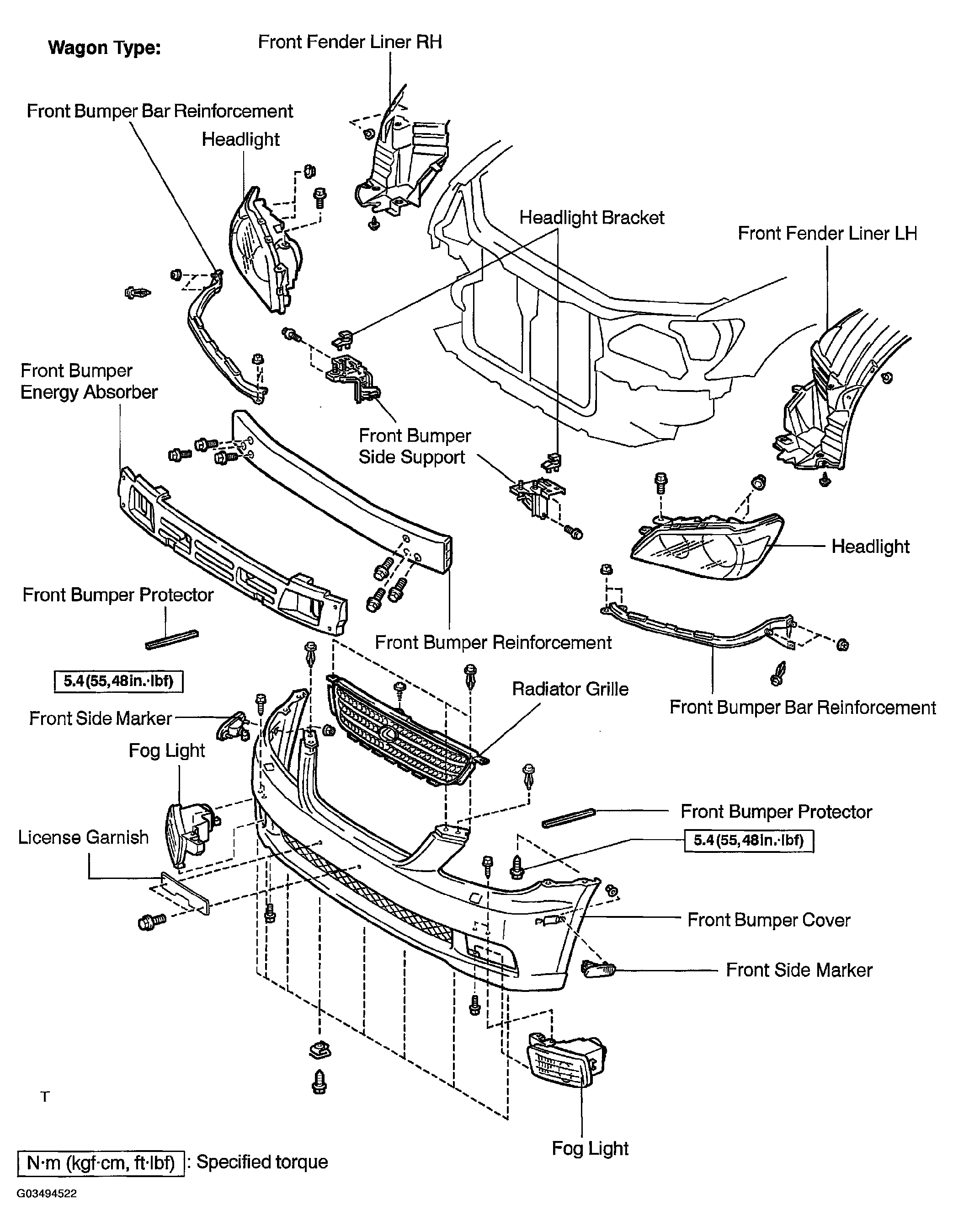

Fig 3: Identifying Front Bumper Components (Wagon Type)

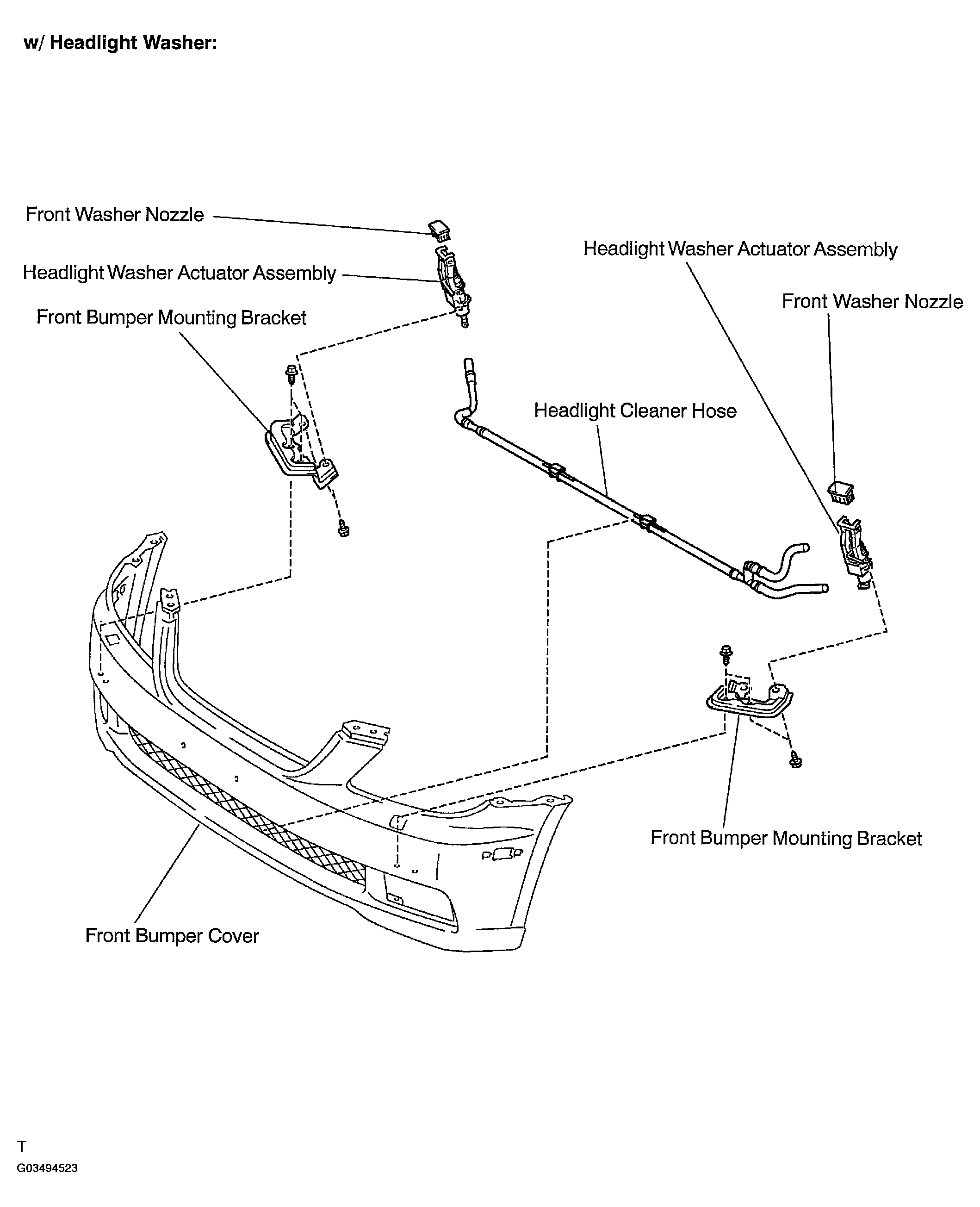

Fig 4: Identifying Front Bumper Components (W/Head Light Washer)
