Air Conditioning System: Location

WARNING: This page is about a different car, the 2004 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

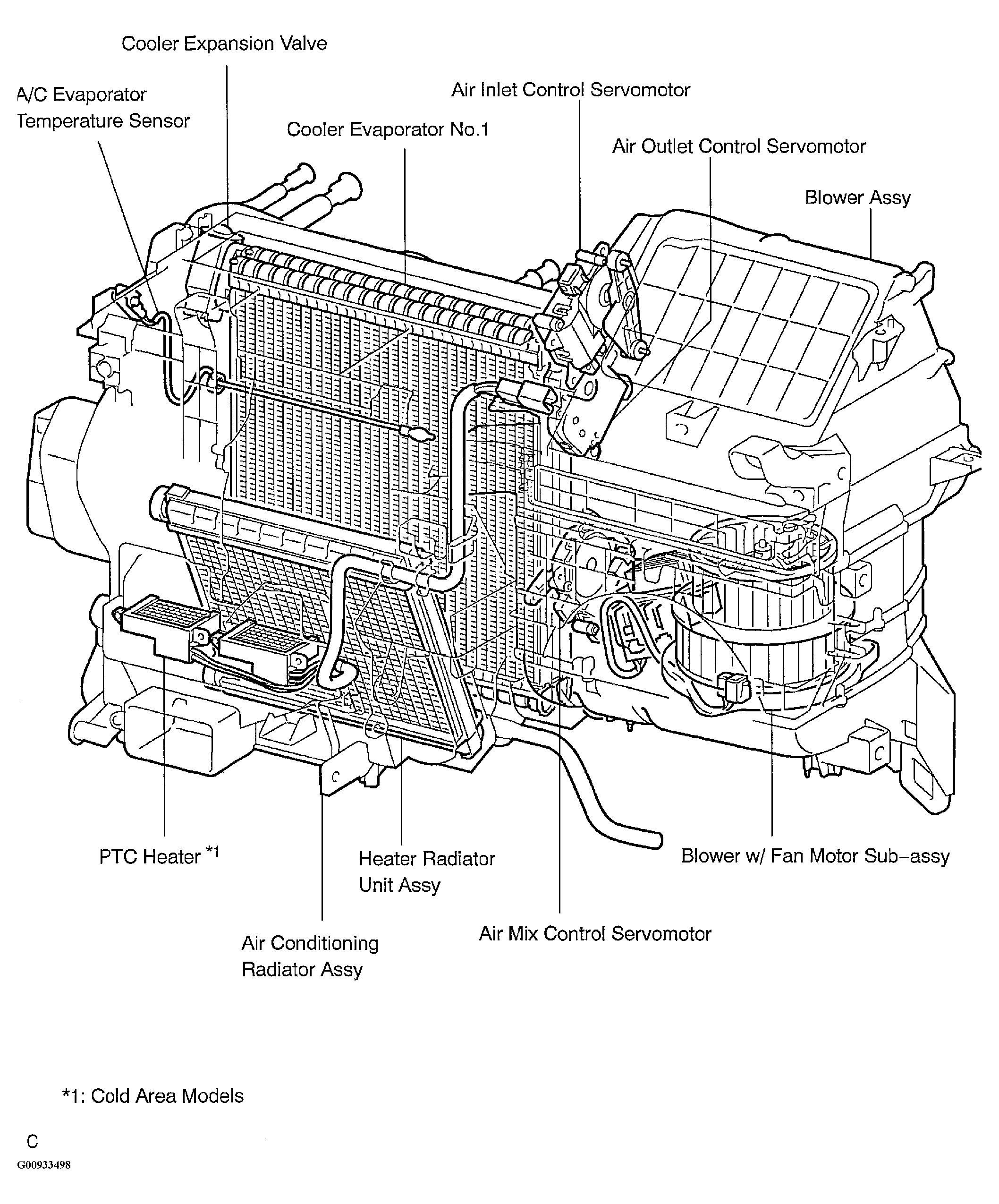

Fig 1: Identifying Location Of Heater & Air Conditioner Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

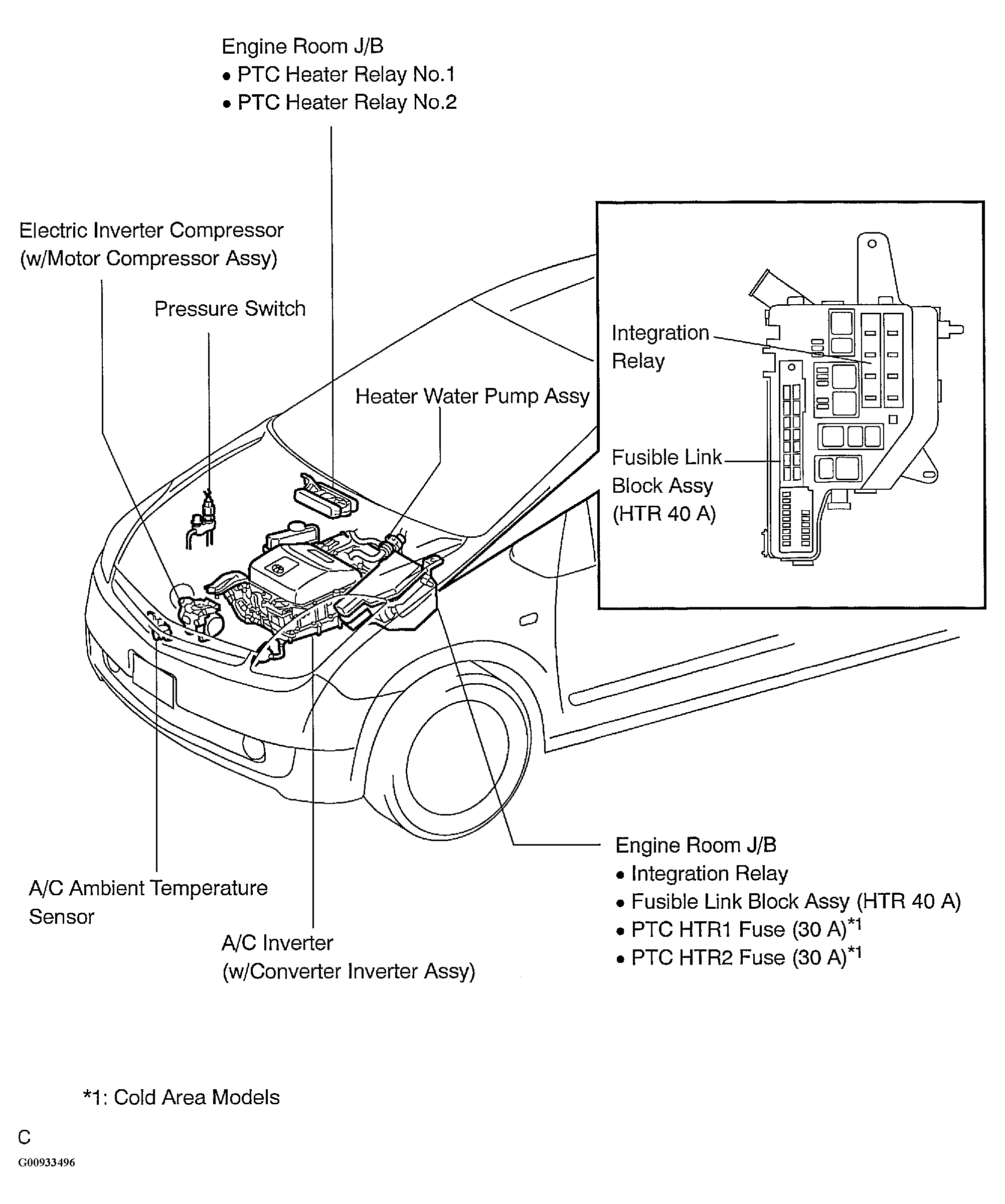

Fig 2: Identifying Location Of Heater & Air Conditioner Components (2 Of 3)

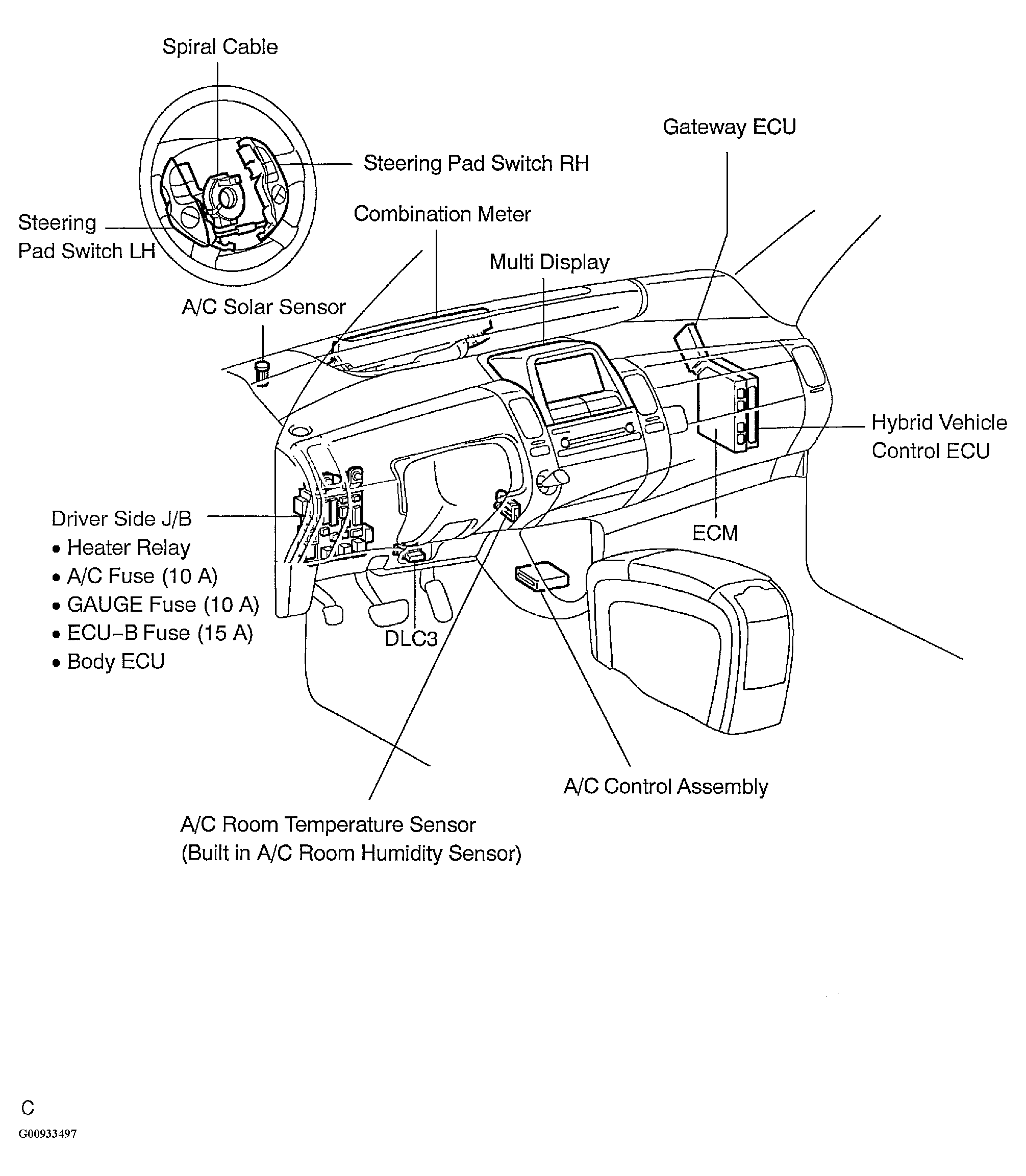

Fig 3: Identifying Location Of Heater & Air Conditioner Components (3 Of 3)
