Section 1045 (Back Door): Overhaul

HINT:

• The installation procedures are the removal procedures in reverse order. However, only installation procedures requiring additional information are included.
• A bolt without a torque specification is shown in the standard bolt chart (see SPECIFIED TORQUE FOR STANDARD BOLTS ).

1. REMOVE BACK DOOR TRIM BOARD ASSY
   1. Using a screwdriver, disengage the 11 clips and remove the trim board.

   HINT:

   Tape the screwdriver tip before use.

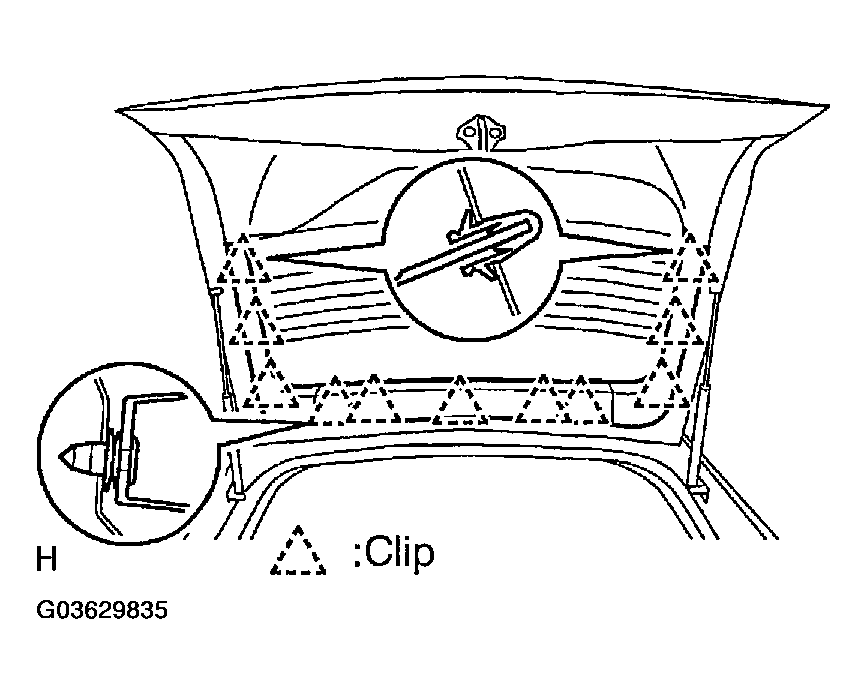

   Fig 1: Disengaging 11 Clips

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. REMOVE BACK DOOR TRIM BOARD
   1. Using a screwdriver, disengage the 5 clips and remove the trim board.

   HINT:

   Tape the screwdriver tip before use.

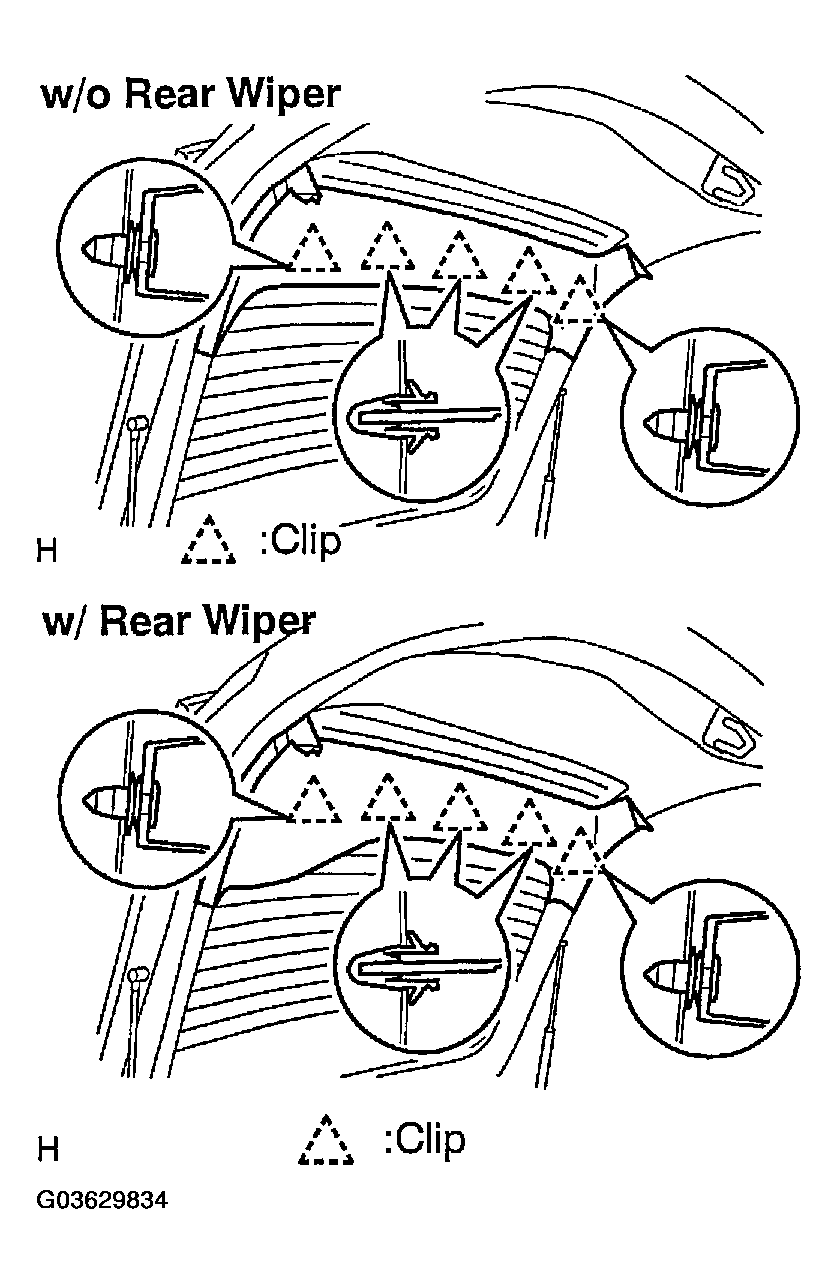

   Fig 2: Disengaging 5 Clips

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. REMOVE BACK DOOR TRIM PANEL ASSY UPPER
   1. Using a screwdriver, disengage the 5 clips and remove the trim panel.

   HINT:

   Tape the screwdriver tip before use.

4. REMOVE BACK DOOR SIDE GARNISH LH
   1. Using a screwdriver, disengage the 3 clips and remove the garnish.

   HINT:

   Tape the screwdriver tip before use.

   Fig 3: Disengaging Clips

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. REMOVE BACK DOOR SIDE GARNISH RH
   1. Using a screwdriver, disengage the 3 clips and remove the garnish.

   HINT:

   Tape the screwdriver tip before use.

6. REMOVE REAR SPOILER SUB-ASSY (See  REPLACEMENT  )
7. REMOVE REAR WIPER MOTOR ASSY (See  REAR WIPER MOTOR ASSY  )
8. REMOVE BACK DOOR GARNISH SUB-ASSY OUTSIDE
9. REMOVE TELEVISION CAMERA ASSY (See  PRECAUTION  )
10. REMOVE LICENSE PLATE LAMP ASSY (See  REPLACEMENT  )
11. REMOVE BACK DOOR LOCK STRIKER ASSY
    1. Using a screwdriver, disengage the 2 claws and remove the cover.
       Fig 4: Disengaging 2 Claws

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a torx wrench (T40), remove the 2 screws and striker.
    Fig 5: Removing 2 Screws & Striker

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
12. REMOVE BACK DOOR STAY ASSY LH (See  REPLACEMENT  )
13. REMOVE BACK DOOR STAY ASSY RH (See  REPLACEMENT  )
14. REMOVE DECK TRIM COVER REAR
15. REMOVE BACK DOOR STOPPER LOWER
    1. Remove the bolt and stopper LH and RH.
    Fig 6: Removing Bolt & Stopper LH & RH

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
16. REMOVE BACK DOOR LOCK ASSY
    1. Disconnect the connector.
    2. Remove the 3 bolts and door lock.
    Fig 7: Removing 3 Bolts & Door Lock

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
17. INSTALL BACK DOOR LOCK ASSY
    1. Install the door lock with the 3 bolts.

       Torque: 7.5 N.m (76 kgf.cm, 75 in.lbf)

    2. Adjust the door lock (see ADJUSTMENT ).
    Fig 8: Installing Door Lock With 3 Bolts

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
18. REMOVE BACK DOOR STOPPER LOWER
    1. Install the stopper with the bolt LH and RH.

       Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

    Fig 9: Installing Stopper With Bolt LH & RH

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
19. INSTALL BACK DOOR LOCK STRIKER ASSY
    1. Using a torx wrench (T40), install the striker with the 2 screws.

       Torque: 23 N.m (235 kgf.cm, 16 ft.lbf)

    2. Install the cover.
    Fig 10: Installing Striker With 2 Screws

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
