COMPONENT LOCATIONS
| Component | Location |
|---|---|

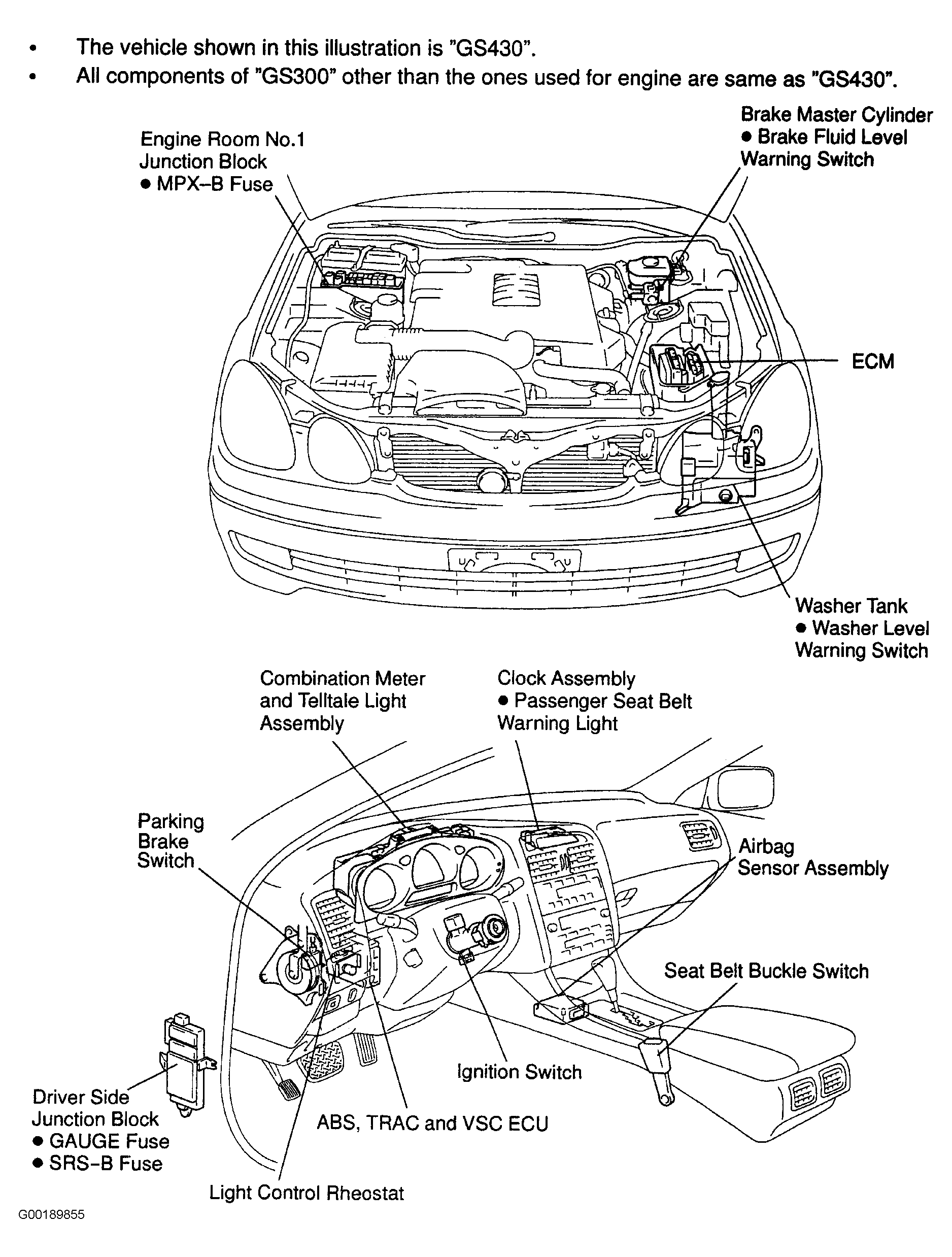

| ABS, TRAC & VSC ECU | Fig 1 |
| Air Bag Sensor Assembly | Fig 1 |
| Combination Meter & Telltale Light Assembly | Fig 1 |
| Brake Fluid Level Warning Switch | Fig 1 |
| Driver Side Junction Block | Fig 1 |
| ECM | Fig 1 |

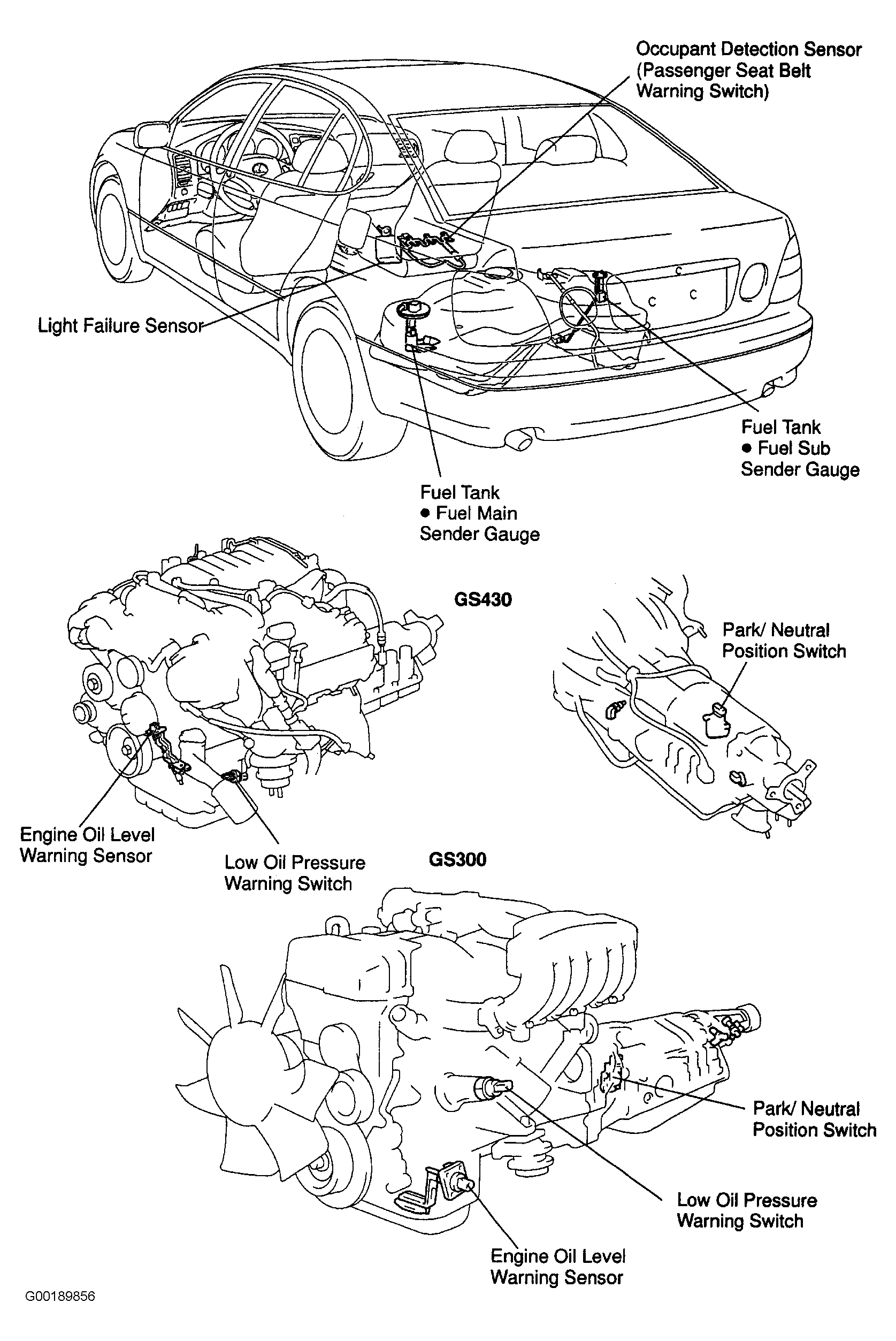

| Engine Oil Level Warning Sensor | Fig 2 |
| Engine Room No. 1 Junction Block | Fig 1 |
| Fuel Main Sender Gauge | Fig 2 |
| Fuel Sub Sender Gauge | Fig 2 |
| GAUGE Fuse | Fig 1 |
| Ignition Switch | Fig 1 |
| Light Control Rheostat | Fig 1 |
| Light Failure Sensor | Fig 2 |
| Low Oil Pressure Warning Switch | Fig 2 |
| MPX-B Fuse | Fig 1 |
| Occupant Detection Sensor (Passenger Seat Belt Warning Switch) | Fig 2 |
| Park/Neutral Position Switch | Fig 2 |
| Parking Brake Switch | Fig 1 |
| Passenger Seat Belt Warning Light | Fig 1 |
| Seat Belt Buckle Switch | Fig 1 |
| SRS-B Fuse | Fig 1 |
| Washer Level Warning Switch | Fig 1 |
