Tilt Steering Column: Inspection

WARNING: This page is about a different car, the 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

Inspect Steering Lock Operation.
Check that the steering lock mechanism operates properly.

Fig 1: Testing Steering Lock
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
If Necessary, Replace Key Cylinder.
1. Place the ignition key at the ACC position.
2. Push down the stop pin with a screwdriver, and pull out the cylinder.

  Fig 2: Removing Key Cylinder
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install a new cylinder.
Inspect Ignition Switch .
If Necessary, Replace Ignition Switch.
1. Remove the 2 screws and ignition switch.
2. Install a new ignition switch with the 2 screws.
Inspect Key Unlock Warning Switch .
If Necessary, Replace Key Unlock Warning Switch.
1. Slide out the key unlock warning switch.
2. Install a new key unlock warning switch.
Inspect Transponder Key Coil .
If Necessary, Replace Transponder Key Coil.
If Necessary, Replace Transponder Key Amplifier.
1. Remove the screw and transponder key amplifier.
2. Install a new transponder key amplifier with the screw.
Inspect Bearing.
1. Check the bearing rotation condition and check for abnormal noise.

  Fig 3: Inspecting Bearing Rotation
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If faulty, replace the column housing.
2. Coat the bearing with molybdenum disulfide lithium base grease.
If Necessary, Replace Shaft Bearing.

Using SST, press out the shaft bearing.
SST 09950-60010 (09951-00400), 09950-70010 (09951-07360).

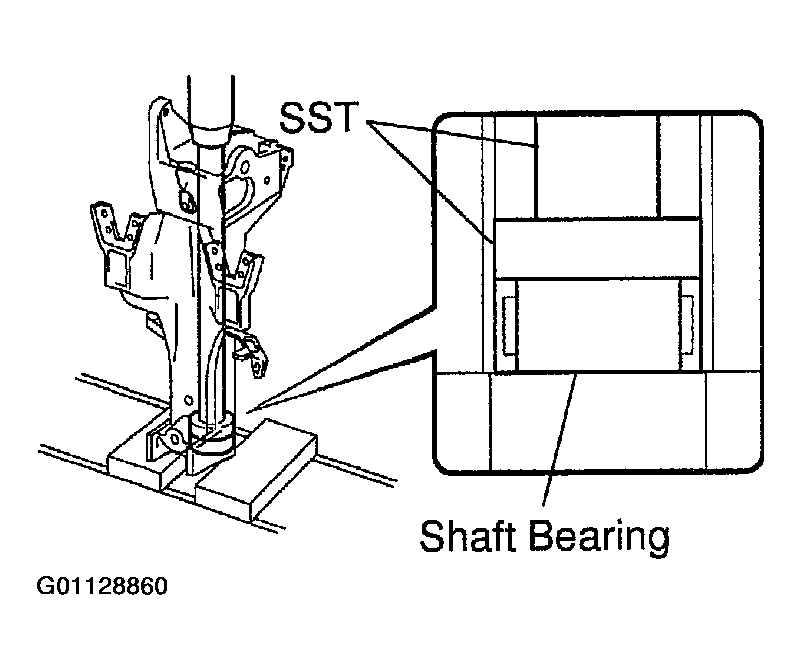

Fig 4: Removing Shaft Bearing
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Coat a new shaft bearing with molybdenum disulfide lithium base grease.
Using SST, press in the shaft bearing.
SST 09950-60010 (09951-00460), 09950-70010 (09951-07150).

Fig 5: Installing Shaft Bearing
