Parts Location

WARNING: This page is about a different car, the 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

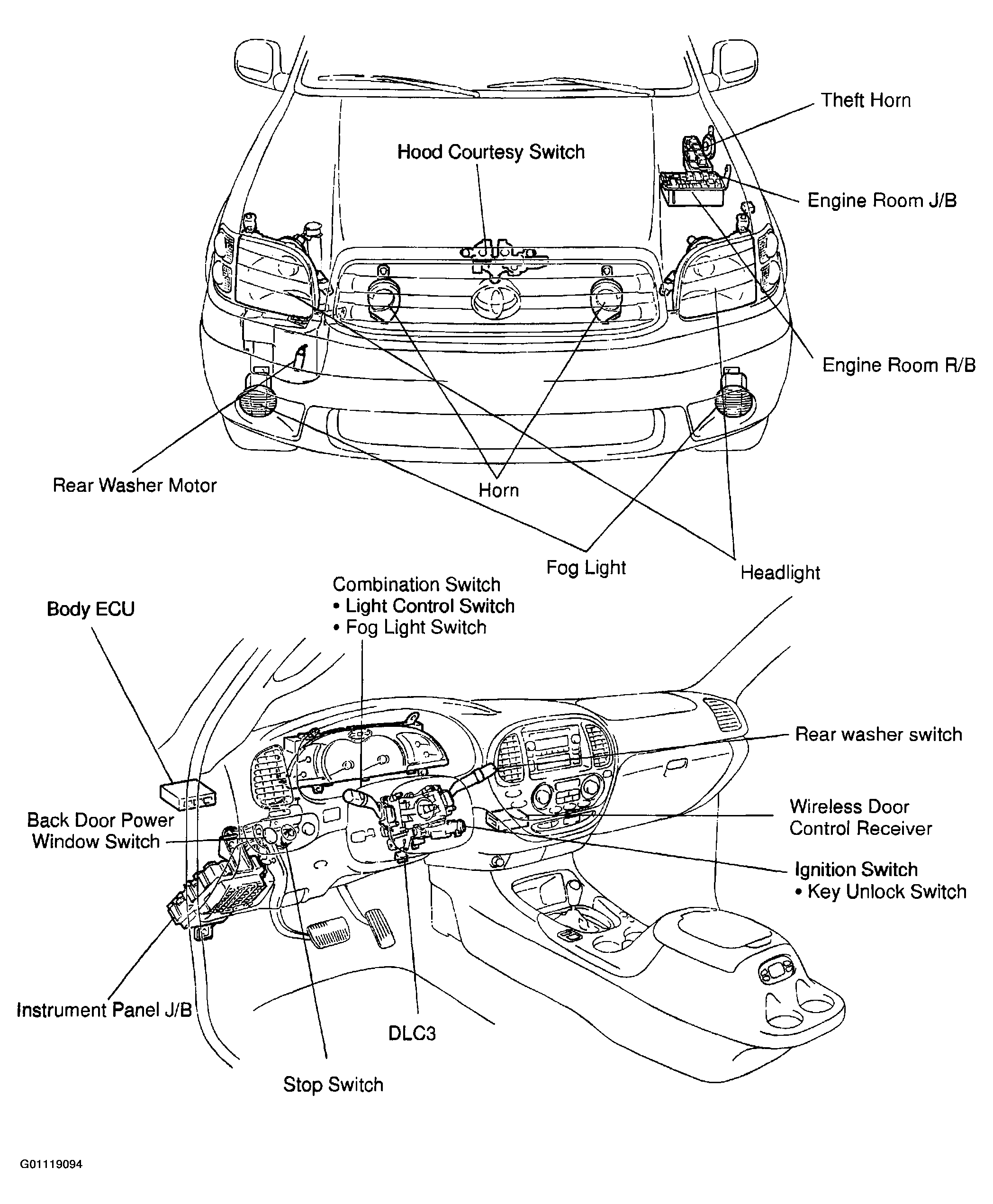

Fig 1: Locating Body Control System Components (1 Of 2)
G01119094Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

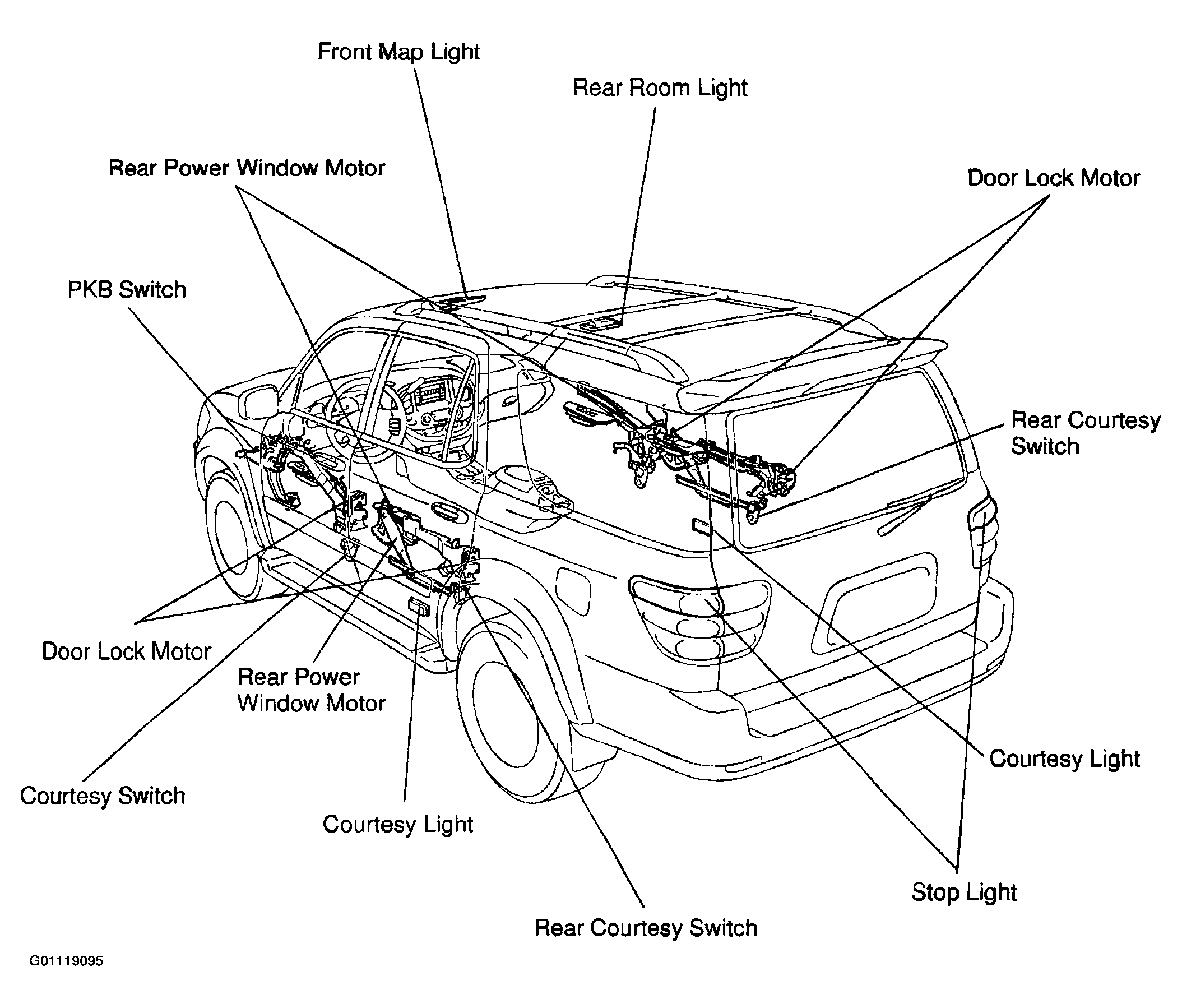

Fig 2: Locating Body Control System Components (2 Of 2)
G01119095Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
