On-Vehicle Inspection

WARNING: This page is about a different car, the 2002 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.
  1. Inspect refrigerant volume  :

    Observe the sight glass on the liquid tube.

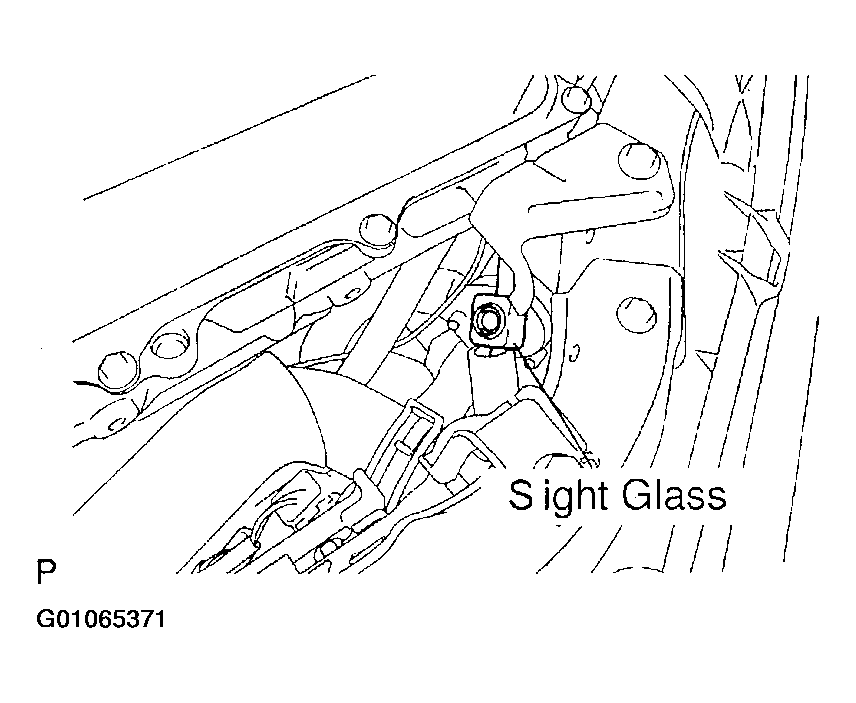

    Fig 1: Locating Refrigerant Site Glass
    G01065371Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

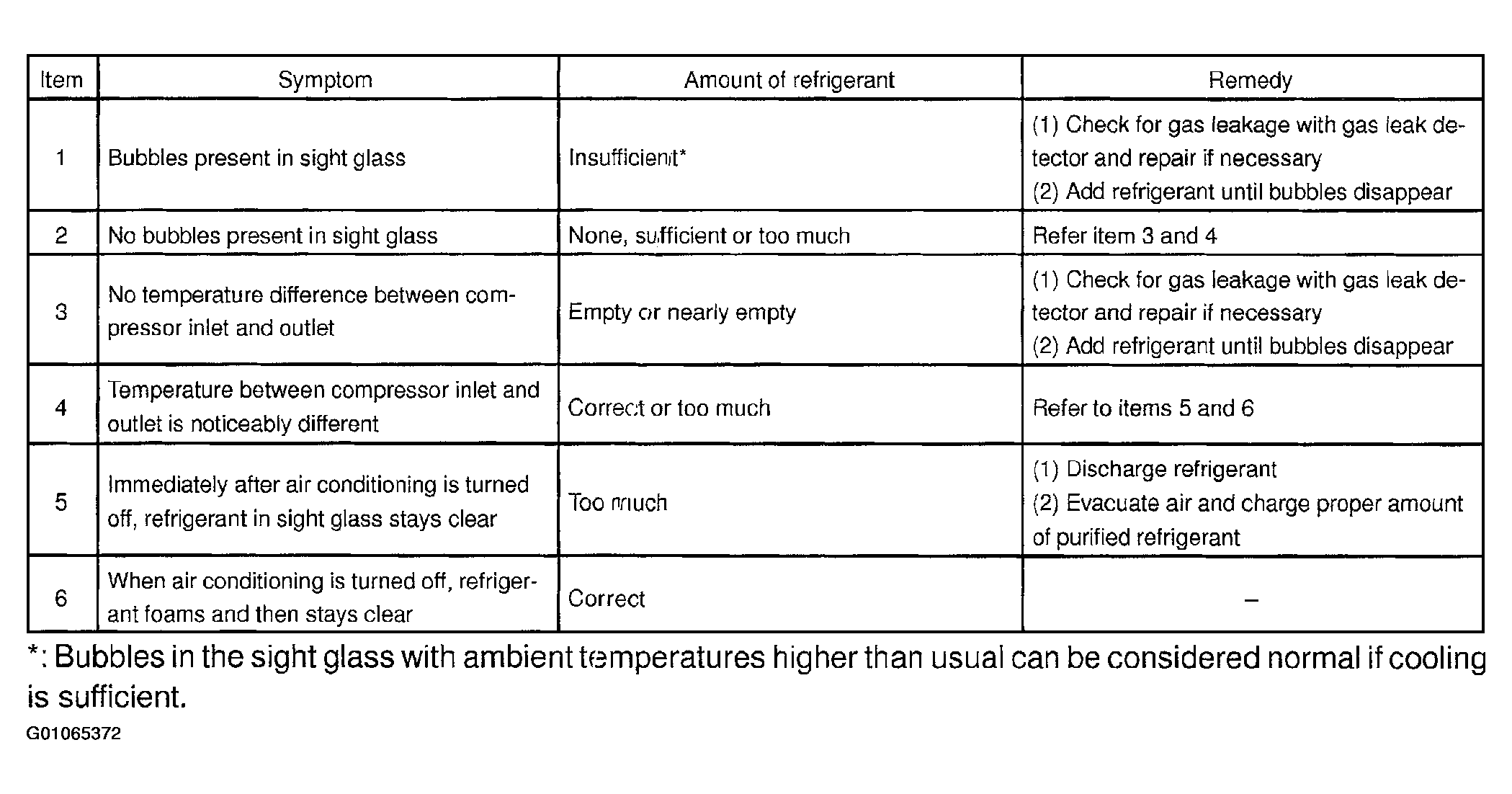

    Fig 2: Understanding Conditions Indicated By Site Glass Readings
    G01065372Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Test conditions

    • MAX. switch ON.
    • Blower speed control set at "HI".
    • Temperature control set at "MAX. COOL".
    • Running engine at 1,500 rpm.
    • Fully open the doors.
  2. Inspect refrigerant pressure with manifold gauge set  :

    This is a method in which the trouble is located by using a manifold gauge set. Read the manifold gauge pressure when the these conditions are established.

    Test conditions

      NOTE: It should be noted that the gauge indications may vary slightly due to ambient temperature conditions.
    • Temperature at the air inlet with the switch set at RECIRC is 30 - 35 °C (86 - 95 °F)
    • Engine running at 1500 rpm
    • Blower speed control switch at "HI" position
    • Temperature control dial on "COOL" position
    1. Normally functioning refrigeration system.

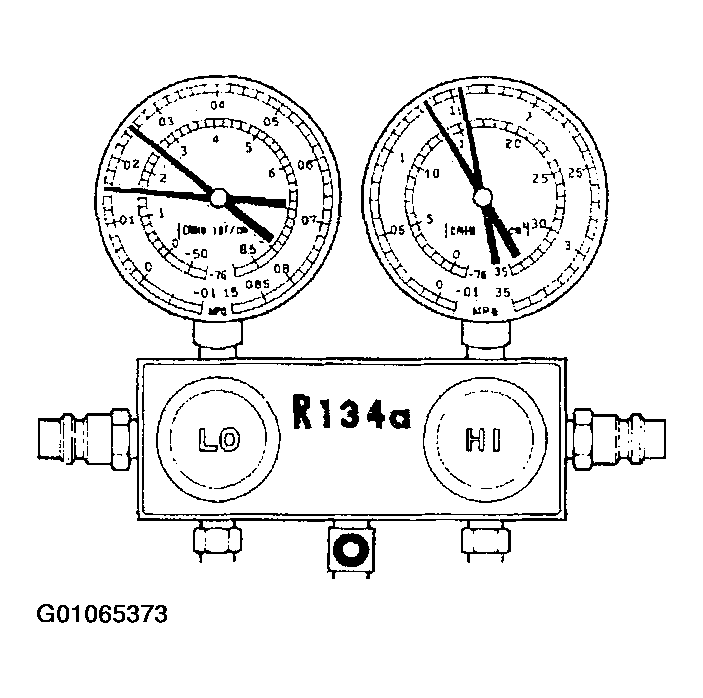

      Fig 3: Manifold Gauge Reading Normal Conditions
      G01065373Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Gauge reading

      1. Low pressure side:  0.15 - 0.25 MPa (1.5 - 2.5 kgf/cm2.
      2. High pressure side:  1.37 - 1.57 MPa (14 - 16 kgf/cm2.
    2. Moisture present in refrigeration system.

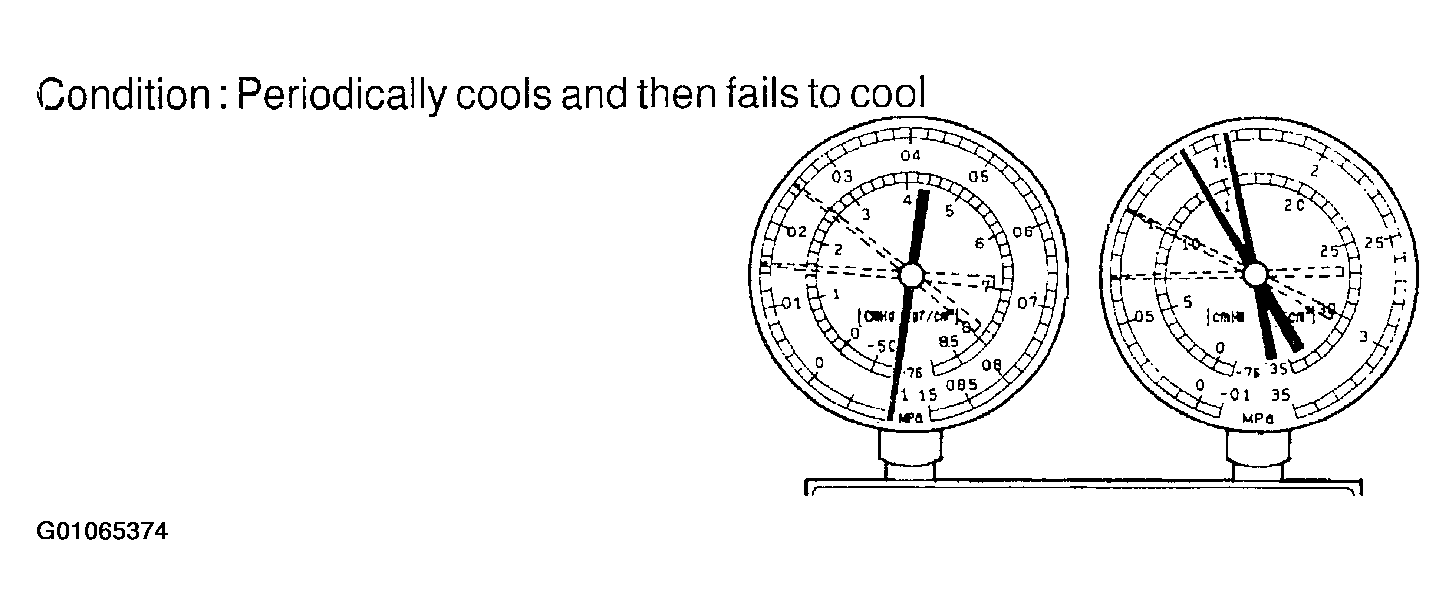

      Fig 4: Manifold Gauge Reading Moisture Present In System
      G01065374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

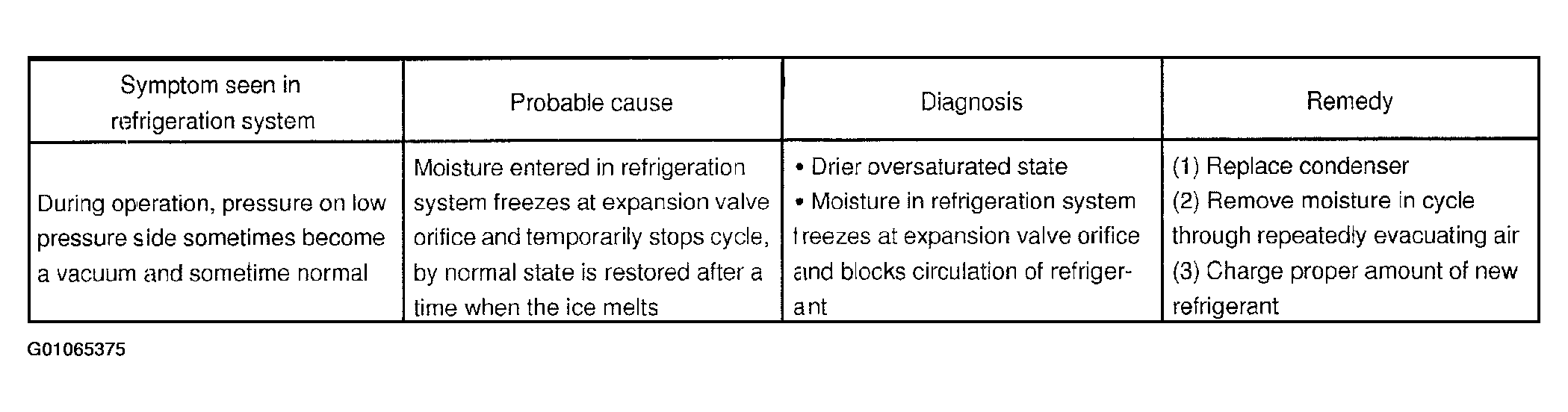

      Fig 5: Diagnosis Chart Symptoms Of Moisture In System
      G01065375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Insufficient cooling

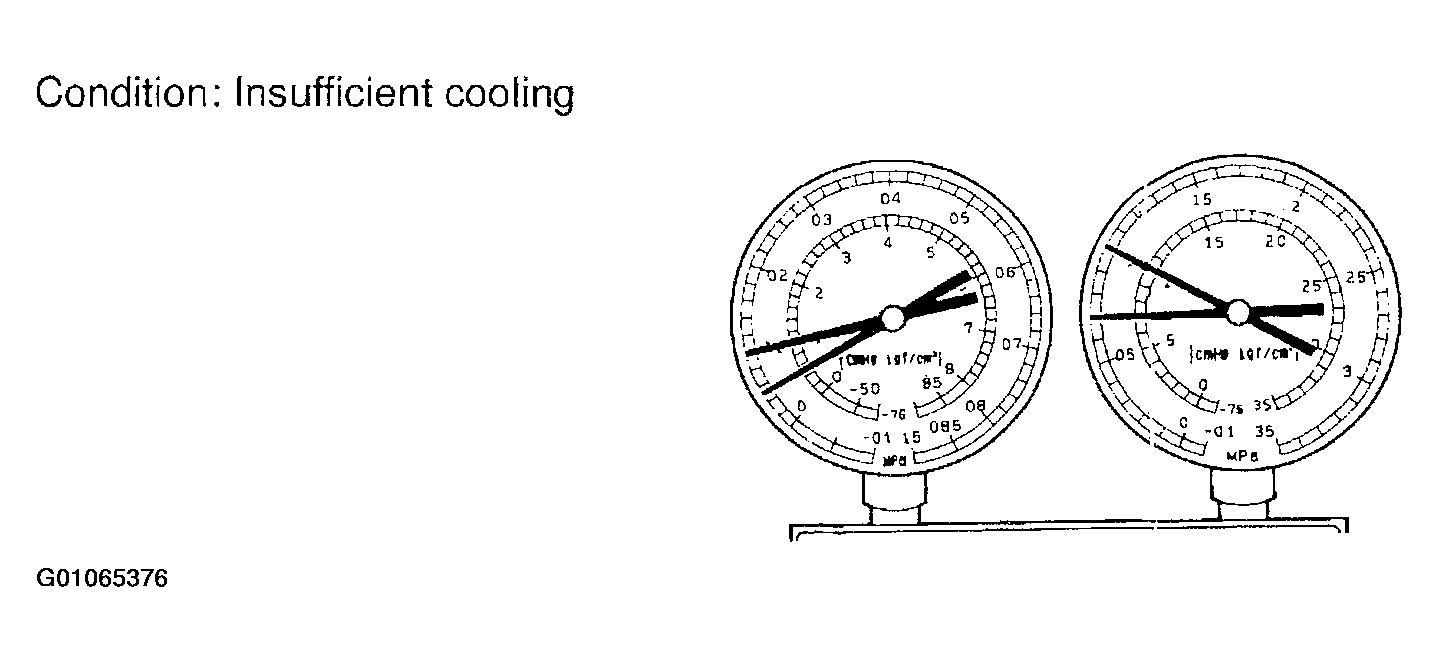

      Fig 6: Manifold Gauge Reading Insufficient Cooling
      G01065376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

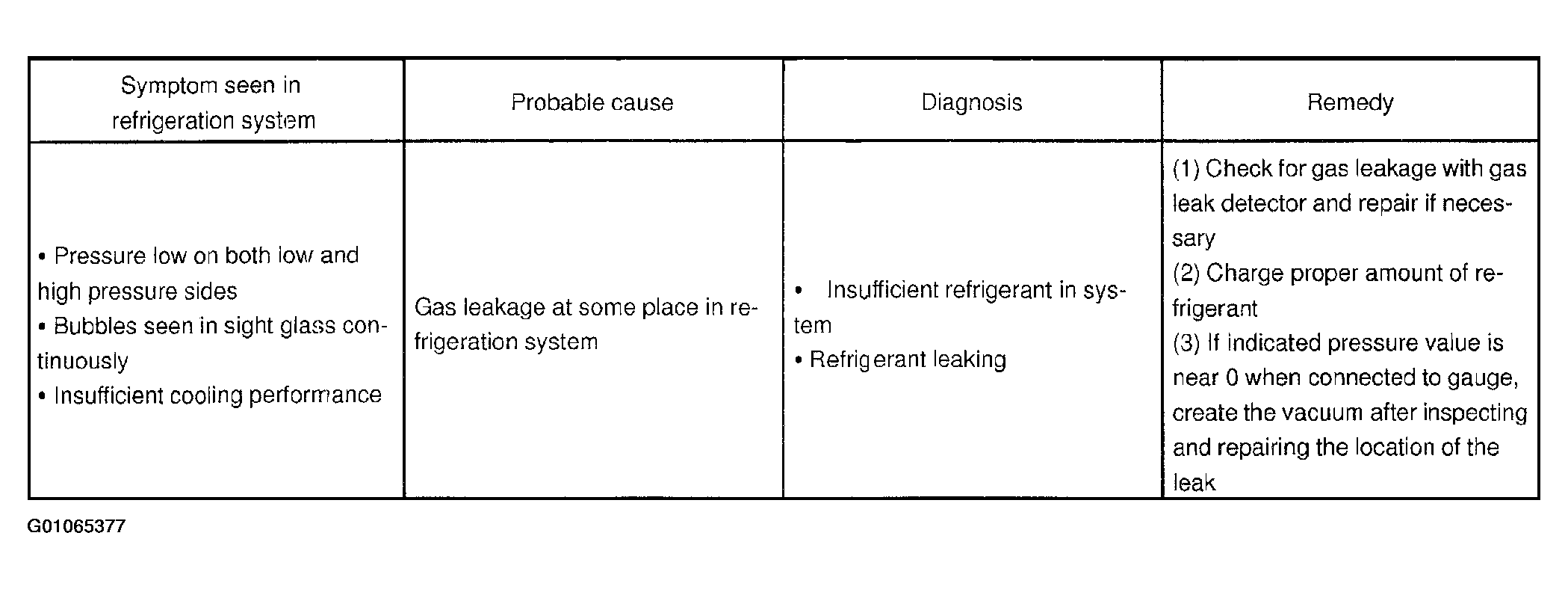

      Fig 7: Diagnosis Chart Insufficient Cooling Symptoms
      G01065377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Poor circulation of refrigerant

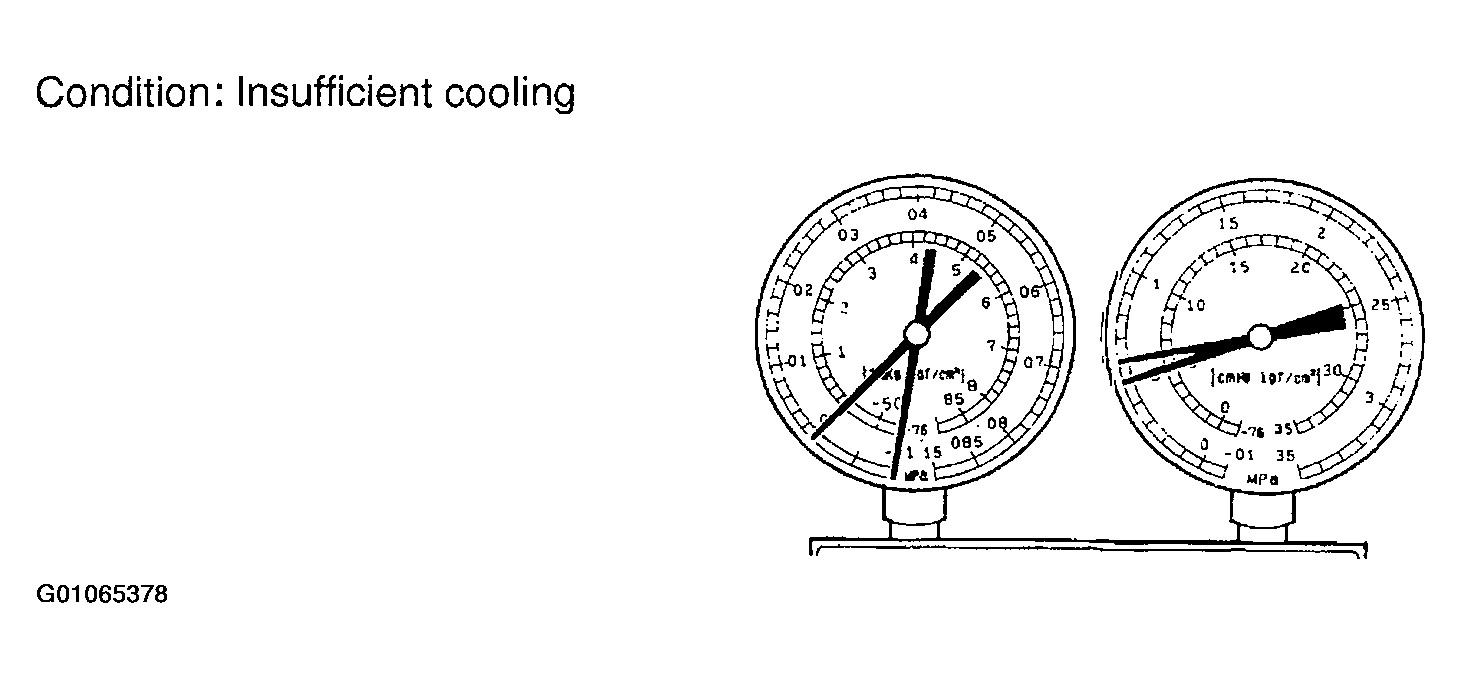

      Fig 8: Manifold Gauge Reading Poor Refrigerant Circulation
      G01065378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

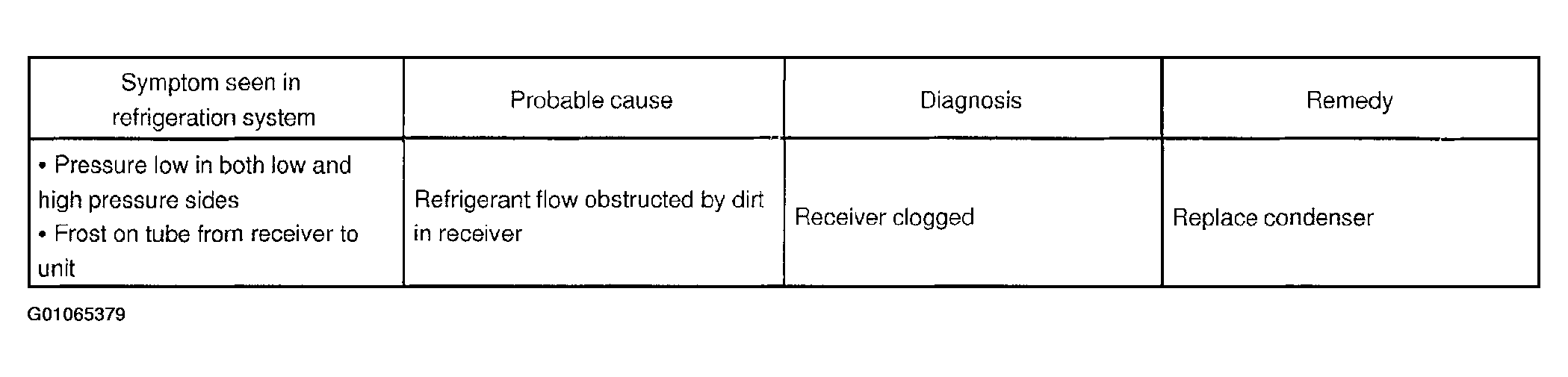

      Fig 9: Diagnosis Chart Poor Circulation Of Refrigerant Symptoms
      G01065379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Refrigerant does not circulate

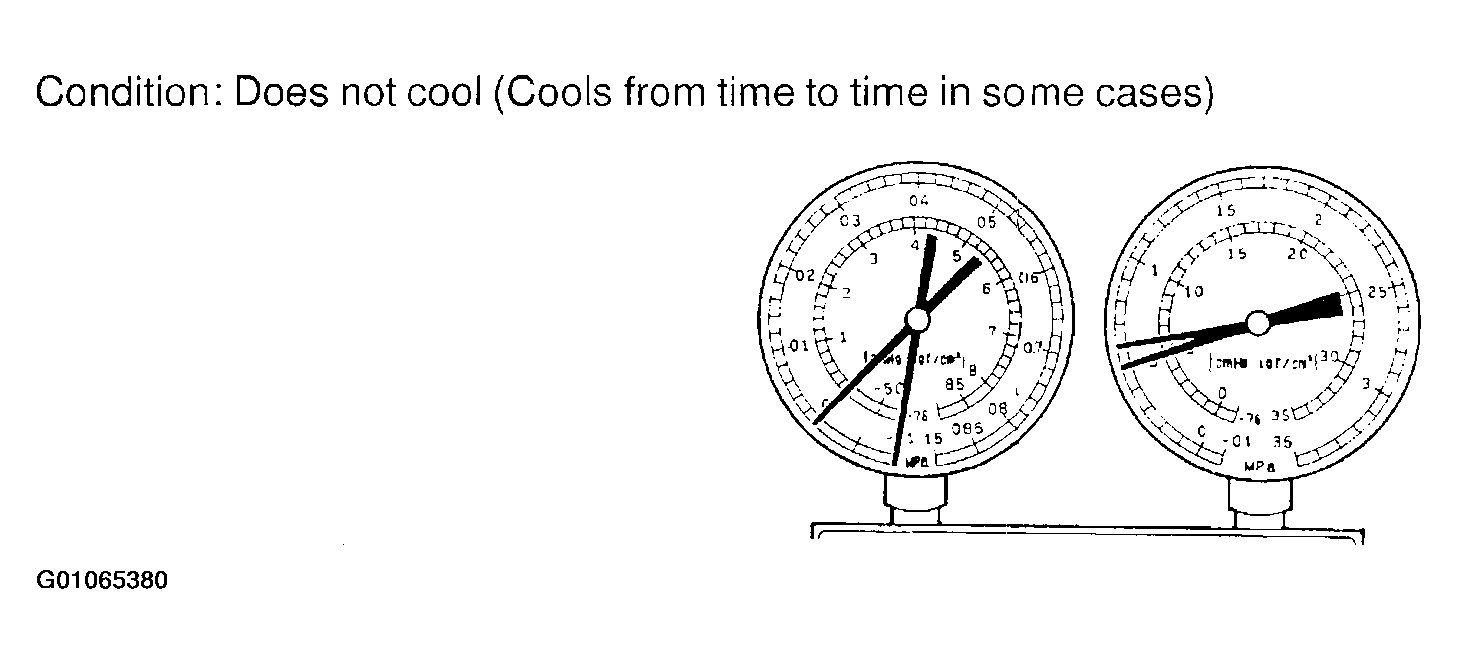

      Fig 10: Manifold Gauge Reading No Refrigerant Circulation
      G01065380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

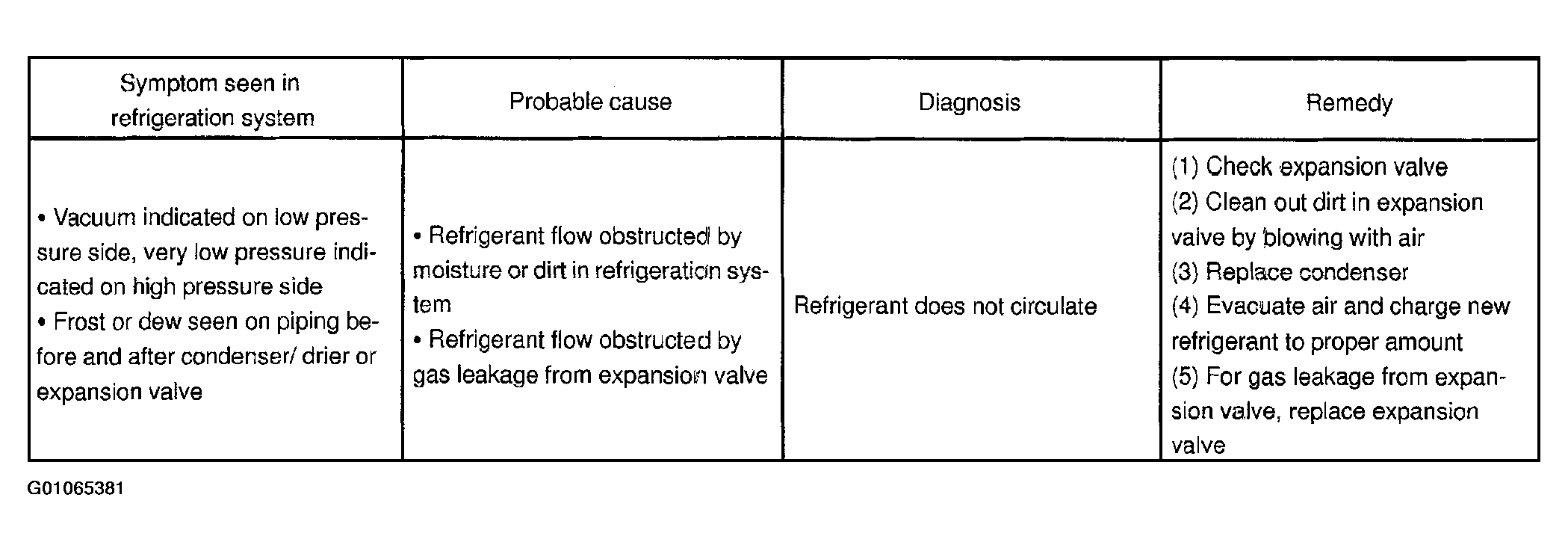

      Fig 11: Diagnosis Chart No Refrigerant Circulation Symptoms
      G01065381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Refrigerant overcharged or insufficient cooling of condenser

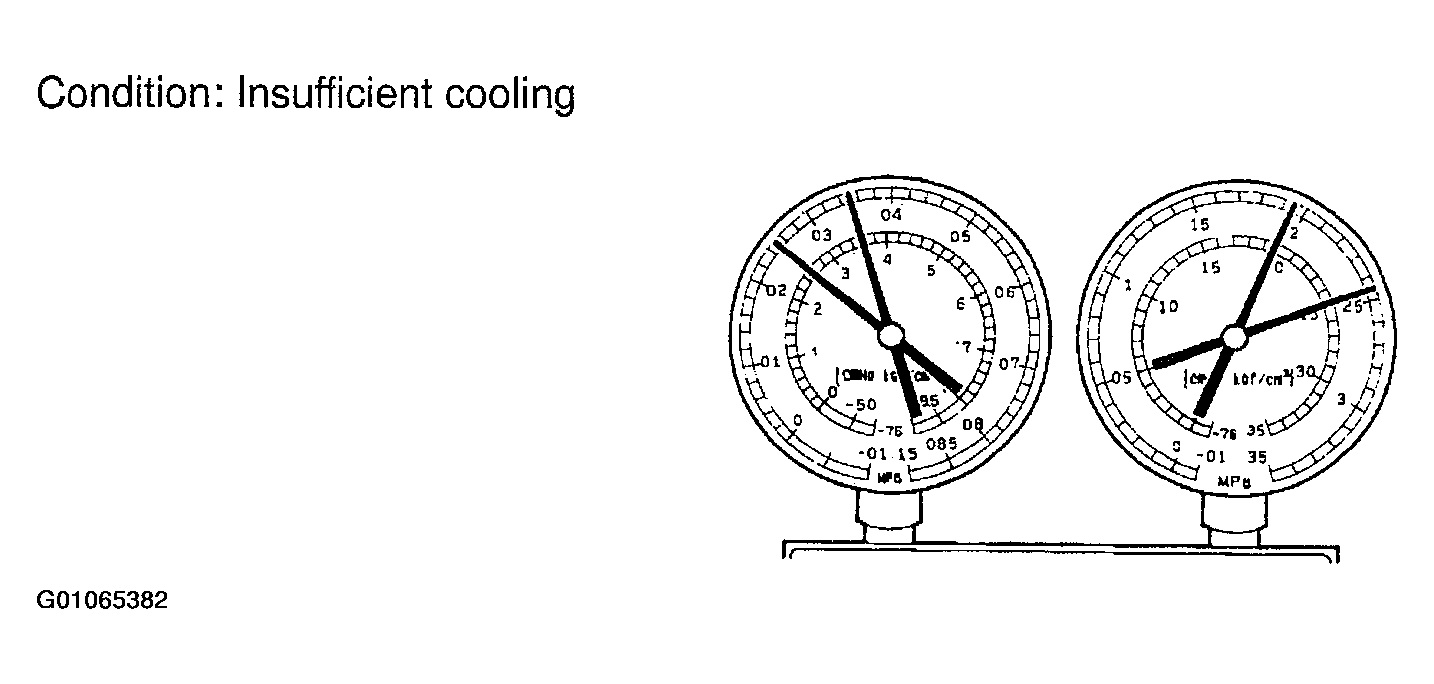

      Fig 12: Manifold Gauge Reading Refrigerant Overcharged Or Condenser Insufficiently Cooled
      G01065382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

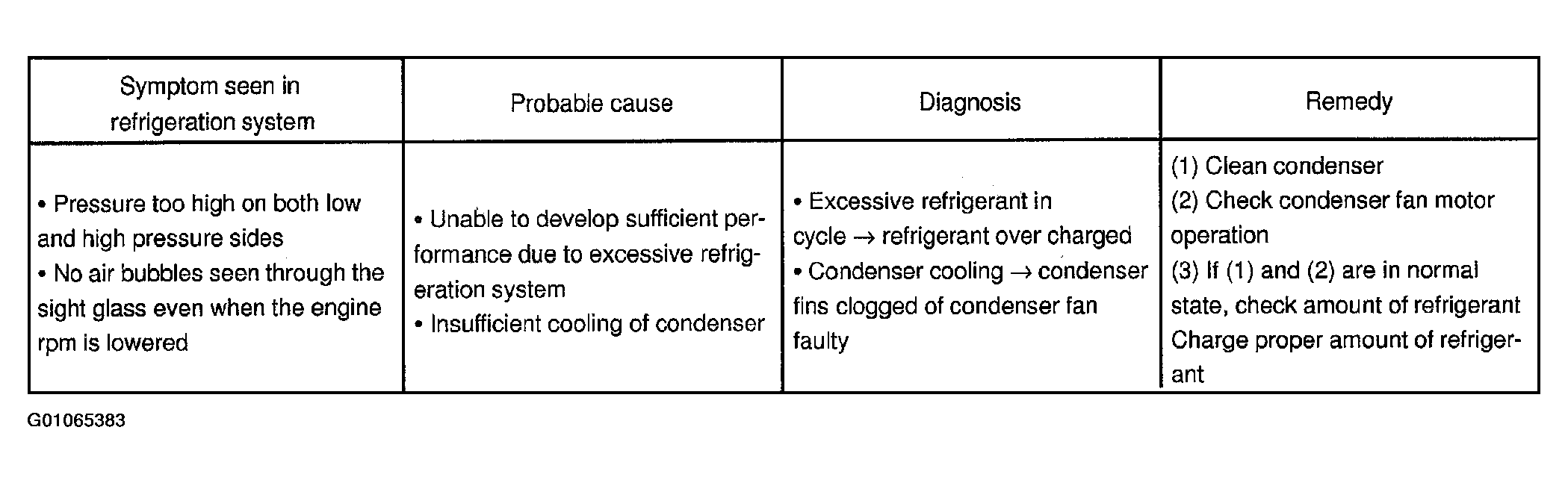

      Fig 13: Diagnosis Chart Refrigerant Overcharged Or Condenser Insufficiently Cooled Symptoms
      G01065383Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Air present in refrigeration system

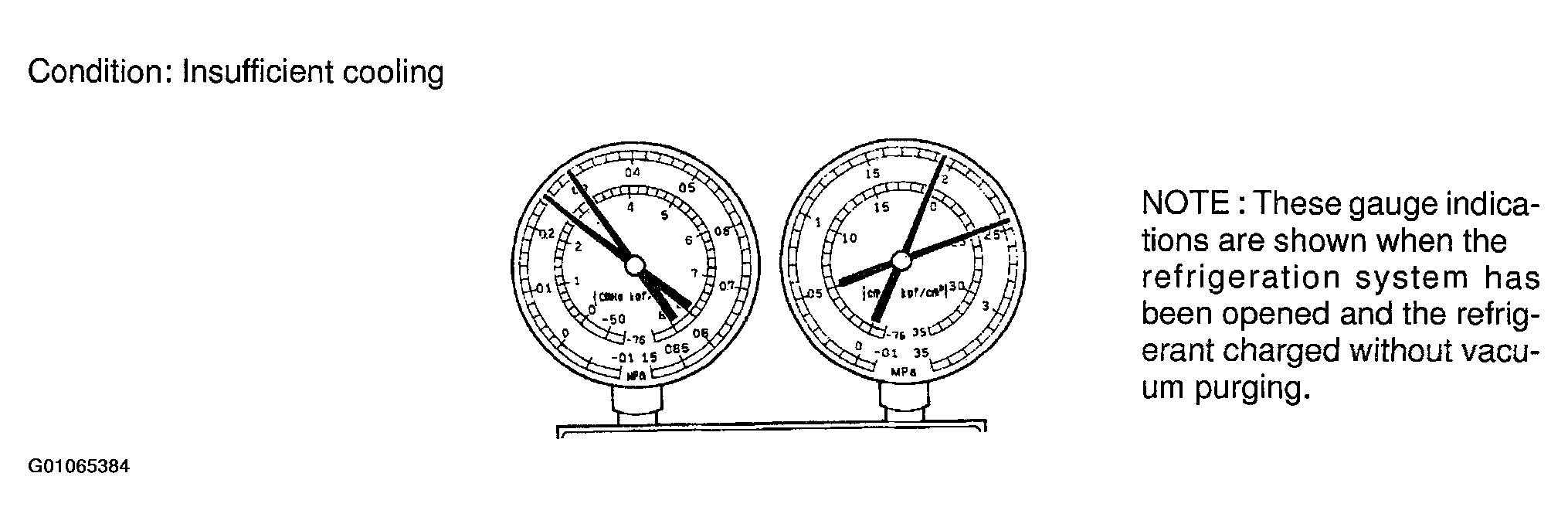

      Fig 14: Manifold Gauge Reading Air Present In Refrigeration System
      G01065384Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

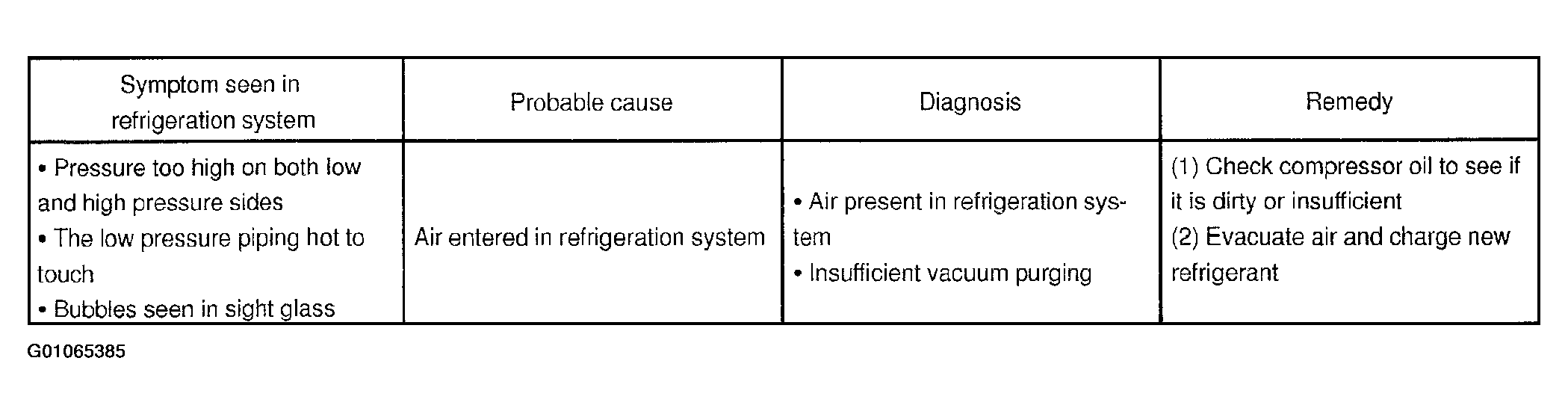

      Fig 15: Diagnosis Chart Air Present In Refrigeration System Symptoms
      G01065385Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Expansion valve operating improperly

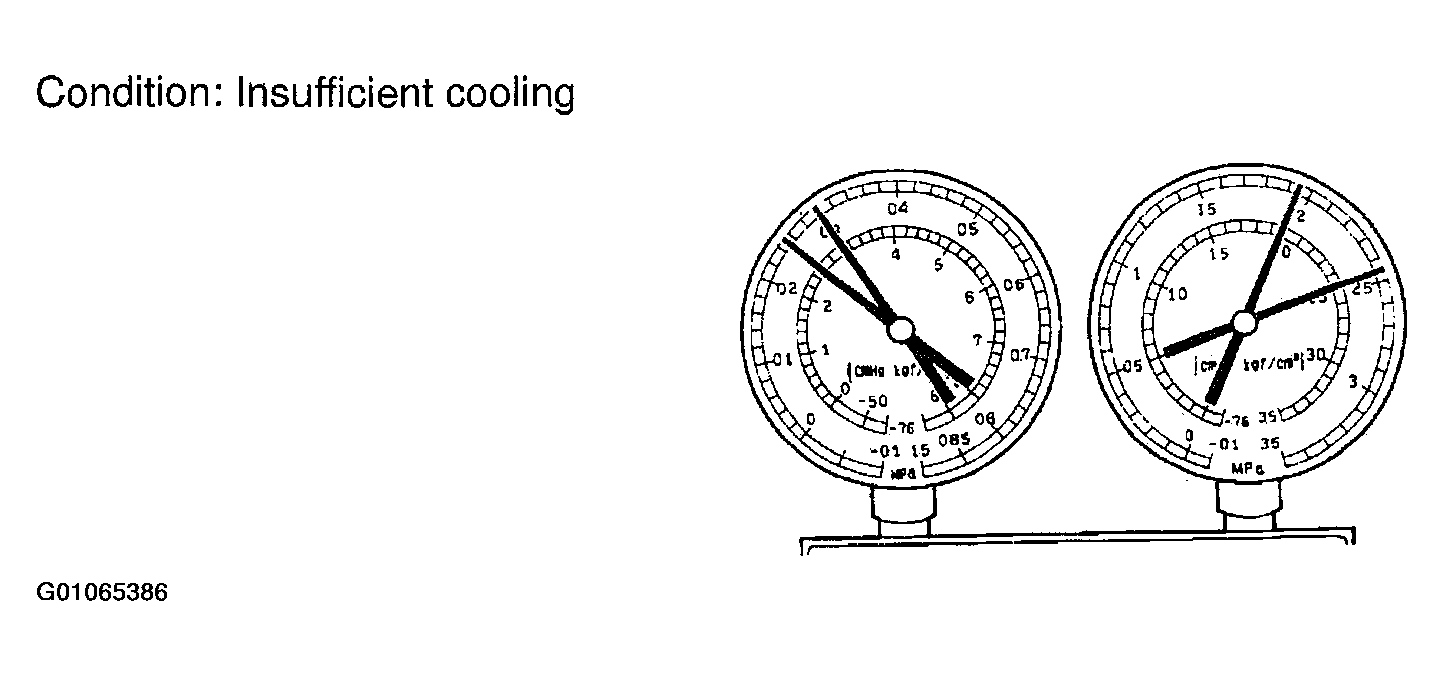

      Fig 16: Manifold Gauge Reading Improper Operation Of Expansion Valve
      G01065386Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

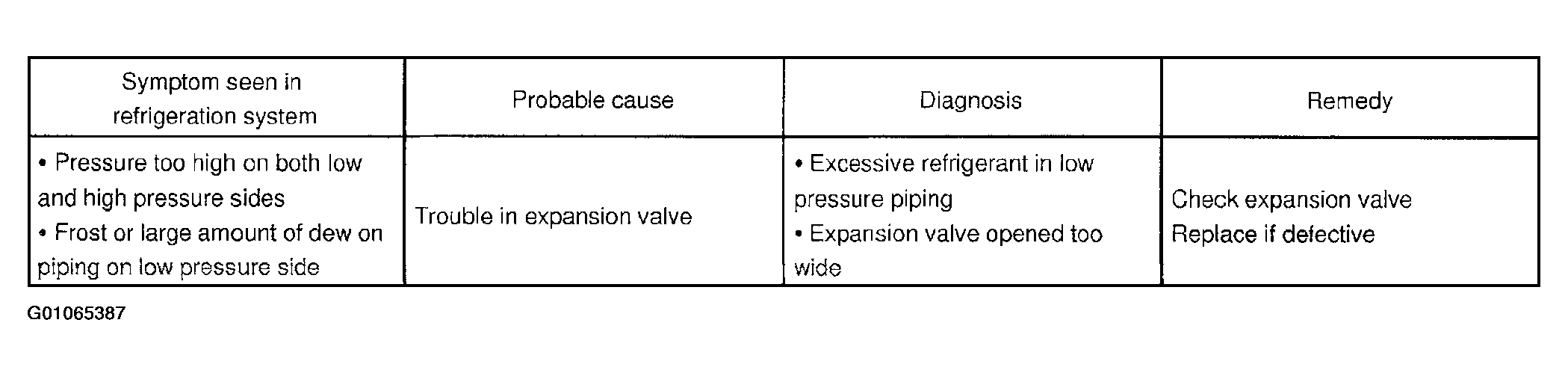

      Fig 17: Diagnosis Chart Improper Operation Of Expansion Valve Symptoms
      G01065387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    9. Defective compression compressor

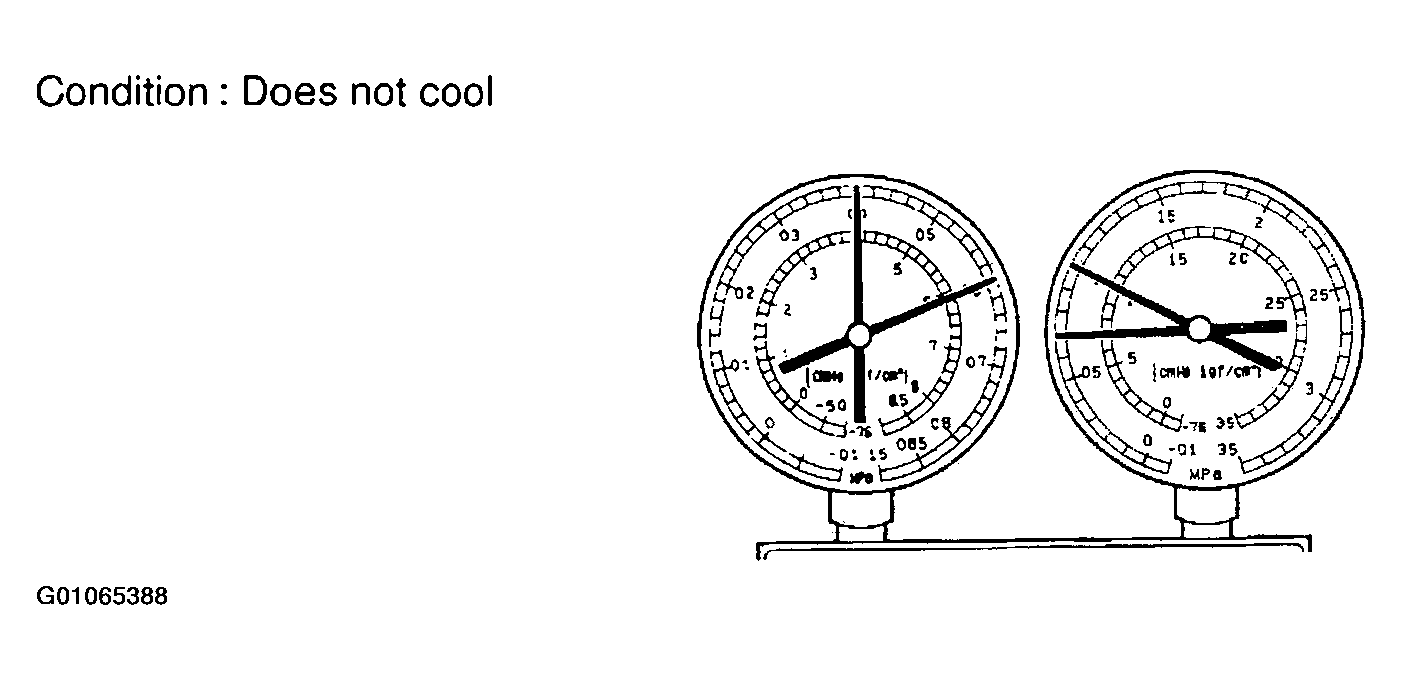

      Fig 18: Manifold Gauge Reading Defective Compressor
      G01065388Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

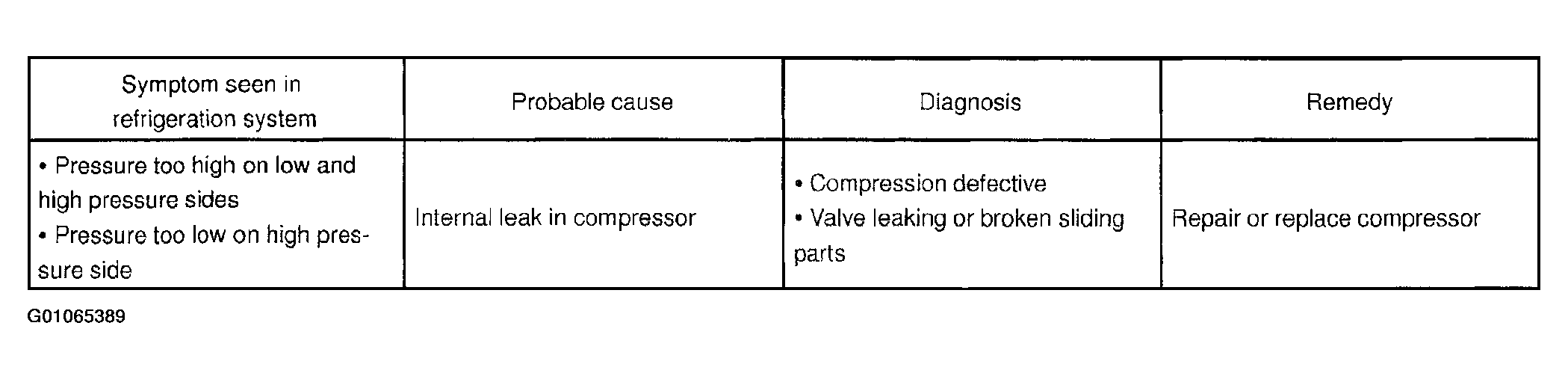

      Fig 19: Diagnosis Chart Defective Compressor Symptoms
      G01065389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Inspect for leakage of refrigerant  :
    1. Perform in these conditions:
      • Stop engine.
      • Secure good ventilation (If the gas leak detector may not react to volatile gases which are not refrigerant, such as evaporated gasoline and exhaust gas.)
      • Repeat the test 2 or 3 times.
      • Make sure that there is some refrigerant remaining in the refrigeration system.

        When compressor is OFF: approximately 392 - 588 kPa (4 - 6 kgf/ cm2, 57 - 85 psi).

    2. NOTE:
      • After the blower motor has stopped, leave the cooling unit for more than 15 minutes.
      • Expose the gas leak detector sensor under the drain hose.
      • When placing the gas leak detector close to the drain hose, ensure that the gas leak detector does not react to the volatile gases.
      Fig 20: Placing Leak Detector Snout Close To Drain Hose
      G01065390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Bring the gas leak detector close to the drain hose before performing the test.

      If such reaction is unavoidable, the vehicle must be lifted up.

    4. If gas leak is not detected on the drain hose, remove the blower resistor from the cooling unit. Then insert the gas leak detector sensor into the unit and perform the test.
    5. Disconnect the connector and leave the pressure switch for approximately 20 minutes. Then bring the gas leak detector close to the pressure switch and perform the test.
    6. Bring the gas leak detector close to the refrigerant lines and perform the test.
  4. Inspect idle-up speed  :
    1. Activate inspection mode. See INSPECTION MODE .
    2. Inspect idle-up speed when the these conditions are established.

      Test conditions

      • Idle speed set correctly.
      • Steering wheel straight ahead
      • Blower speed control dial at HI
      • A/C switch ON
        Fig 21: Idle Speed Specifications
        G01065391Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        If idle speed is not as specified, check the engine ECU and throttle body.
