Air Conditioning Unit: Components

WARNING: This page is about a different car, the 2002 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

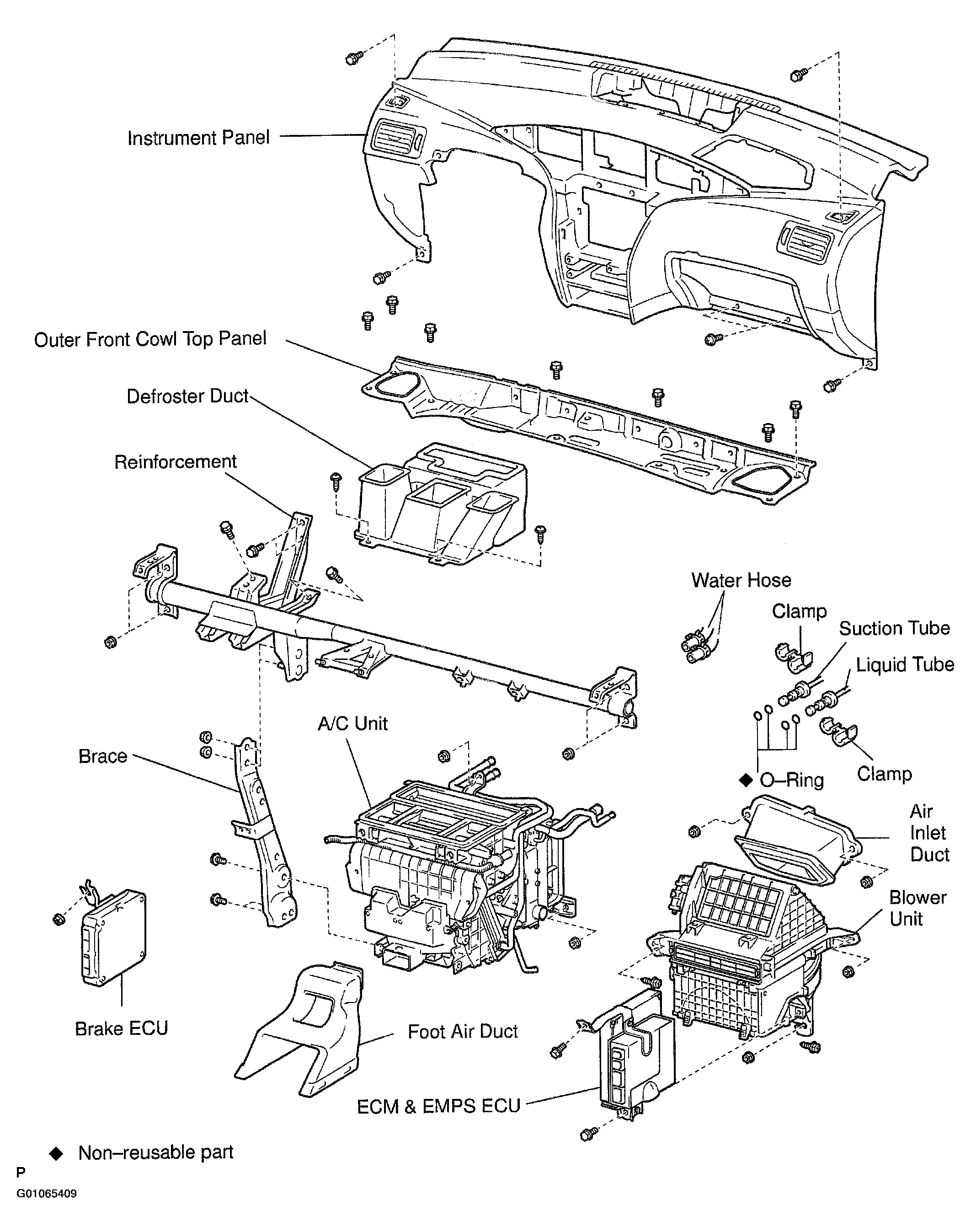

Fig 1: Locating Passenger Compartment A/C Related Components (1 Of 2)
