Compressor And Magnetic Clutch: Disassembly

WARNING: This page is about a different car, the 2002 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove pressure plate  :
    1. Using SST and a socket wrench, remove the shaft bolt. SST 07112-76050.

      Torque: 13.2 N.m (135 kgf.cm, 9 ft.lbf)  .

      Fig 1: Removing Shaft Bolt
      G01065437Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install SST to the pressure plate. SST 07112-66040.
      Fig 2: Installing SST On Pressure Plate
      G01065438Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using SST and a socket wrench, remove the pressure plate. SST 07112-76050, 07112-66040.
    4. Remove the shims from the shaft.
  2. Remove rotor  :
      NOTE: At the time of reassembly, please refer to the following item.
      The snap ring should be installed so that its beveled side faces up.
      Fig 3: Identifying Proper Snap Ring Installation
      G01065440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fig 4: Removing Snap Ring
      G01065439Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the snap ring.
      2. CAUTION: Be careful not to damage the pulley when tapping on the rotor.

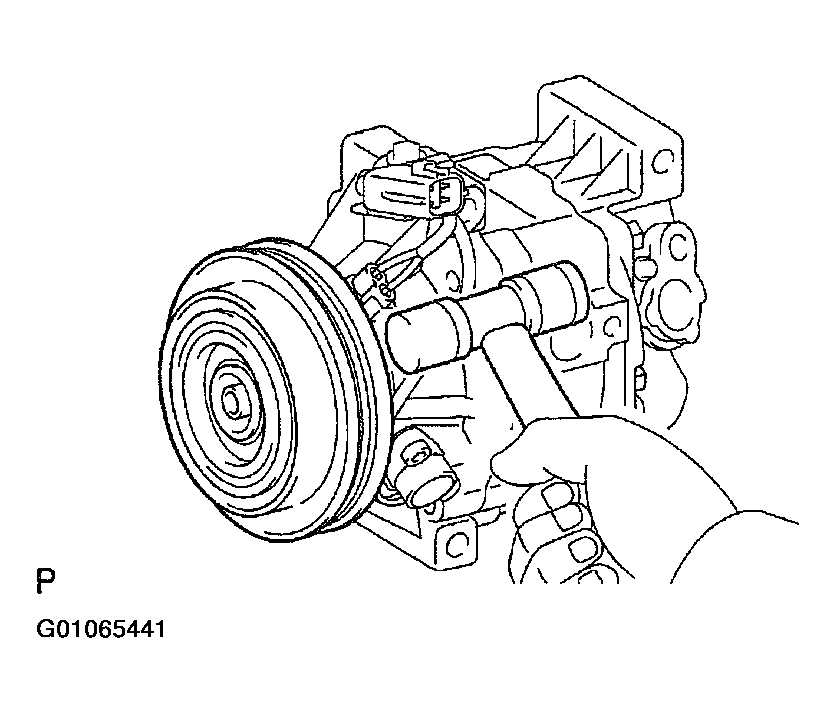

      Fig 5: Removing Rotor From Shaft
      G01065441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a plastic hammer, tap the rotor off the shaft.
  3. REMOVE STATOR
    1. Disconnect the connector from the stator.

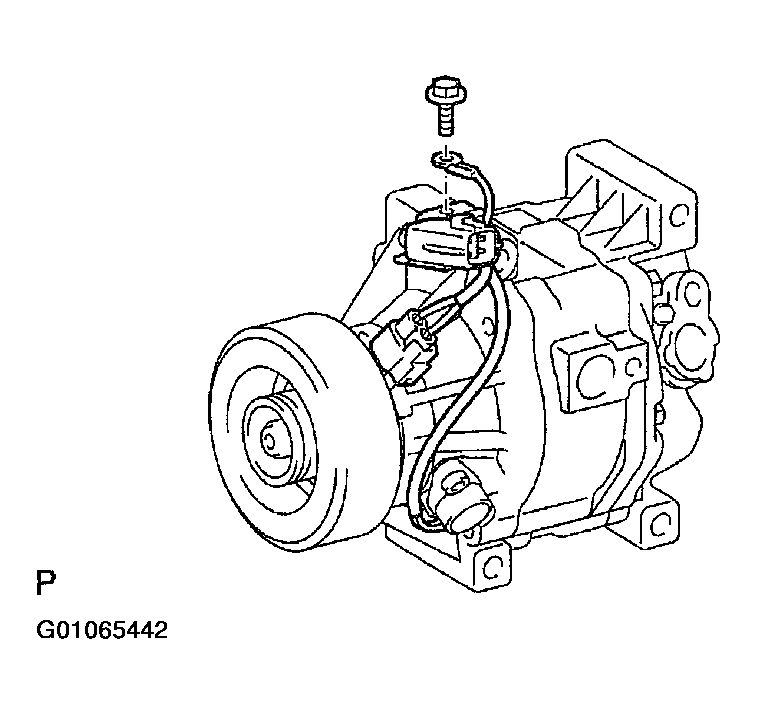

      Fig 6: Disconnecting Connector From Stator
      G01065442Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the screw and stator lead wire.
      3. NOTE: At the time of reassembly, please refer to the following item.
      The snap ring should be installed so that its beveled side faces up.
      Fig 7: Identifying Proper Snap Ring Installation
      G01065444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fig 8: Removing Snap Ring
      G01065443Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the snap ring.
    4. Remove the stator.
      Fig 9: Removing Stator From Compressor
      G01065445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
