Condenser Fan Disassembly

WARNING: This page is about a different car, the 2002 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE FANS
Remove the 6 screws and 2 fans.

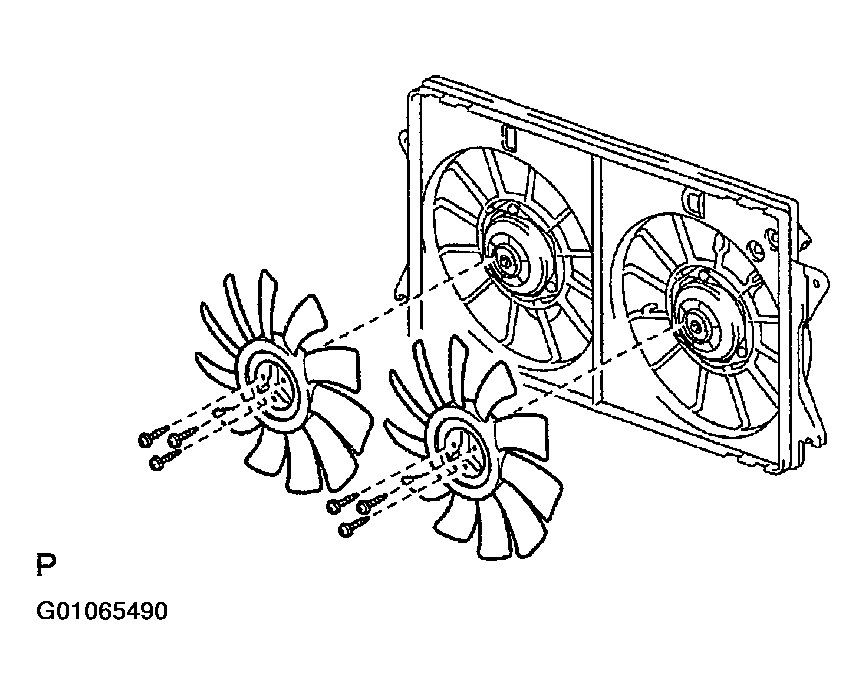

Fig 1: Identifying Fan Mounting Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FAN MOTOR FROM FAN SHROUD
1. Disconnect the connector.
2. Remove the 6 screws and 2 motors.

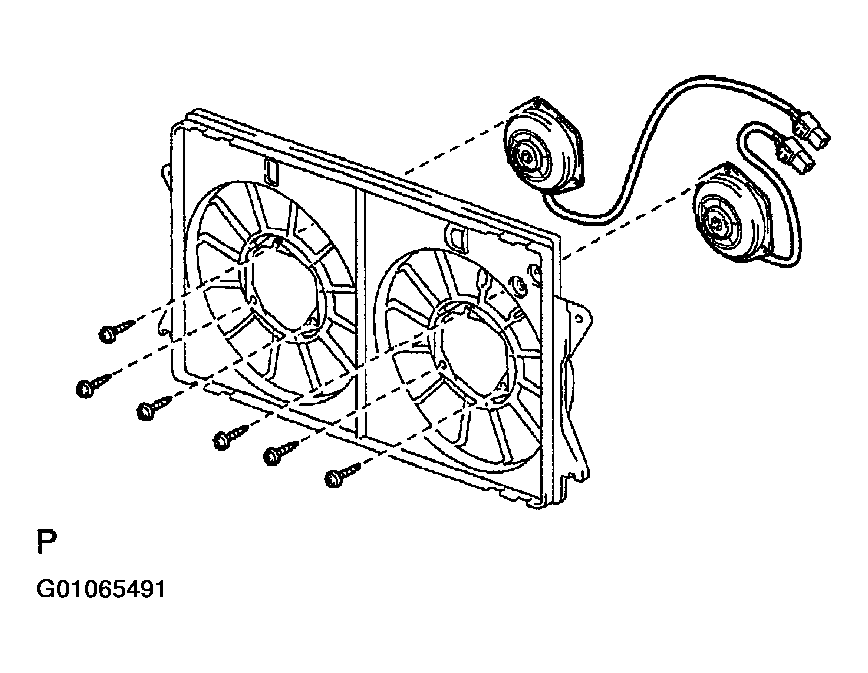

  Fig 2: Identifying Fan Motor Mounting Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
