Thermistor Inspection

WARNING: This page is about a different car, the 2002 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove blower unit  . See BLOWER UNIT REMOVAL .
  2. Remove thermistor  :
    1. Disconnect the connector.
      2. NOTE: Tape the screwdriver tip before use.

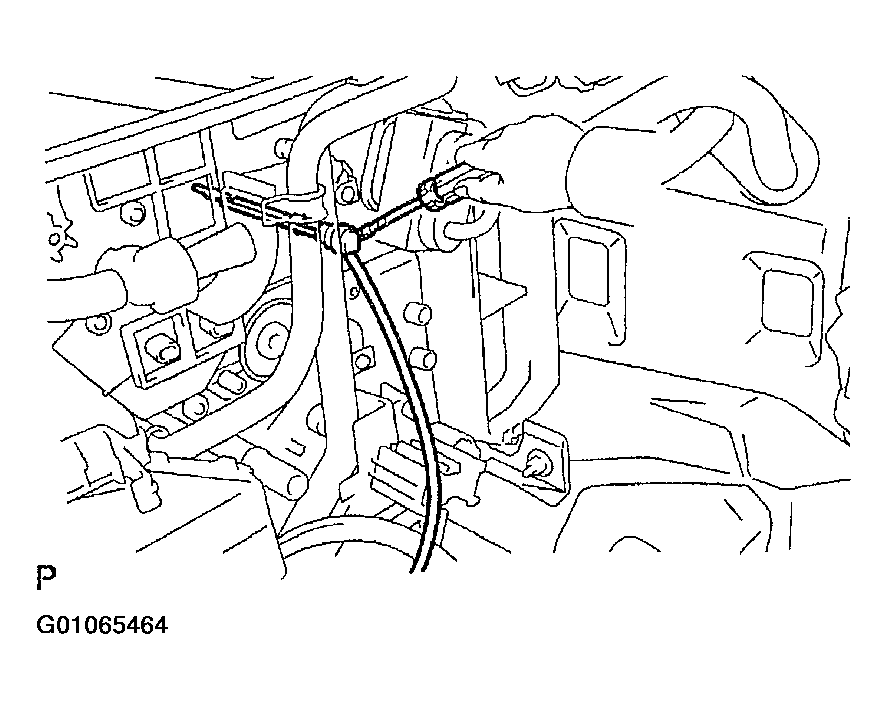

      Fig 1: Removing Thermistor
      G01065464Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a screwdriver, pull out the thermistor.
  3. Inspect thermistor  . See DTC 13: EVAPORATOR TEMPERATURE SENSOR CIRCUIT .
  4. Install thermistor  .
  5. Install blower unit  .
