Blower Unit: Components

WARNING: This page is about a different car, the 2004 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

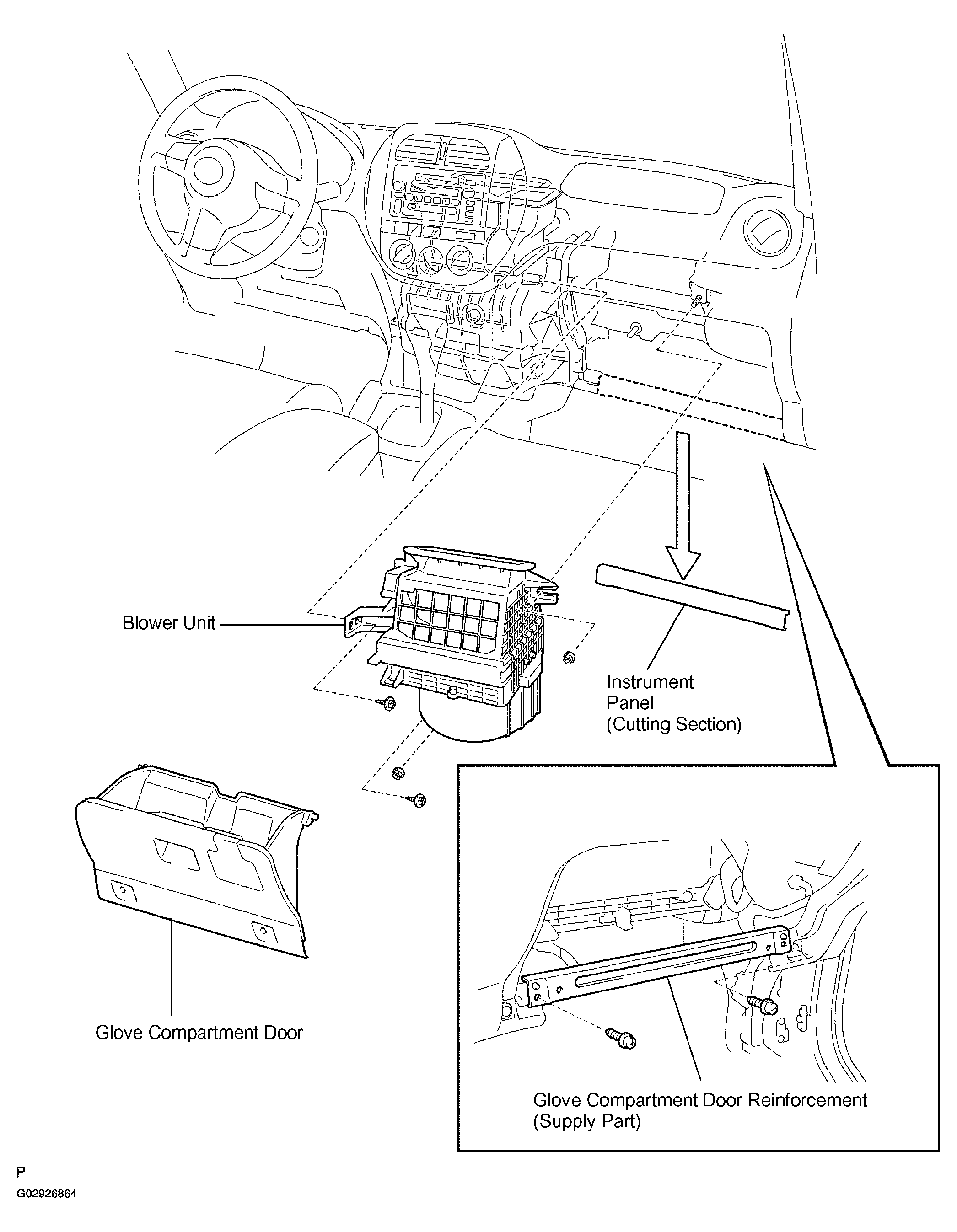

Fig 1: Locating Blower Unit Components (1 Of 2)
G02926864Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

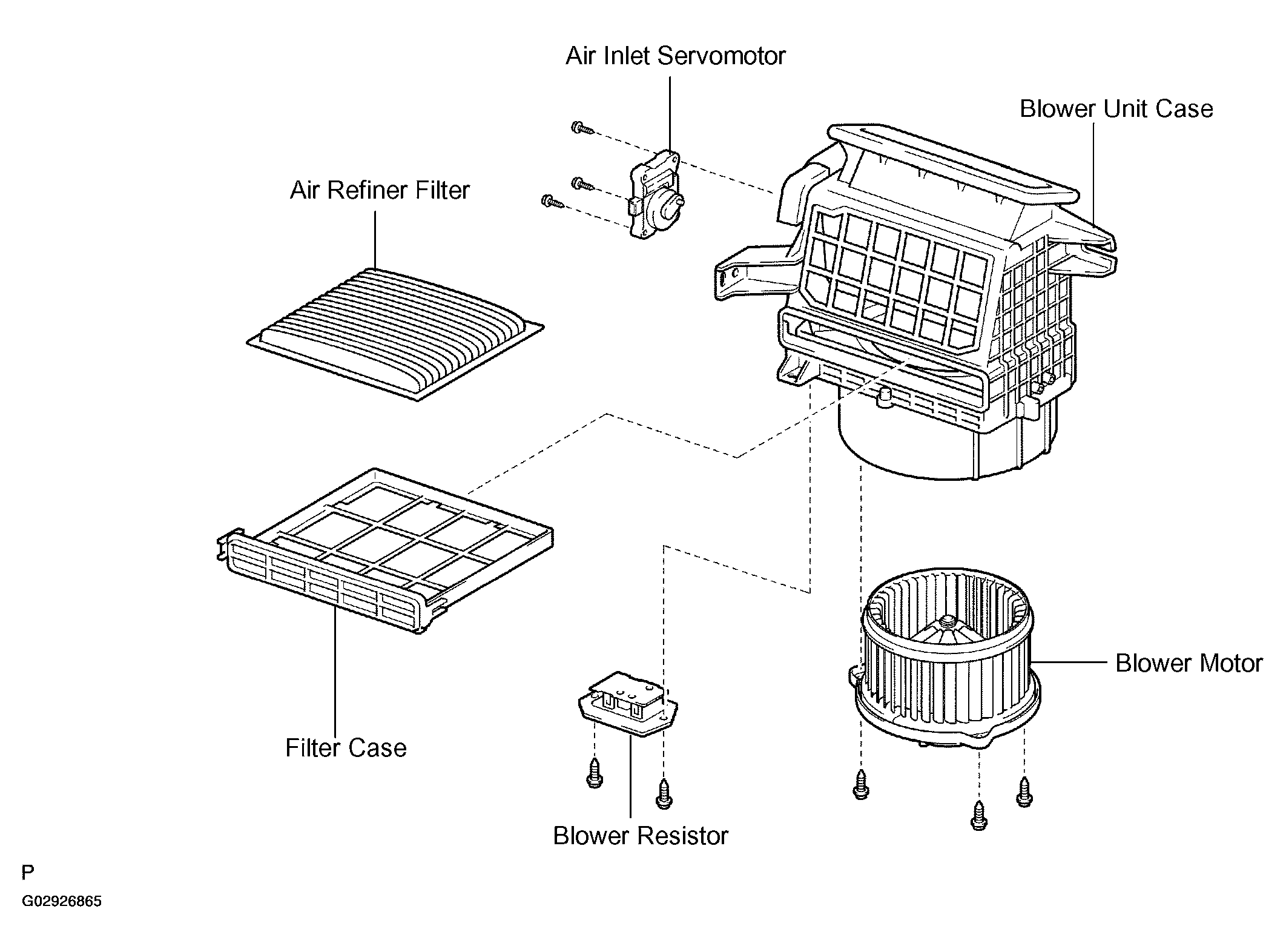

Fig 2: Locating Blower Unit Components (2 Of 2)
G02926865Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
