Condenser Fan: Components

WARNING: This page is about a different car, the 2004 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

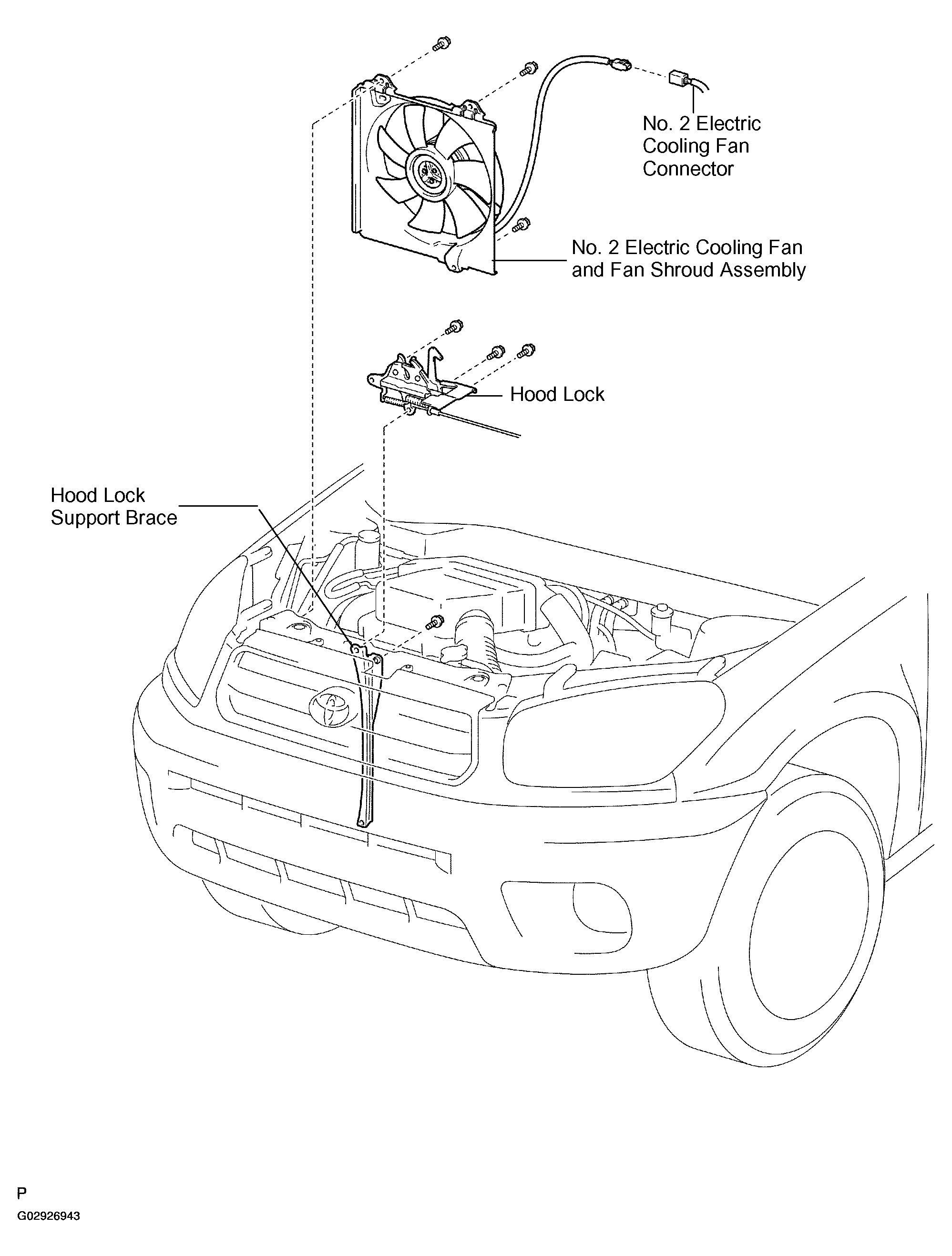

Fig 1: Identifying Condenser Fan Components (1 Of 2)
G02926943Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

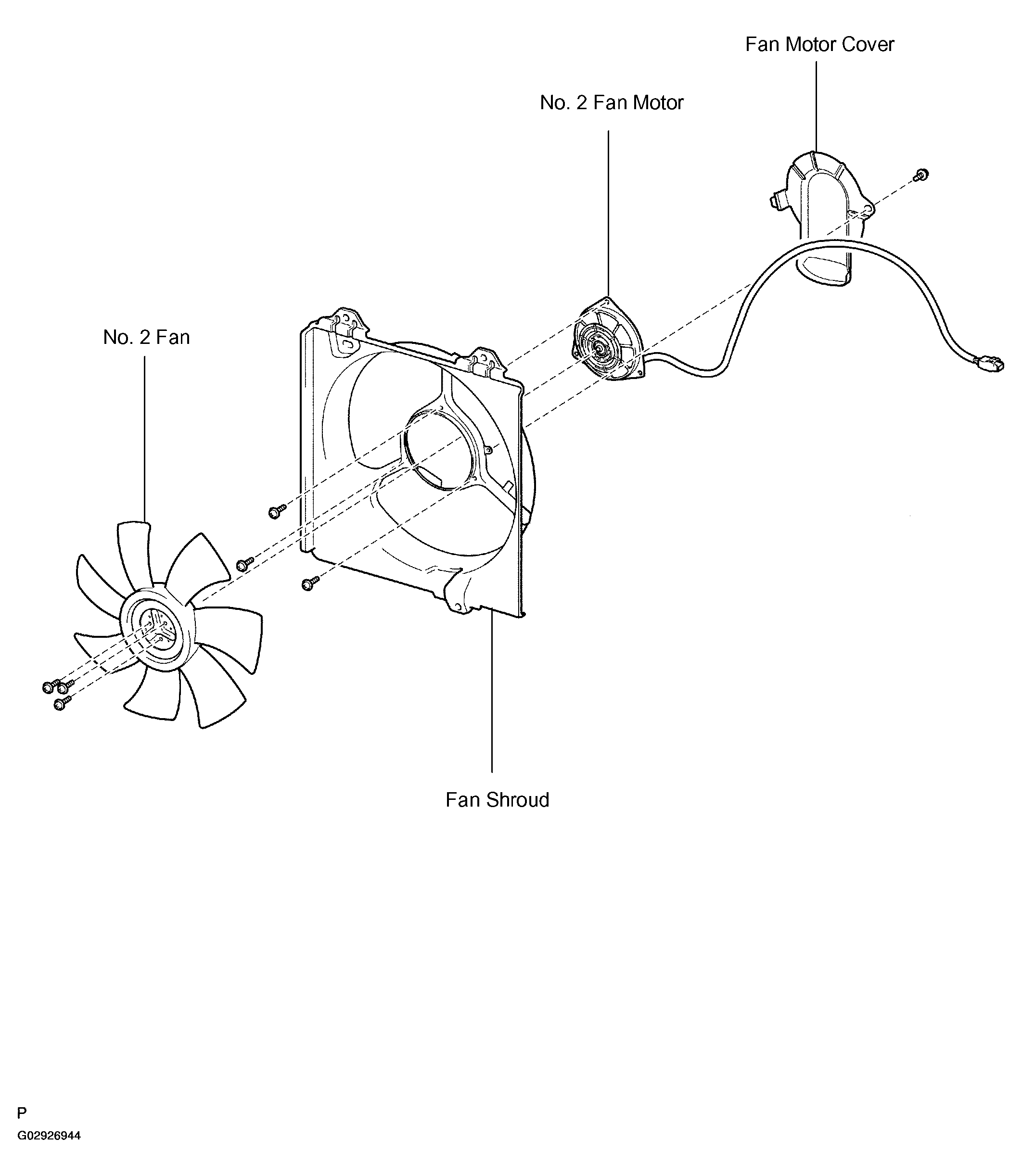

Fig 2: Identifying Condenser Fan Components (2 Of 2)
G02926944Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
