Condenser Fan: Disassembly

WARNING: This page is about a different car, the 2004 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE NO. 2 FAN
Remove the 3 screws and fan.

Fig 1: Removing No. 2 Fan & Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 2 FAN MOTOR
1. Remove the screw and fan motor cover.

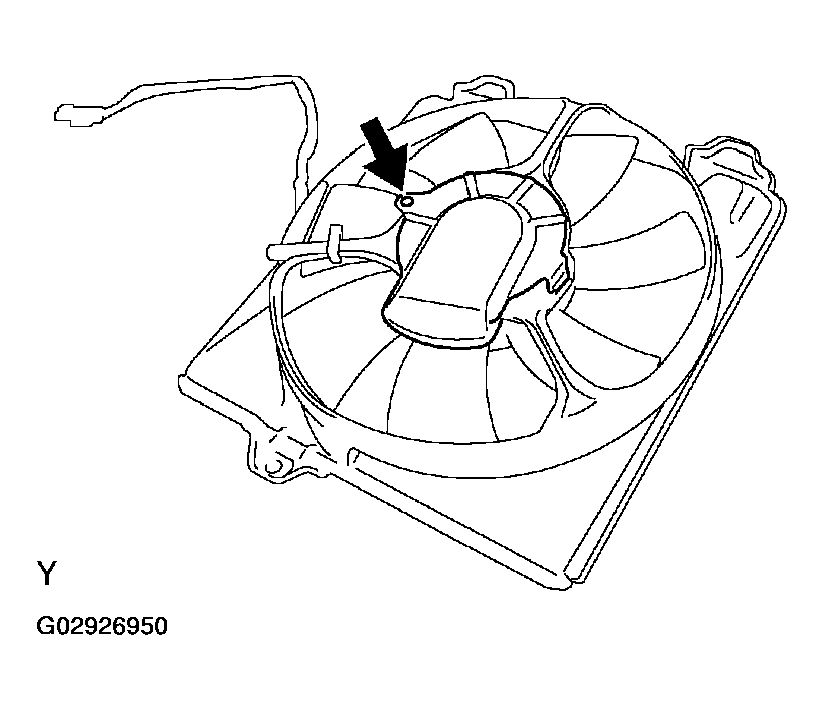

  Fig 2: Removing No. 2 Fan Motor Cover & Screw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 3 screws and fan motor.

  Fig 3: Removing Screws & Fan Motor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
