Condenser Fan: Reassembly

WARNING: This page is about a different car, the 2004 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL NO. 2 FAN MOTOR
1. Install the fan motor with the 3 screws.

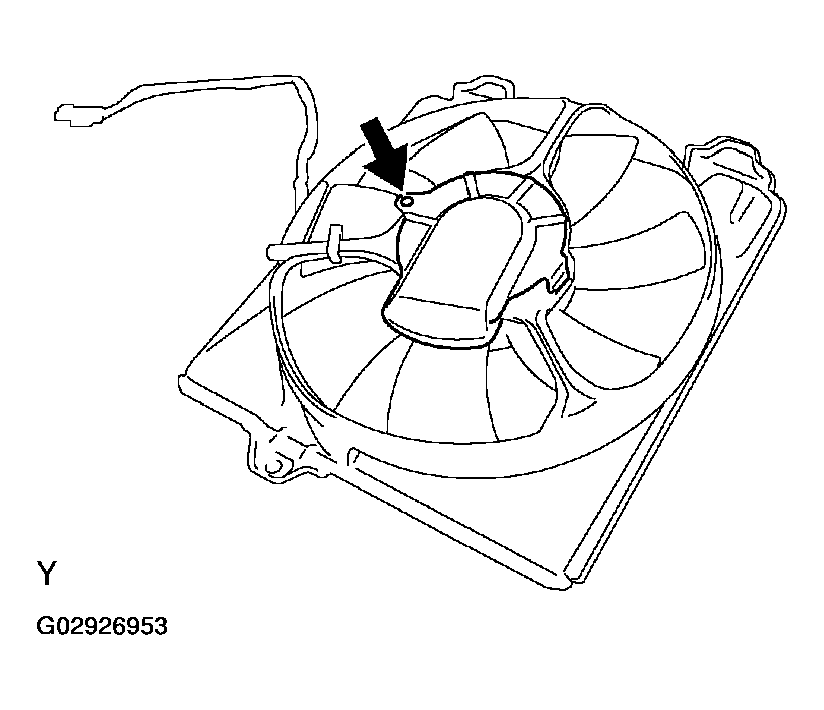

  Fig 1: Installing No. 2 Fan Motor & Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the fan motor cover with the screw.

  Fig 2: Installing No. 2 Fan Motor Cover & Screw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 2 FAN
Install the fan with the 3 screws.

Fig 3: Installing No. 2 Fan & Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
