Pressure Switch: Removal
WARNING: This page is about a different car, the 2004 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
- DISCHARGE REFRIGERANT FROM REFRIGERANT SYSTEM (See EVACUATING )
- REMOVE PRESSURE SWITCH
- Disconnect the pressure switch connector.
- Remove the pressure switch from the liquid tube.
HINT:

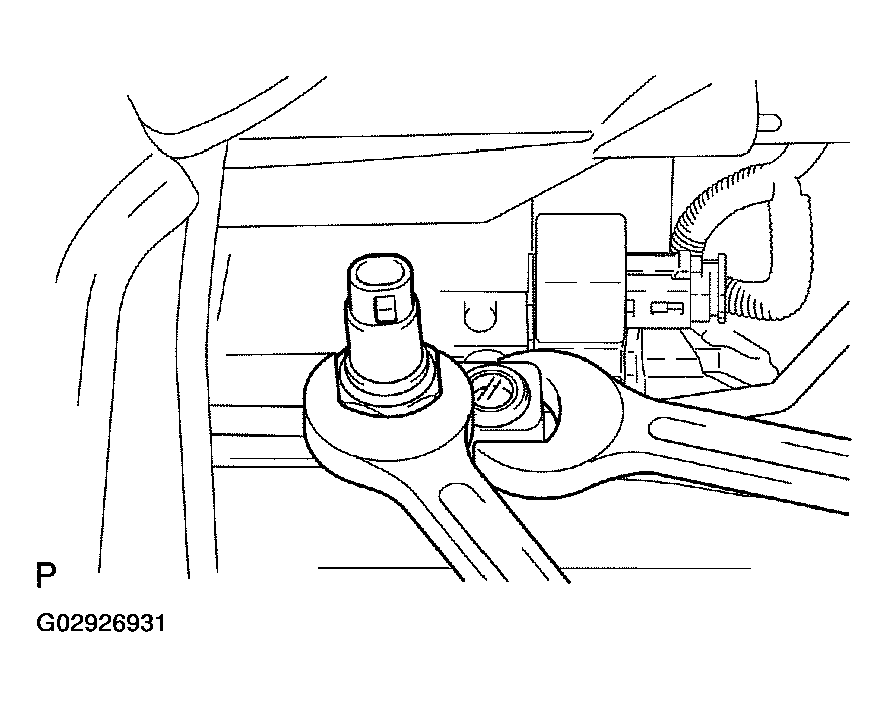

Lock the switch mount on the tube with an open end wrench, being careful not to deform the tube, and remove the switch.
