Diagnostic Trouble Code Chart

WARNING: This page is about a different car, the 2004 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

If a malfunction code is displayed during the DTC check, check the circuit listed by code.

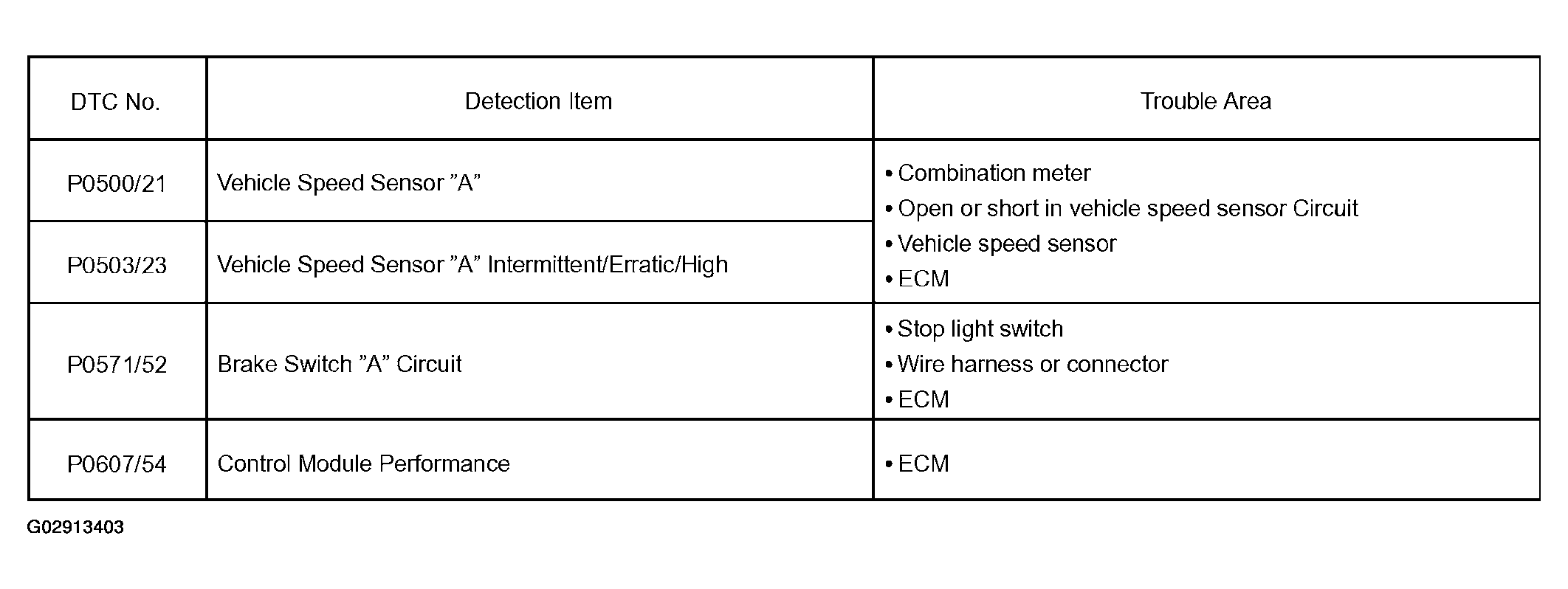

Fig 1: Diagnostic Trouble Code Chart
