How To Proceed With Troubleshooting

WARNING: This page is about a different car, the 2004 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

Troubleshooting in accordance with the procedure on the following pages.

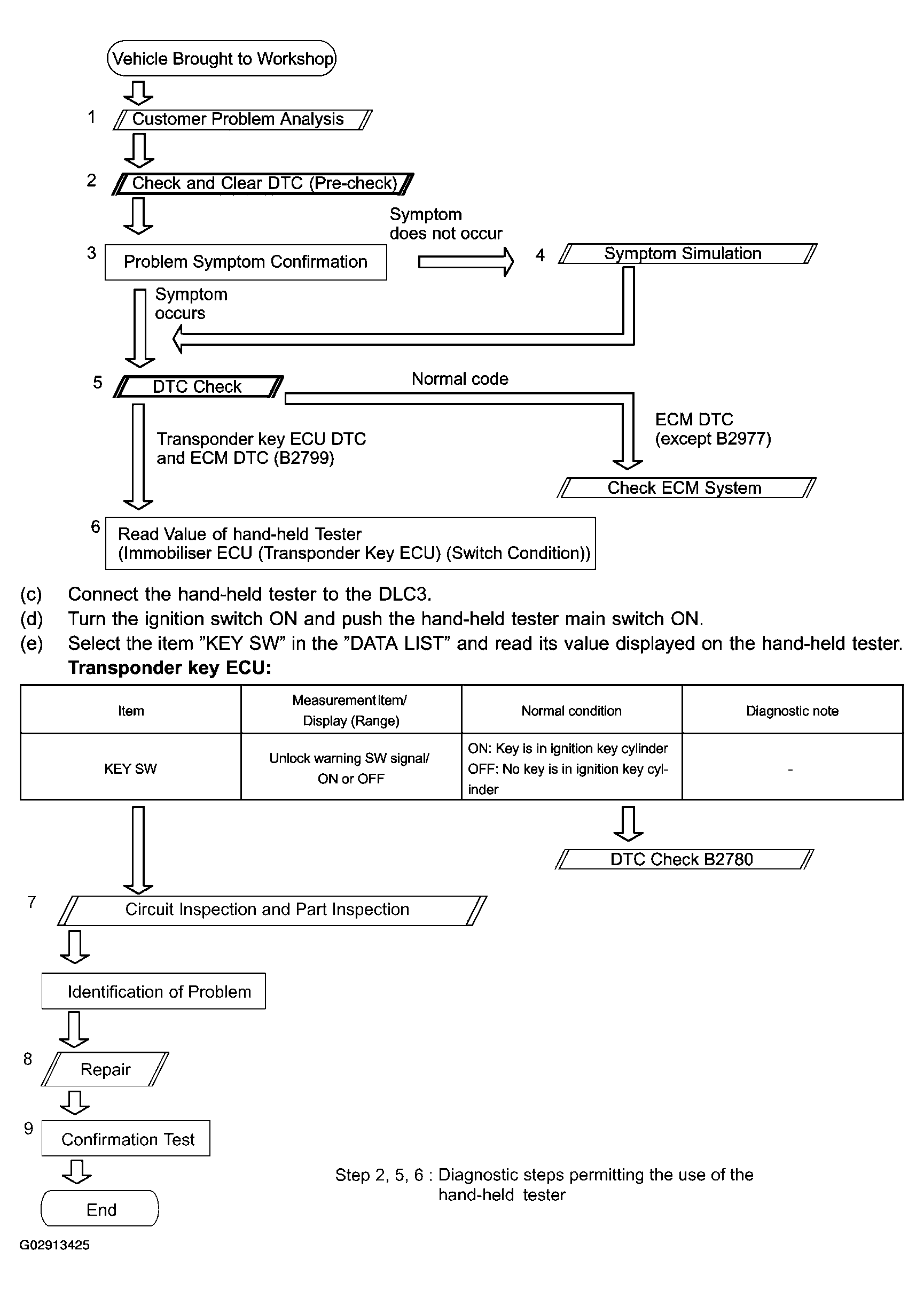

Fig 1: Engine Immobilizer Troubleshooting Flow Chart
