Section 486 (Headlight & Taillight System): Inspection

WARNING: This page is about a different car, the 2004 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT LIGHT CONTROL SWITCH CONTINUITY

Fig 1: Light Control Switch Continuity Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the continuity is not as specified, replace the switch.

INSPECT HEADLIGHT DIMMER SWITCH CONTINUITY

HEADLIGHT DIMMER SWITCH CONTINUITY

Switch Position	Tester Connection	Specified Condition
LO beam	8 - 11	Continuity
HI beam	9 - 11	Continuity
Flash	9 - 11	Continuity

If the continuity is not as specified, replace the switch.

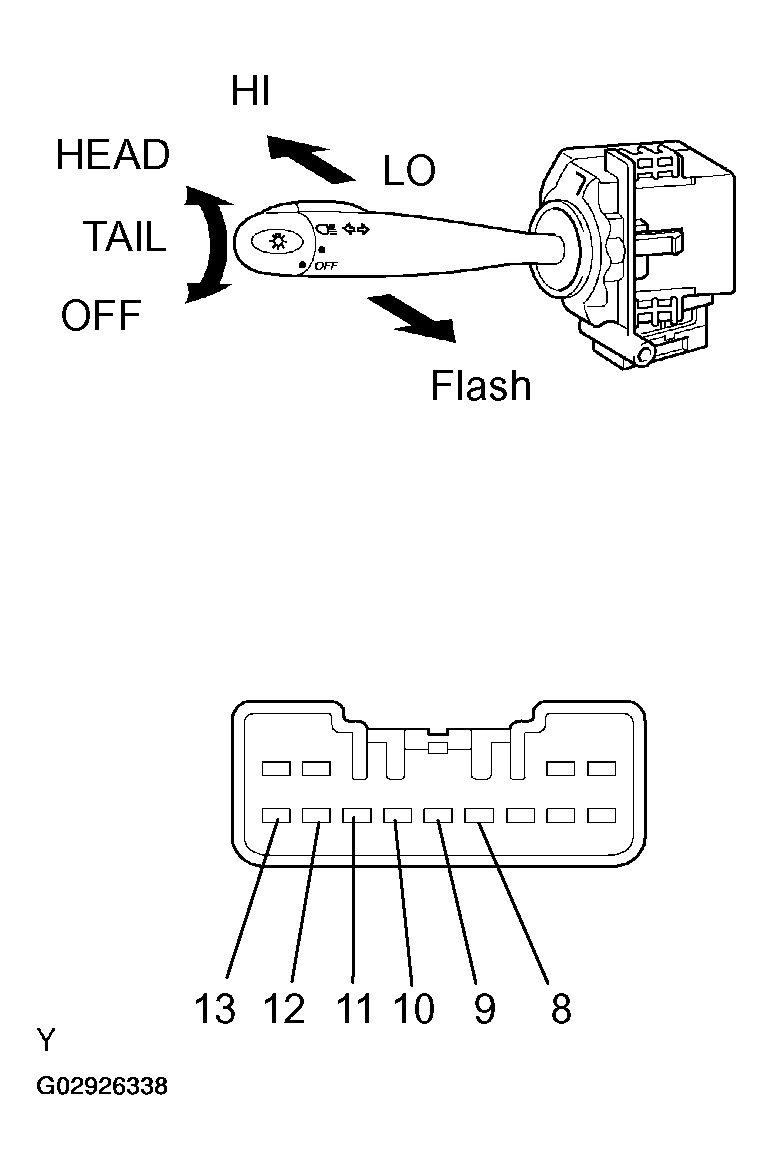

Fig 2: Identifying Light Control Switch & Headlight Dimmer Switch Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

W/o Daytime Running Light Relay : INSPECT HEADLIGHT CONTROL RELAY (Marking: H-LP) CONTINUITY

HEADLIGHT CONTROL RELAY CONTINUITY

Tester Connection	Specified Condition
3 - 5	No continuity
3 - 5	Continuity (When battery voltage is applied to terminals 1 and 2)

If the continuity is not as specified, replace the relay.

Fig 3: Identifying Headlight Control Relay
