Ignition Timing: Inspection

WARNING: This page is about a different car, the 2004 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

WARM UP ENGINE
Allow the engine to warm up to normal operating temperature.
CHECK IDLE SPEED (See INSPECTION )
CONNECT TIMING LIGHT

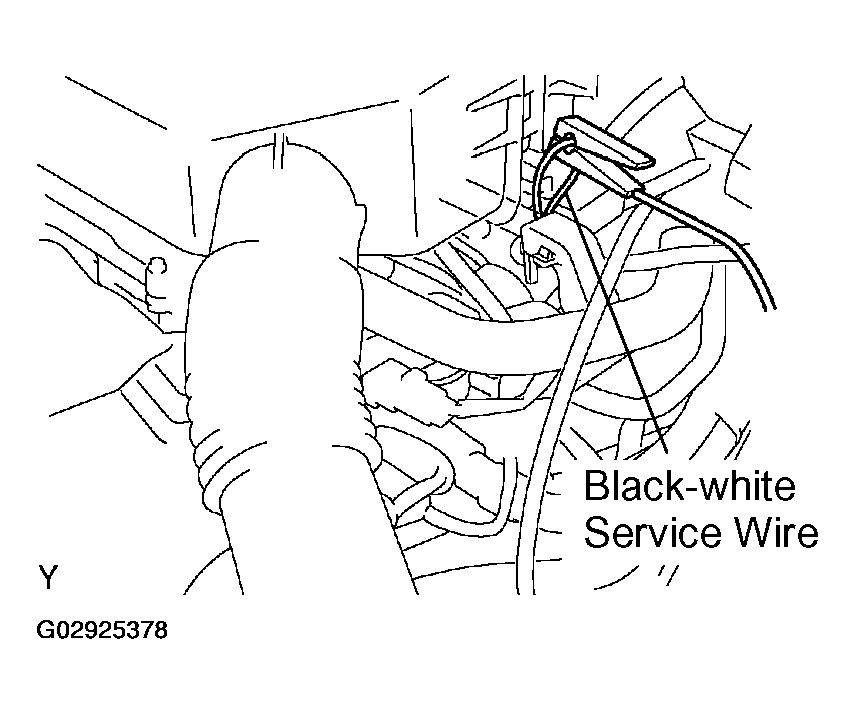

Connect the tester probe of a timing light to the black-white service wire of the engine wire as shown in Fig 1.

Fig 1: Connecting Timing Light
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT IGNITION TIMING

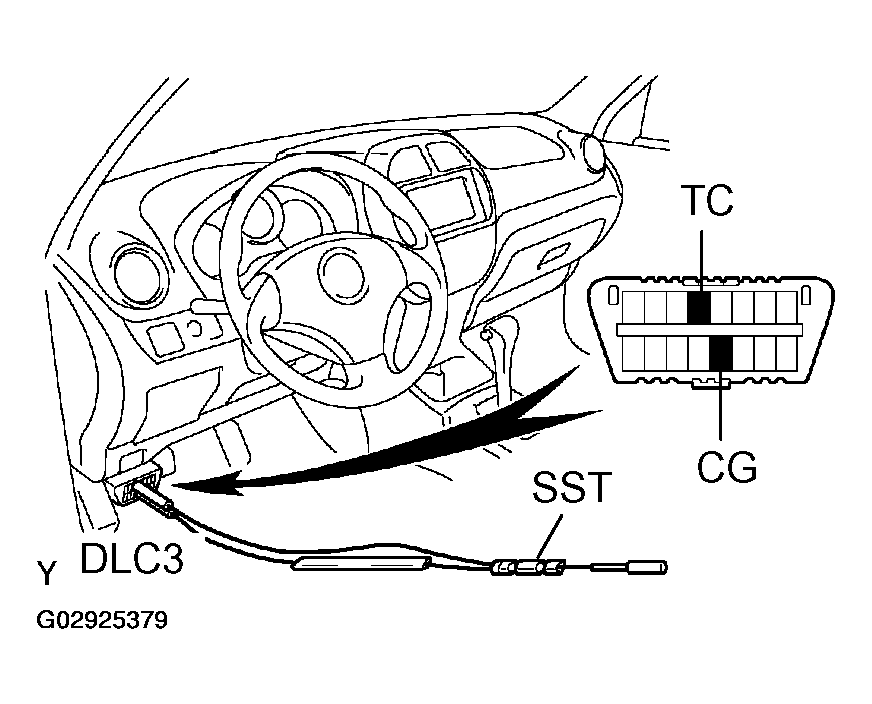

1. Using SST, connect terminals to TC and CG of the DLC3.
  SST 09843-18040

  Fig 2: Connecting Terminals To TC & CG Of DLC3
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  After engine rpm is kept at 900 - 1,500 rpm for 5 seconds, check that it returns to idle speed.

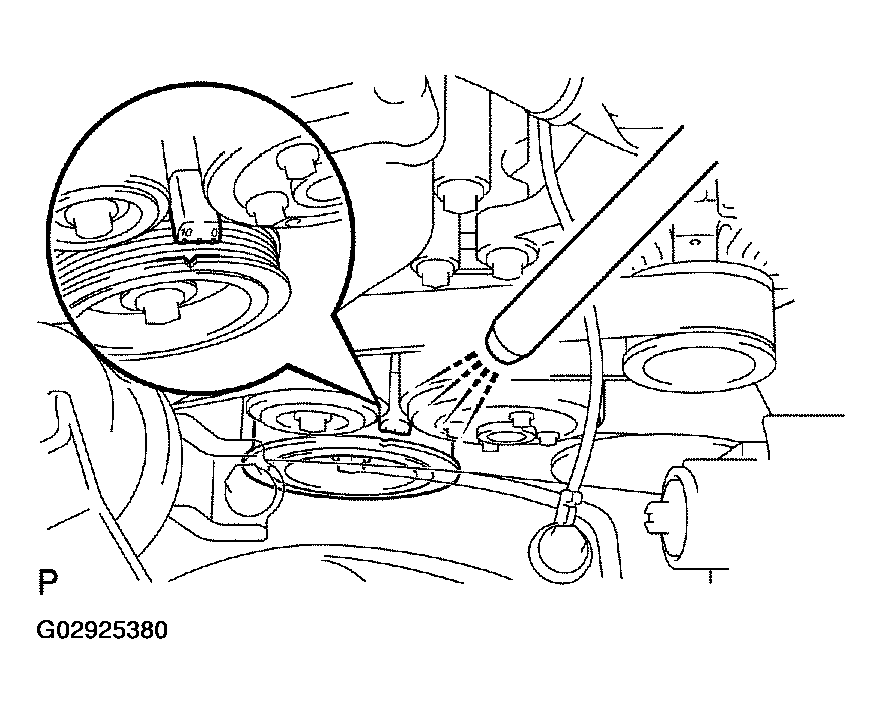

2. Using a timing light, check the ignition timing.
  Ignition timing: 8 to 12° BTDC @ idle
3. Remove the SST from the DLC3.
FURTHER CHECK IGNITION TIMING
Ignition timing: 5 to 15° BTDC @ idle

HINT:

The timing mark moves in a range between 5 and 15°.
DISCONNECT TIMING LIGHT
