Data List/Active Test

WARNING: This page is about a different car, the 2004 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

DATA LIST
1. Connect the hand-held tester to the DLC3.
2. Turn the power switch on (IG) and turn the hand-held tester on.
3. Operate the hand-held tester according to the steps on the display and select "DATA LIST".

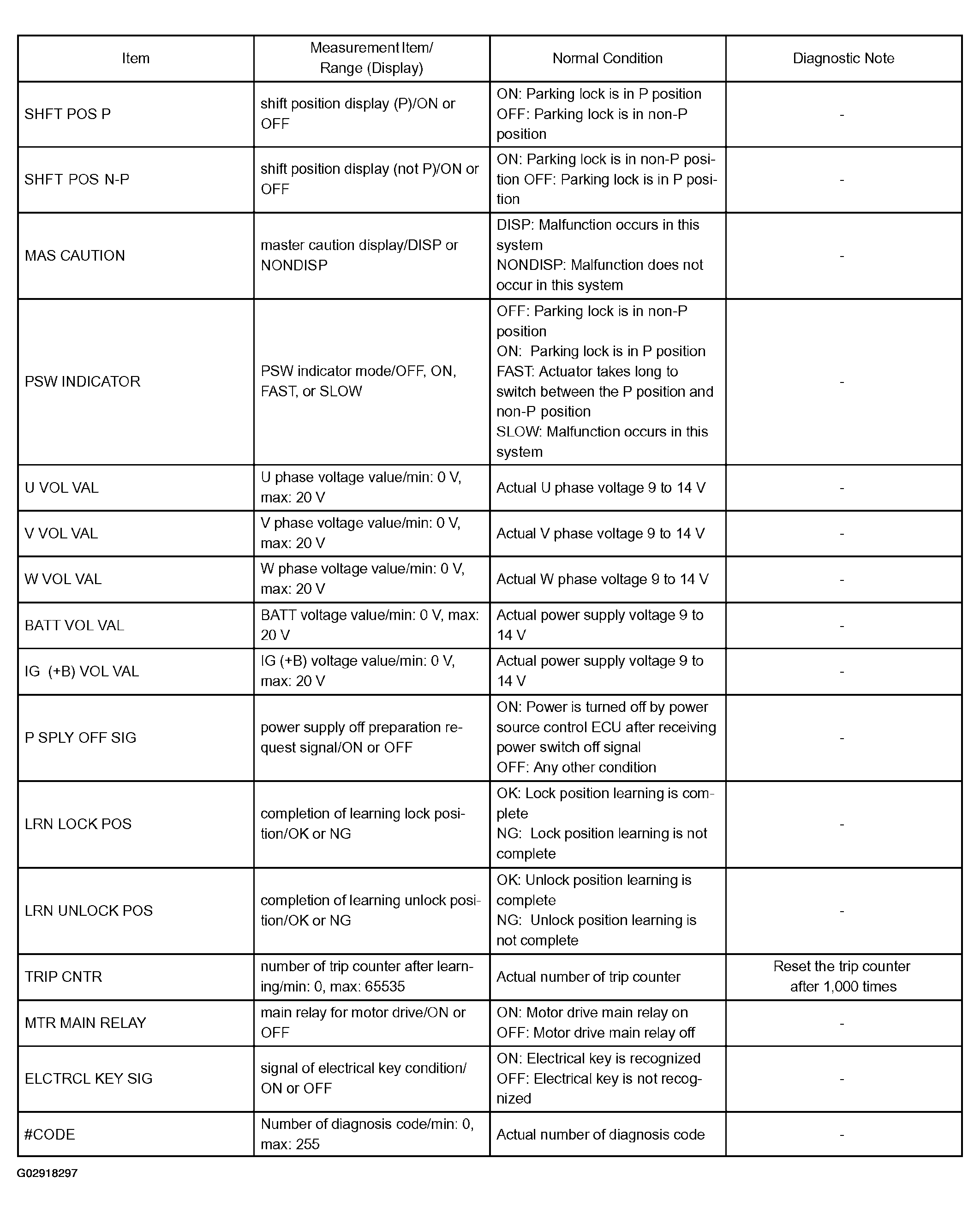

Fig 1: Active Test Data List (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

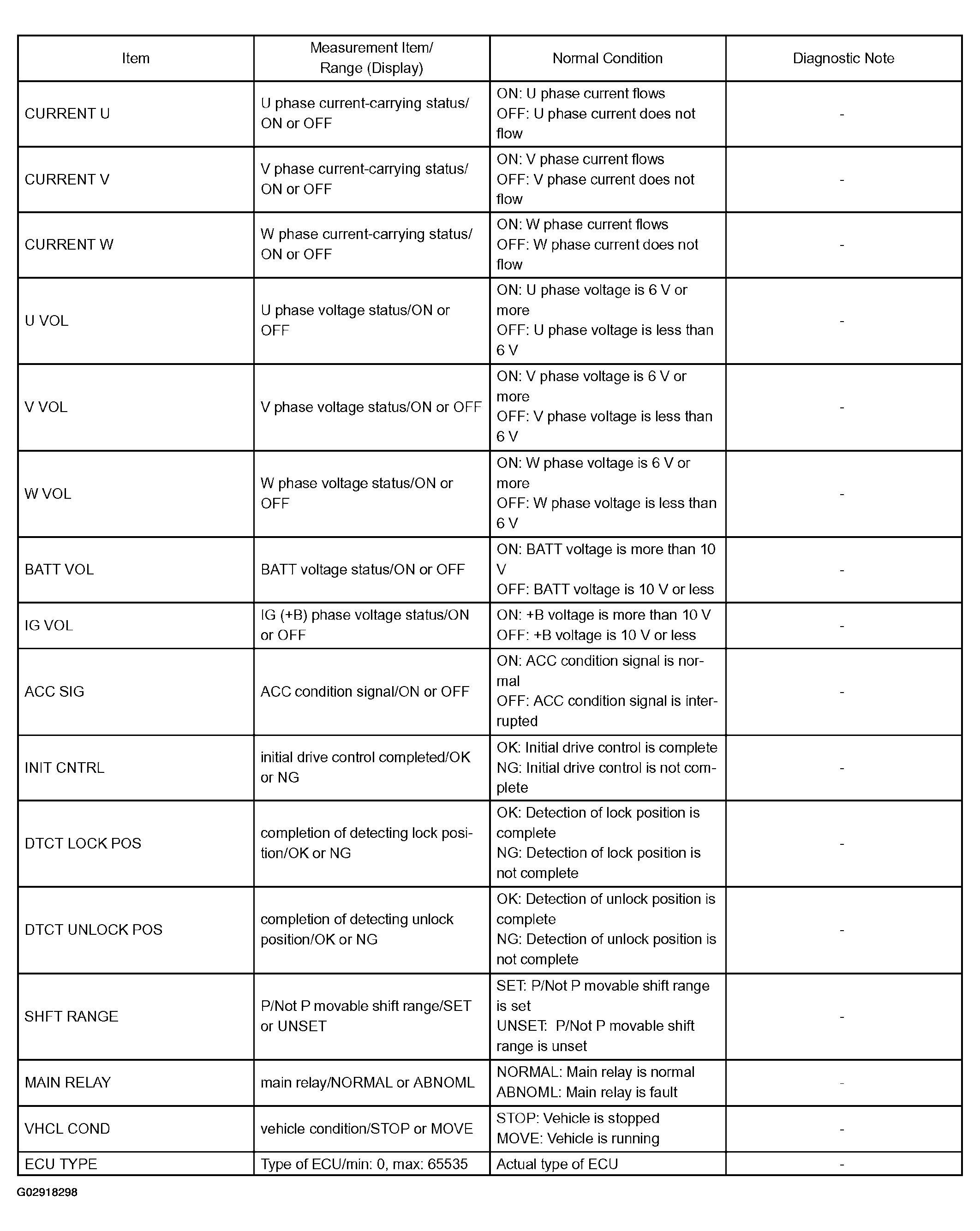

Fig 2: Active Test Data List (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
